Overall connection diagram XCS*-W01xx

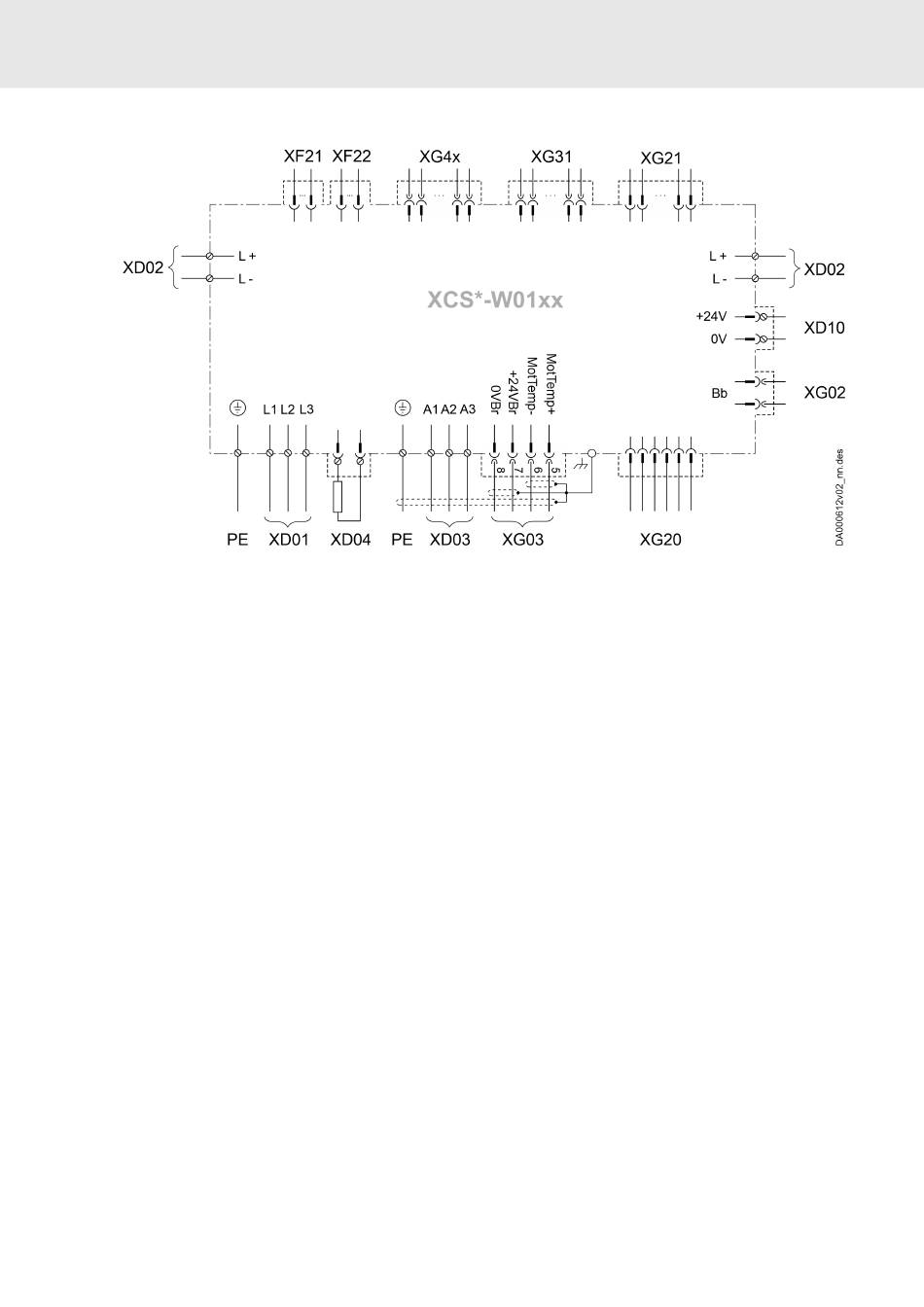

Fig. 43: Overall connection diagram XCS*-W01xx
XD01
Mains
XD02
DC bus
XD03
Motor
XD04
External braking resistor
XD10
Control voltage
XF21, XF22 Communication
XG02
Ready-for-operation relay contact
RE 62312-B, 03.2022
Connecting the Sytronix system SvP 7030 electrically
XG03
XG20
XG21
XG31
XG4x
Sytronix SvP 7030 IMC
Motor temperature monitoring and
motor holding brake
Digital encoder
Multi-encoder (optional)
Digital inputs/outputs; analog input
Safety technology
