Overview of components

● Pressure signal feedback
● Quick configuration of the Rexroth servo motor
● p/Q PID-control
● Restoration of parameters of SvP 7030 IMC
● Extension functions
● Protective function
For the description of the main functions, see functional description RE 62312-
FK
5.3 Overview of components

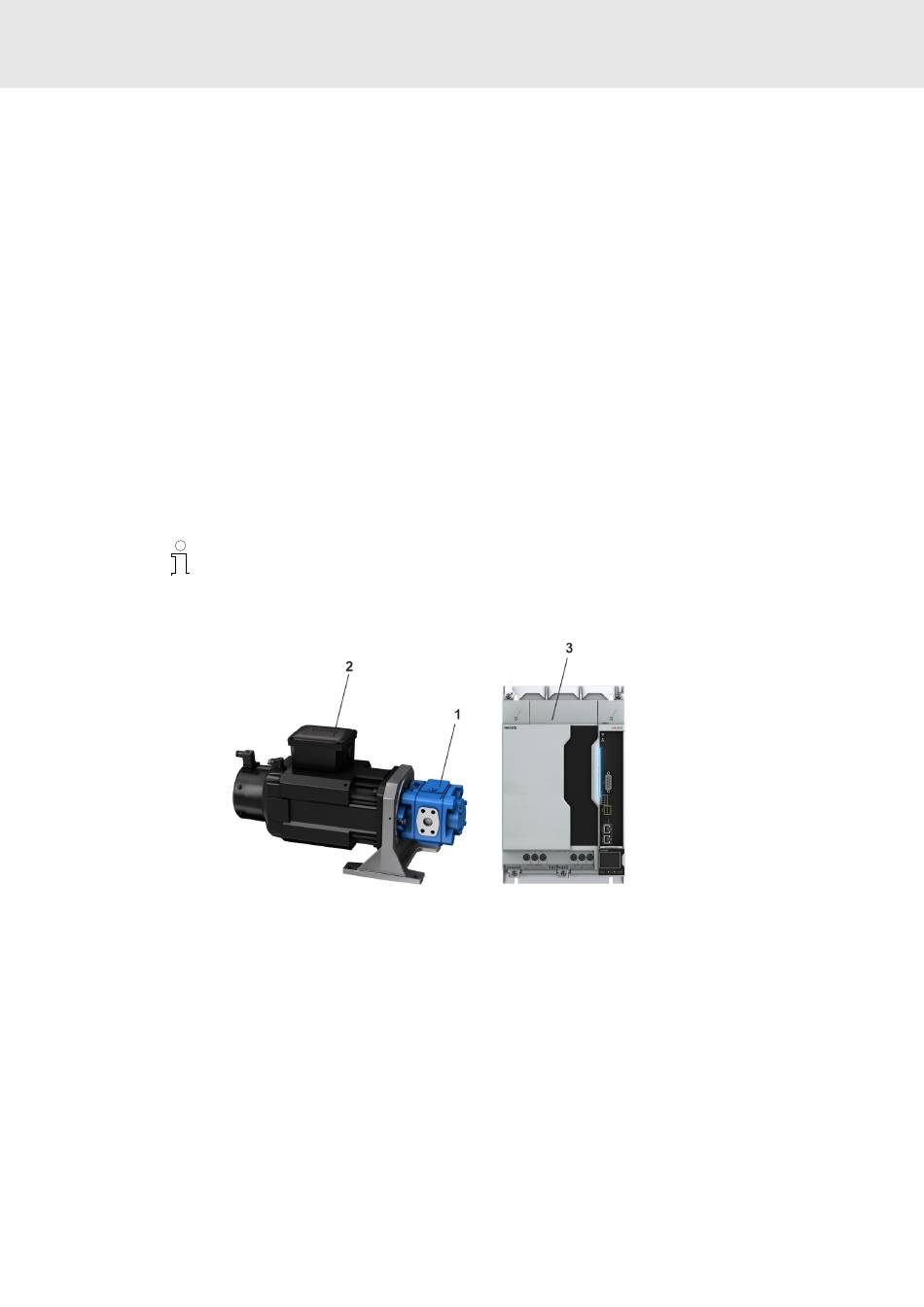

Fig. 2: SvP 7030 IMC system components
1 Pump (internal gear pump type PGH (see data sheet RE 10227) or PGM (see
2 Synchronous servo motor (M2SN with self-cooling, external venting or water
3 Drive controller ctrlX DRIVE (see R911386579 Project Planning Manual)
Bosch Rexroth AG
– Compatible with different types of pressure transducers (flexible
weighting of the analog input signal for voltage and current sensors)
– High immunity to electromagnetic interference (using the high-precision
digital filter for signal filtering
– Quick configuration of the Rexroth pressure transducer HM20
– p/Q control with automatic switching between pressure and flow control
– With four switchable parameter sets
– Master/slave operation
– Pump power limitation
– Leakage compensation
– Error monitoring of pressure feedback
– Actual pressure monitoring
– Command value limitation of maximum pressure/flow
– Command value limitation of minimum pressure/flow
data sheet RE 20135) or axial piston pump type A10FZO (see data sheet RE
91485)
cooling) see Project Planning Manual R911347583)
