Depending on the power consumption of the devices and the current carrying
capacity of the connector, check the number of devices through which one line
for 24 V supply can be looped through. You might possibly have to connect
another device directly to the 24 V supply and then loop through the control
voltage from this device to other devices.

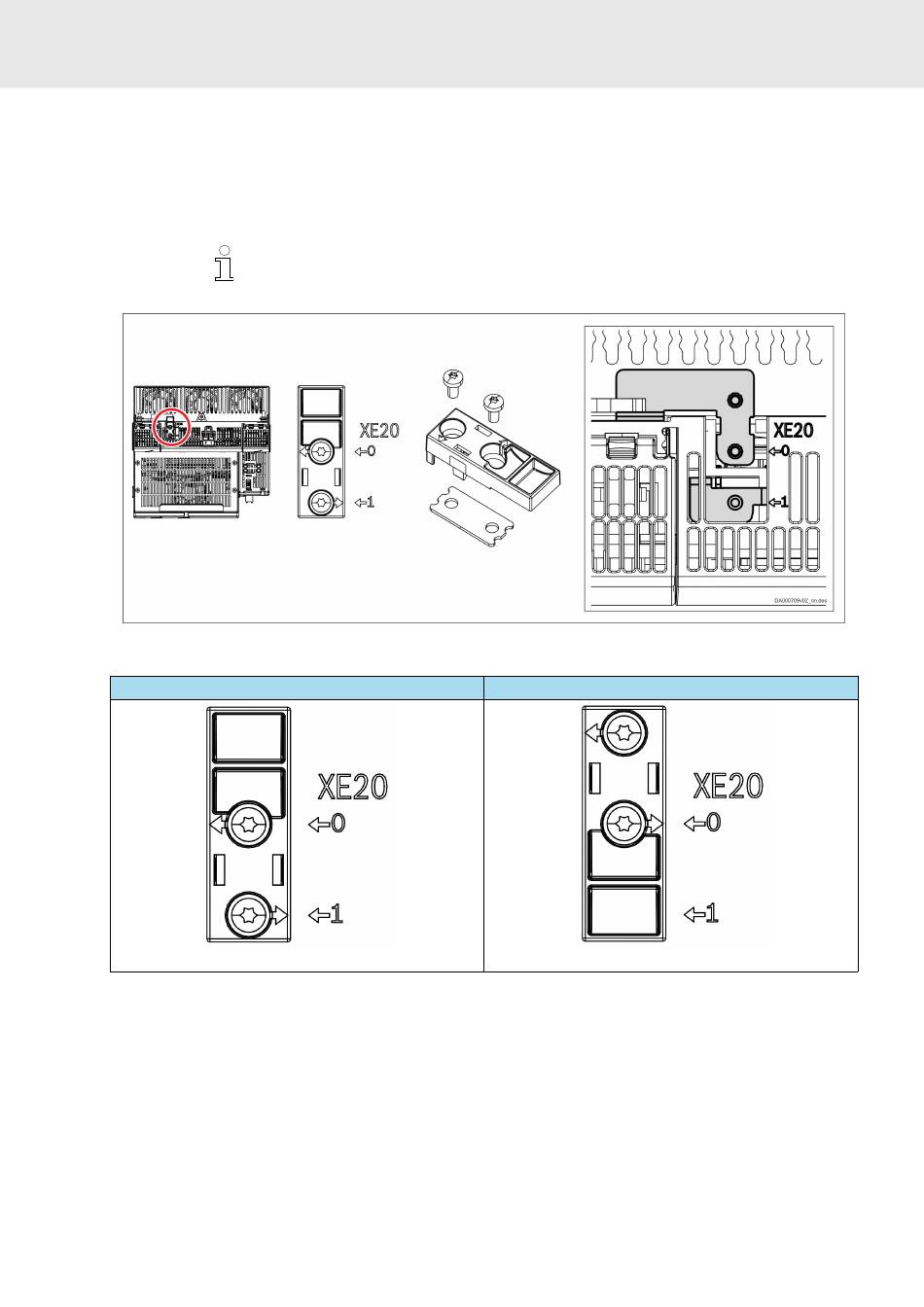

XE20, Y capacitor ground connection
Leave XE20 in its condition as supplied until Rexroth has given you approval for
using it.
Fig. 53: XE20, Y capacitor ground connection
With ground connection
Condition as supplied
XF21 P1, XF22 P2, communication (RJ-45)
Description
The connection point complies with IEEE 802.3 standard.
P1, P2
P1 means port 1 and P2 means port 2 etc.. Thus, the error counter of the
firmware can be directly assigned to a port.
RE 62312-B, 03.2022
Connecting the Sytronix system SvP 7030 electrically
Without ground connection
