Connecting the Sytronix system SvP 7030 electrically
Touch guard

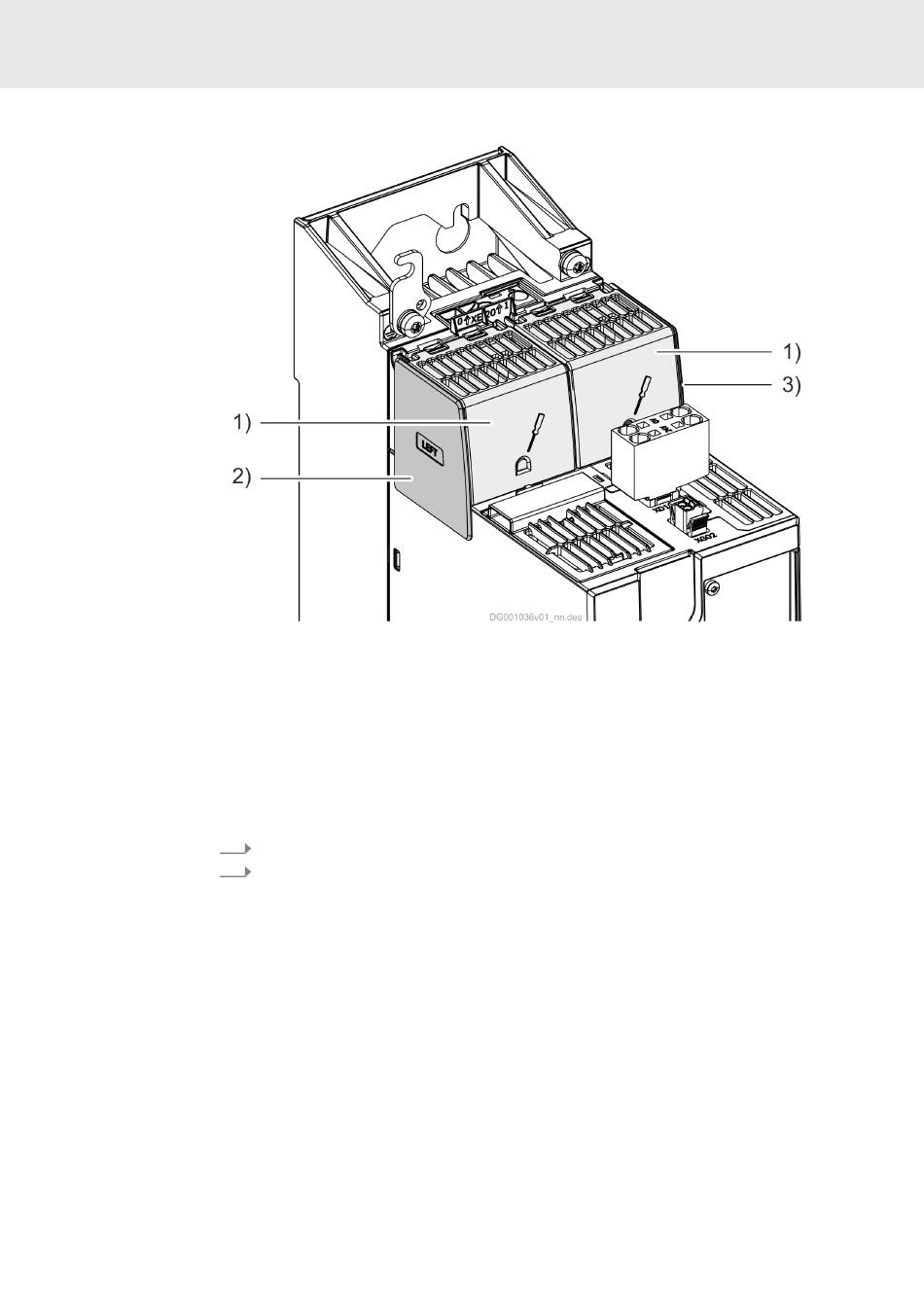

Fig. 51: Touch guard
1) Touch guard flap
2) Touch guard plate (LEFT; R911400453)
3) Touch guard plate (RIGHT; R911400452)
As a standard, the devices are supplied with a touch guard.
The touch guard plate may only be removed to connect the DC buses of neigh-
boring devices.
Dismounting the touch guard
1.
2.
Bosch Rexroth AG
Unlock and open the touch guard flap.
Move the touch guard plate vertically upwards and remove it.
RE 62312-B, 03.2022
