Connecting the Sytronix system SvP 7030 electrically

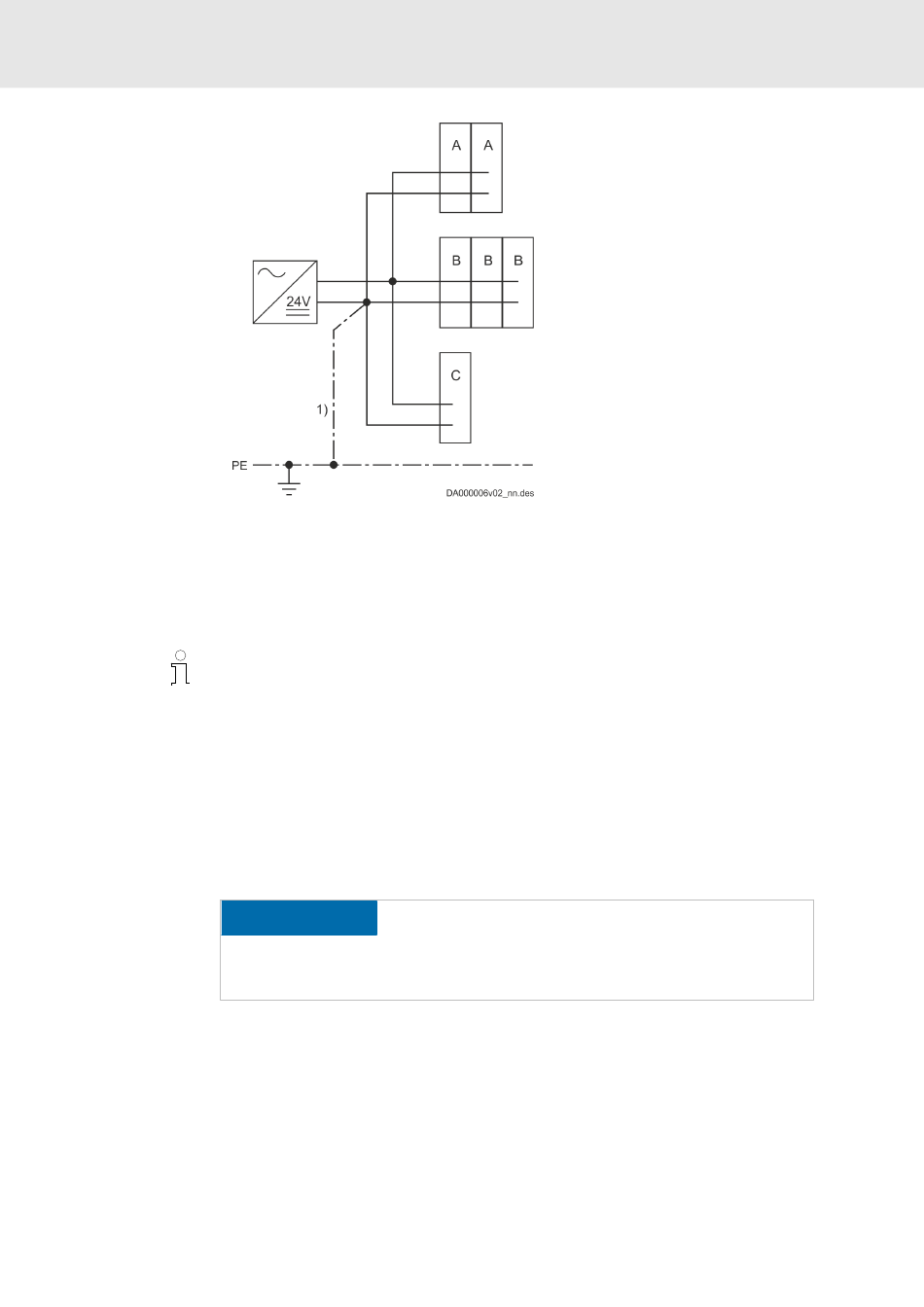

Fig. 37: Installing the 24 V supply
A Number of devices is limited to x components with a total current consump-
B Number of devices is limited to y components with a total current consump-
C Third-party component (e.g., PLC, valve etc.)
1) Connection to central ground point (e.g., equipotential bonding bar PE)
If you use multiple 24 V power supply units:
−
−
−
Chronological order of 24 V supply and mains voltage
Before mains voltage or DC bus voltage is applied to the components, they
have to be supplied by the 24 V supply.
Looping through the control voltage
You are only allowed to loop through the control voltage between the compo-
nents, if the sum of current consumptions ΣI
smaller than the current carrying capacity of the connection point.
Bosch Rexroth AG
tion smaller than the current carrying capacity of the connection point
tion smaller than the current carrying capacity of the connection point
Output voltages of the 24 V power supply units have to be within the
allowed voltage range
Interconnect 0 V reference conductors of the individual 24 V power supply
units with low impedance
Always switch 24V power supply units on and off synchronously
Property damage in case of error from line cross section
NOTICE
being too small!
Observe the current carrying capacity of the connection
points for control voltage supply at the components
used.
of the individual components is
N3
