Sytronix SvP 7030 IMC
46 / 186
Mechanical installation of the motor-pump unit
Notes for a good suction line design
Keep the following distance for mounting the suction line in the tank.

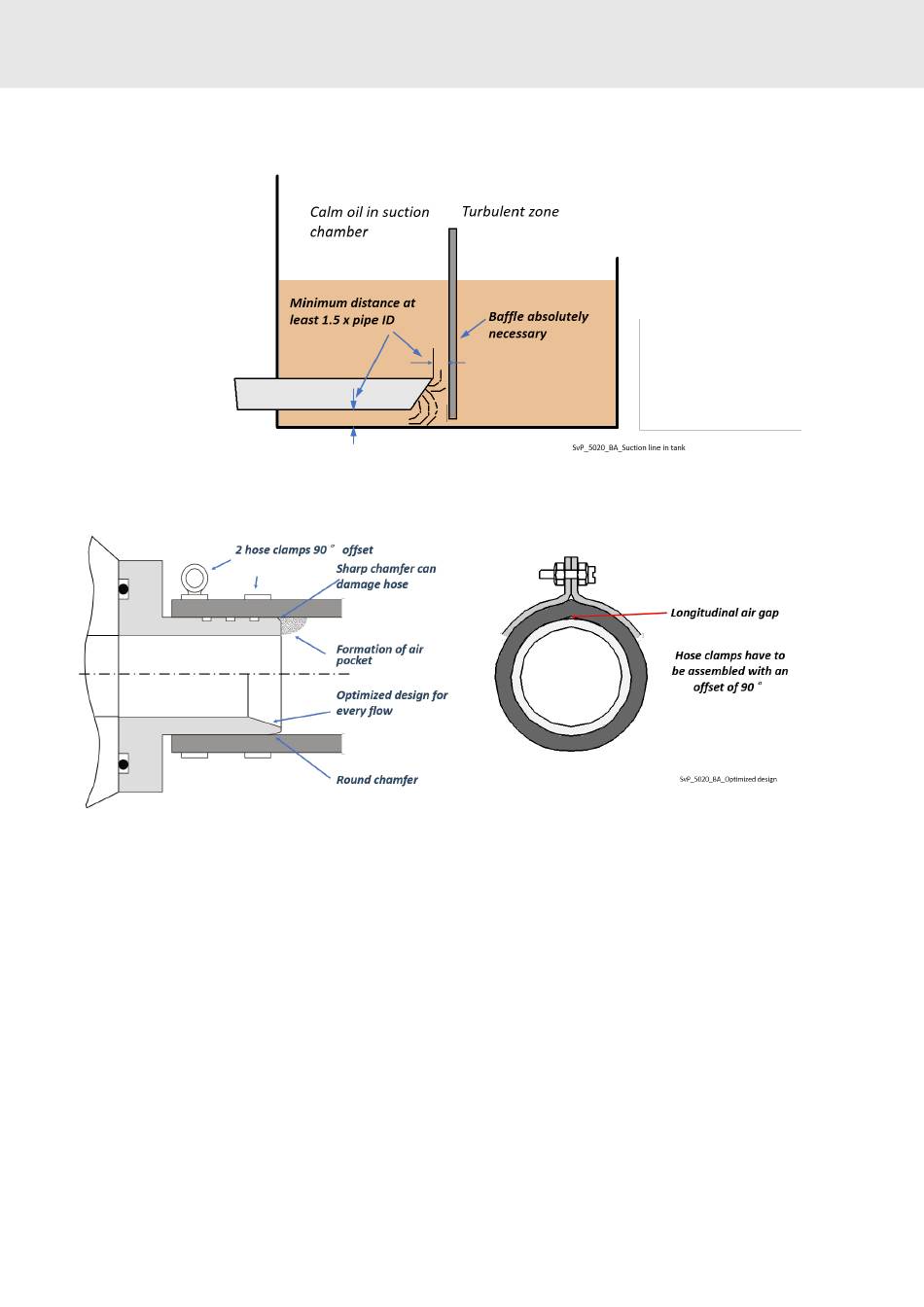

Fig. 14: Suction line in the tank
The following figure shows an optimum connection in detail:
Fig. 15: Optimized design
The following figure illustrates the perfect condition for the laminar flow
Bosch Rexroth AG
RE 62312-B, 03.2022
