Connection diagram

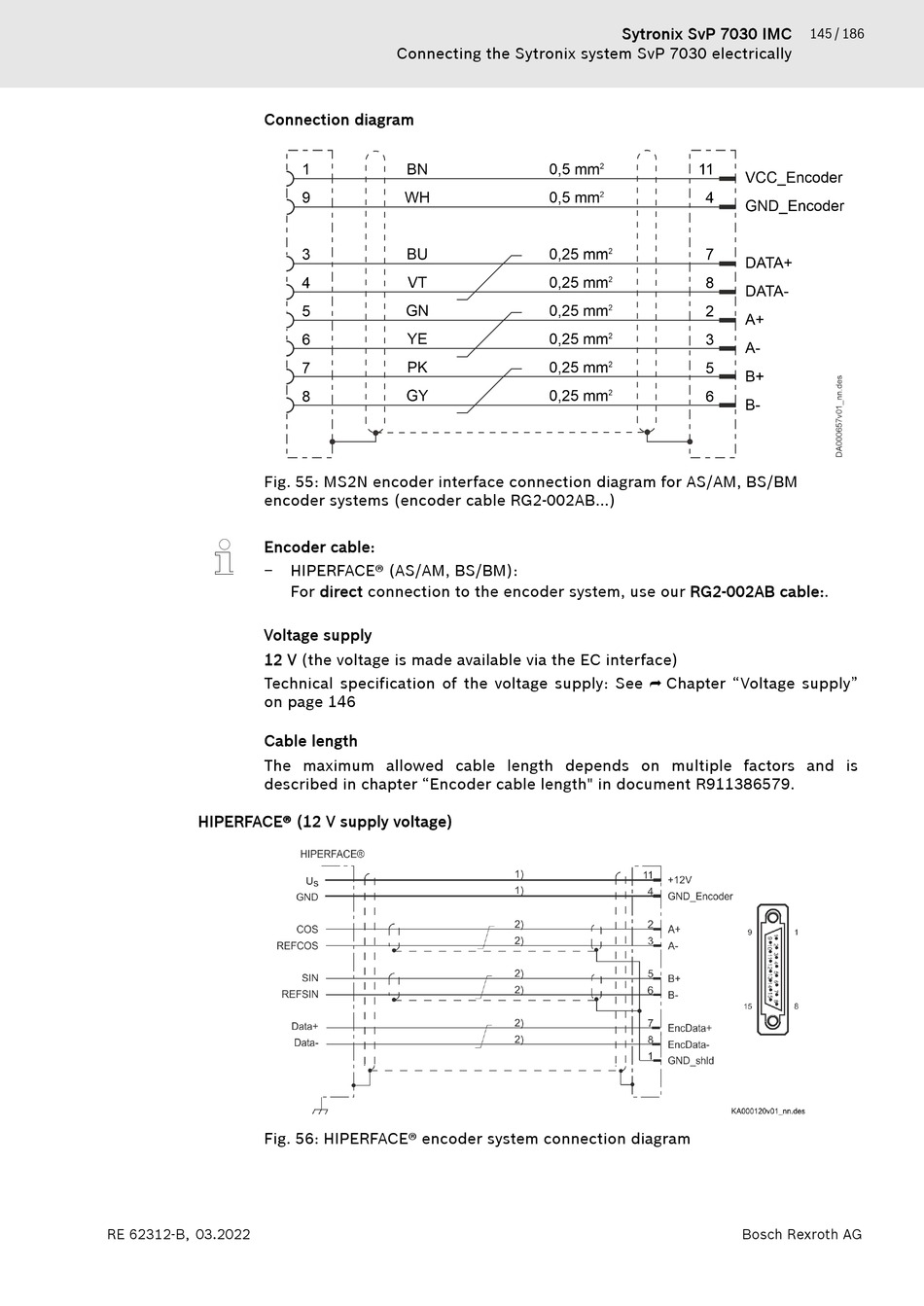

Fig. 55: MS2N encoder interface connection diagram for AS/AM, BS/BM
encoder systems (encoder cable RG2-002AB...)
Encoder cable:
−
Voltage supply
12 V (the voltage is made available via the EC interface)
Technical specification of the voltage supply: See ⮫ Chapter "Voltage supply"
on page 146
Cable length
The maximum allowed cable length depends on multiple factors and is
described in chapter "Encoder cable length" in document R911386579.
HIPERFACE® (12 V supply voltage)
Fig. 56: HIPERFACE® encoder system connection diagram
