Sytronix SvP 7030 IMC
142 / 186
Connecting the Sytronix system SvP 7030 electrically
Motor holding brake: Installation instructions
Ensure a sufficient power supply of the motor holding brake at the motor.
Observe that voltage drops on the supply line. Use connection lines with the
largest possible cross section of single strands.
Use an external contact element in accordance with the required safety cate-
gory if you wish to supply motor holding brakes with higher currents than
the current load allowed at the connection point.. Make sure to comply with
the required minimum current consumption of 100 mA when using an external
contact element. Otherwise, the brake current monitoring function will signal
an error.

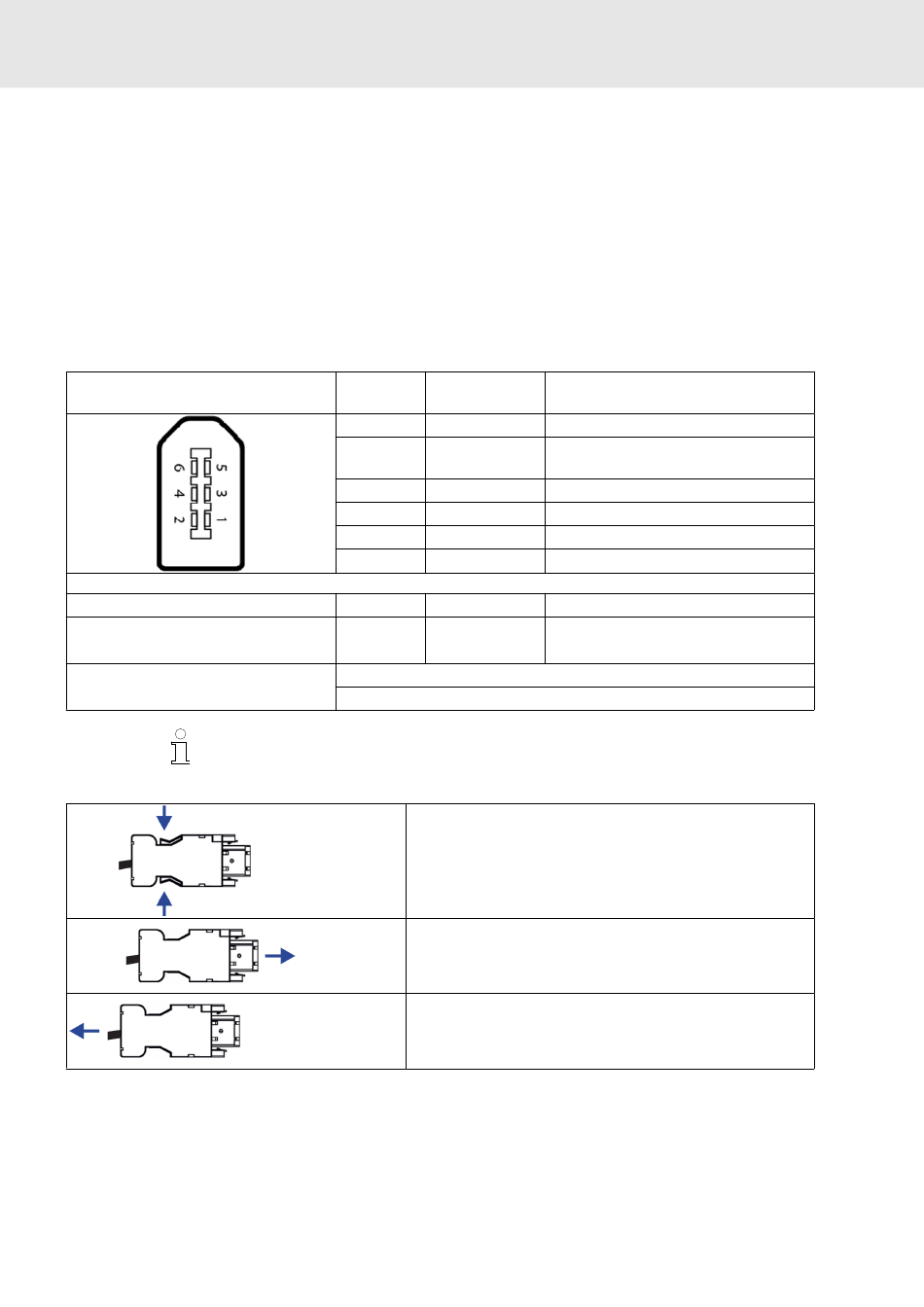

XG20, digital motor encoder connection
Table 111: XG20, digital motor encoder
View
Properties
Connection cable
stranded wire
Type of encoder evaluation
Connectors/cables not included in scope of delivery.
Table 112: Disconnecting the plug connection:
Encoder connection with hybrid cables
Hybrid cables (e.g., RHB2-021DDB) connect the drive controller to the motor
(XZ03) and encoder (XG20).
Bosch Rexroth AG
Connec- Signal name
tion
1 n.c.
2 GND_Enc
3 +12V_Enc
4 n.c.
5 Enc_Data+
6 Enc_Data-
Unit min.
mm 0.25
2
ctrlX SENSEmotor
Press the pressure keys at the sides of the connector
and keep them pressed.
Push the connector in the plug-in direction.
Unplug the connector.
Function
-
Reference potential for power sup-
plies
12 V encoder supply
-
Data transmission positive
Data transmission negative
max.
0.5
ACURO®link
