Cable
Connection
2 ×
with wire end ferrule
(without plastic collar)

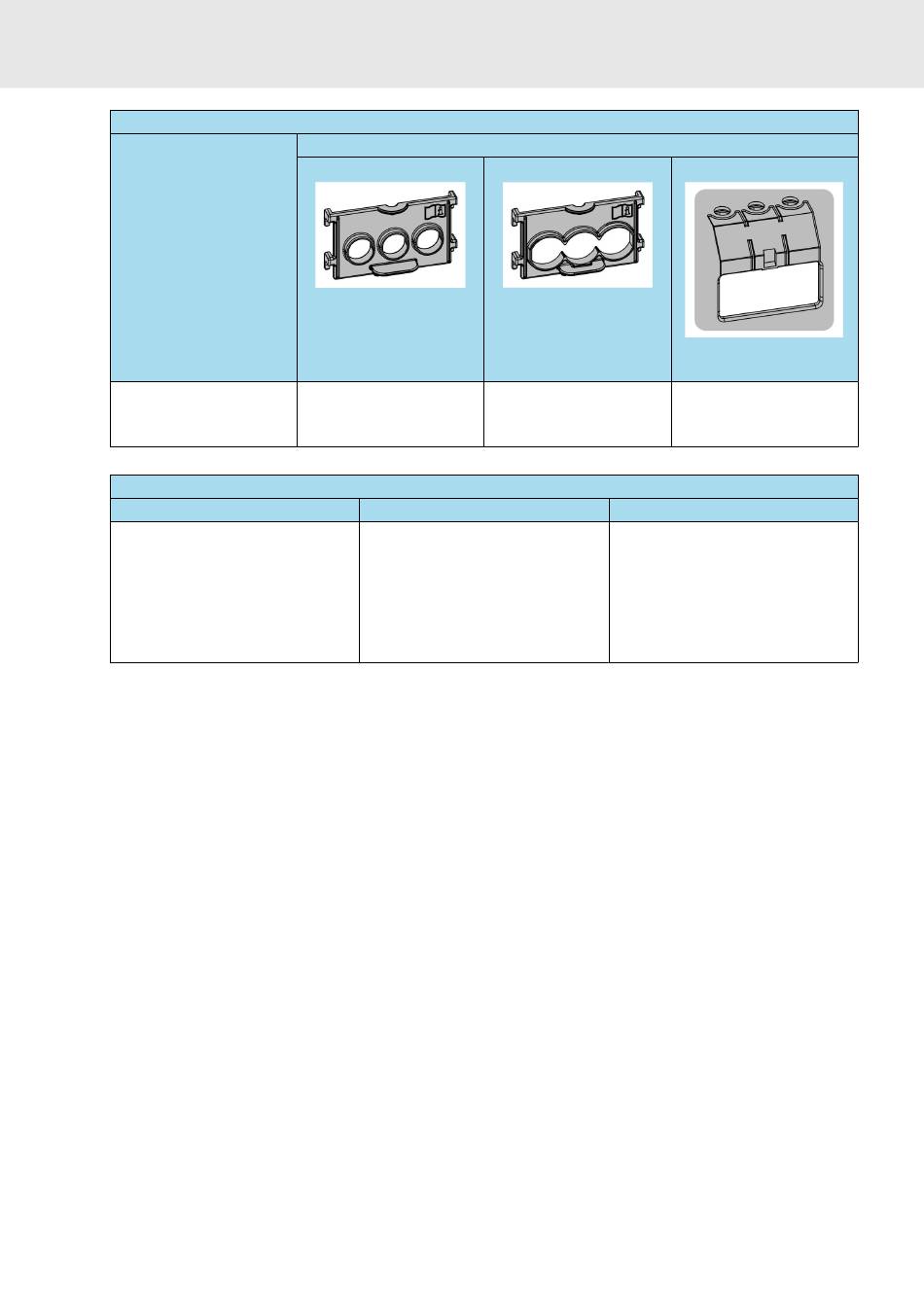

Opening width 10.8×11.8 alright Opening width ∅15.5 required
Leave cable feedthrough at the
device and remove the unnec-
essary part of the cable feed-
through (e.g., using diagonal
cutters).
RE 62312-B, 03.2022
Connecting the Sytronix system SvP 7030 electrically
Use
Opening width [mm]
10.8×11.8
1.5 ... 4 mm²
AWG16 ... 12
Instructions for mounting
● Dismount cable feedthrough
(dismounting: see below).
● Remove unnecessary part of
the cable feedthrough (e.g.,
using diagonal cutters).
● Mount cable feedthrough
with ∅15,5 opening width.
Sytronix SvP 7030 IMC
∅15.5
44.1×21.4
Device (cable feed-
through dismounted)
-
No cable feedthrough required
Dismount cable feedthrough
(dismounting: see below).
