ctrlX DRIVE single-axis

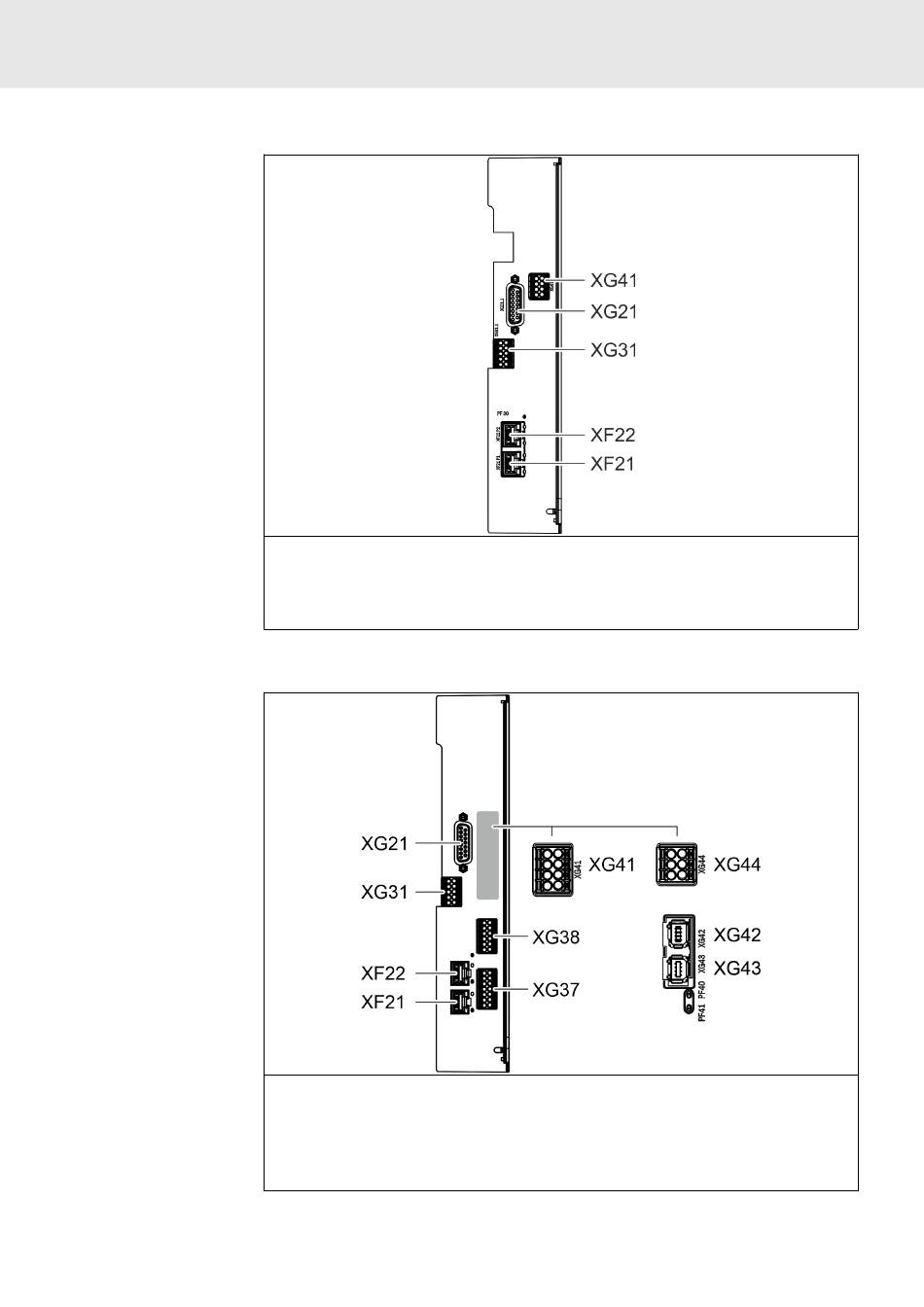

Table 90: Connection points
XG21: Multi-encoder
XG31: Digital inputs/outputs, analog inputs
XG41: Safety technology (Safe Torque Off)
XF21, XF22: Communication
ctrlX DRIVEplus single-axis
Table 91: Connection points
XG21: Multi-encoder; optional
XG31: Digital inputs/outputs, analog inputs
XG41: Safety technology (Safe Torque Off); optional
XG42, XG43, XG44: Safety technology (SafeMotion M5); optional
XF21, XF22: Communication
RE 62312-B, 03.2022
