Sytronix SvP 7030 IMC
48 / 186
Mechanical installation of the motor-pump unit
Noise reduction
Flexible mounting reduces vibration and noise.

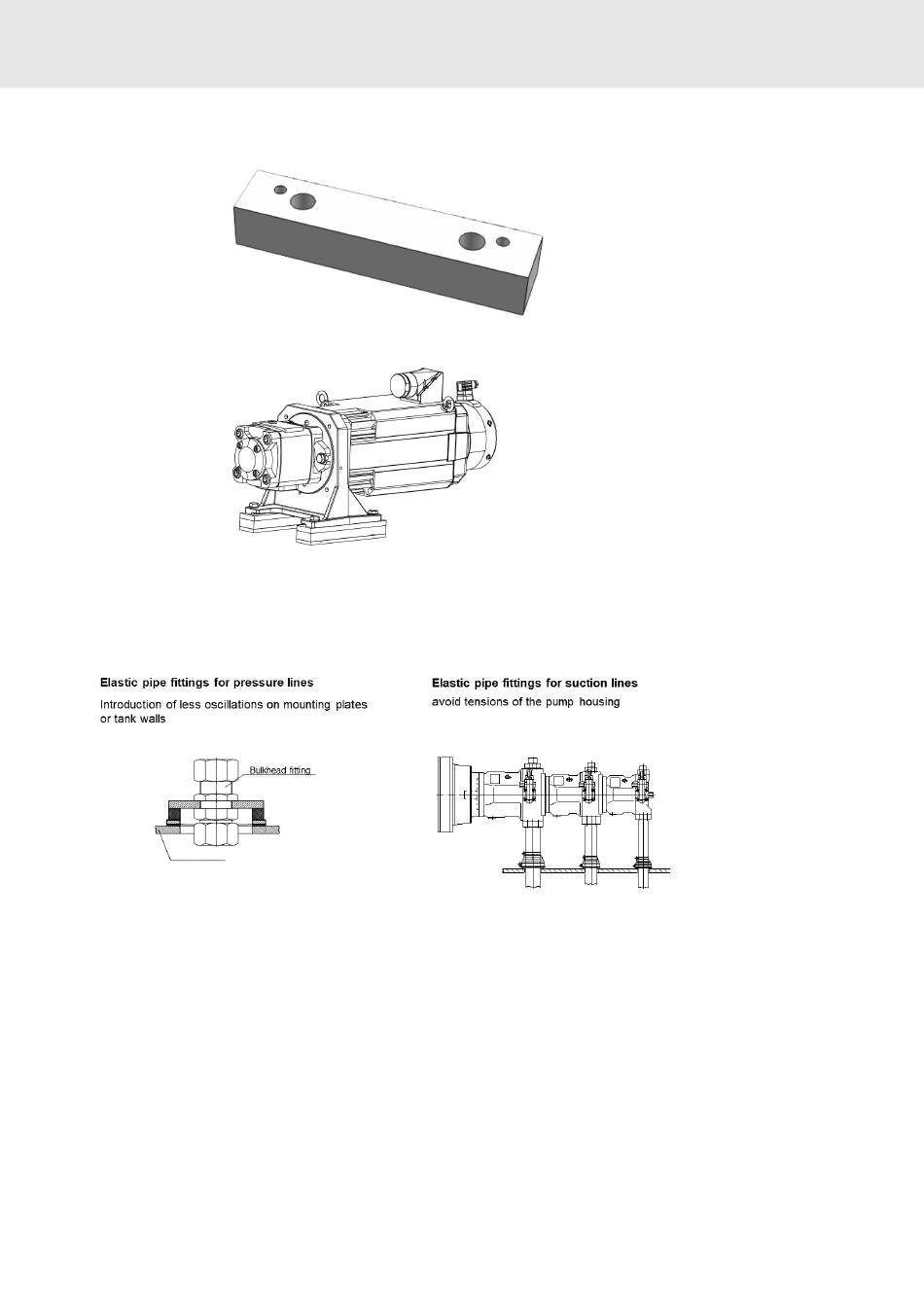

Fig. 18: Damping rail
Fig. 19: Damping rail in the mounted condition
Fig. 20: Elastic pipe fittings
Bosch Rexroth AG
RE 62312-B, 03.2022
