Mechanical installation of the motor-pump unit
Piping conditions
Improperly installed suction line in the tank
Poor aspiration conditions may lead to abnormal noise as well as excessive
wear due to cavitation.

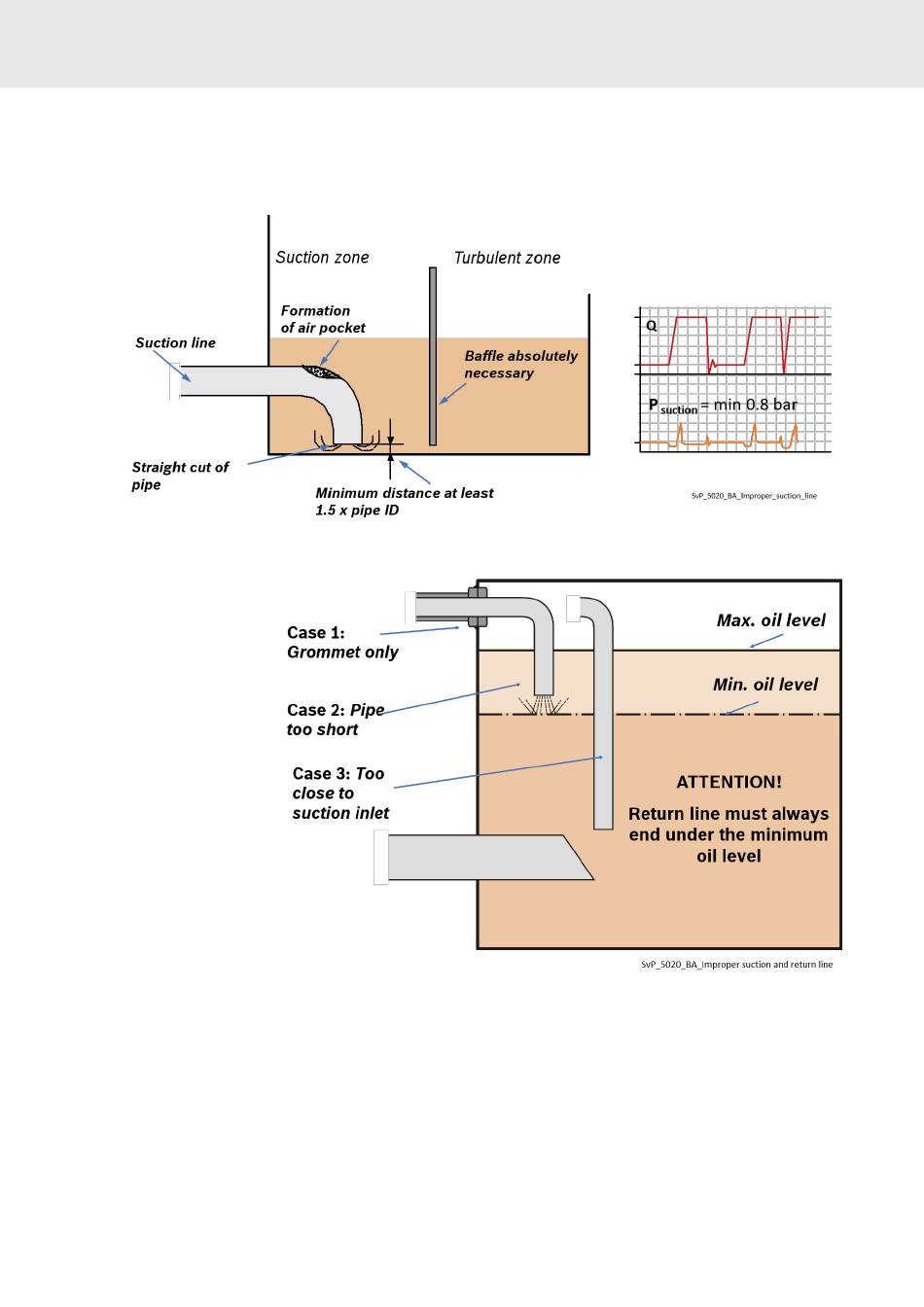

Fig. 8: Improperly installed suction line
Fig. 9: Improperly laid suction and return line
To minimize risk due to air pockets you should do without long, horizontally
installed suction lines.
