INVT Goodrive100 Series Instruction Manual page 74

Goodrive100 inverters
Function
Name
code
Switch filter
P05.11
time
Virtual
P05.12 terminals
setting
Terminals
P05.13 control running
mode
Detailed instruction of parameters
The setting range:0x000~0x1FF
Set the sample filter time of S1~S4 and HDI terminals. If the
interference is strong, increase the parameter to avoid the
disoperation.
0.000~1.000s
Enable the input function of virtual terminals at the
communication mode.
0:Virtual terminals is invalid
1:MODBUS communication virtual terminals are valid
2:Reserved

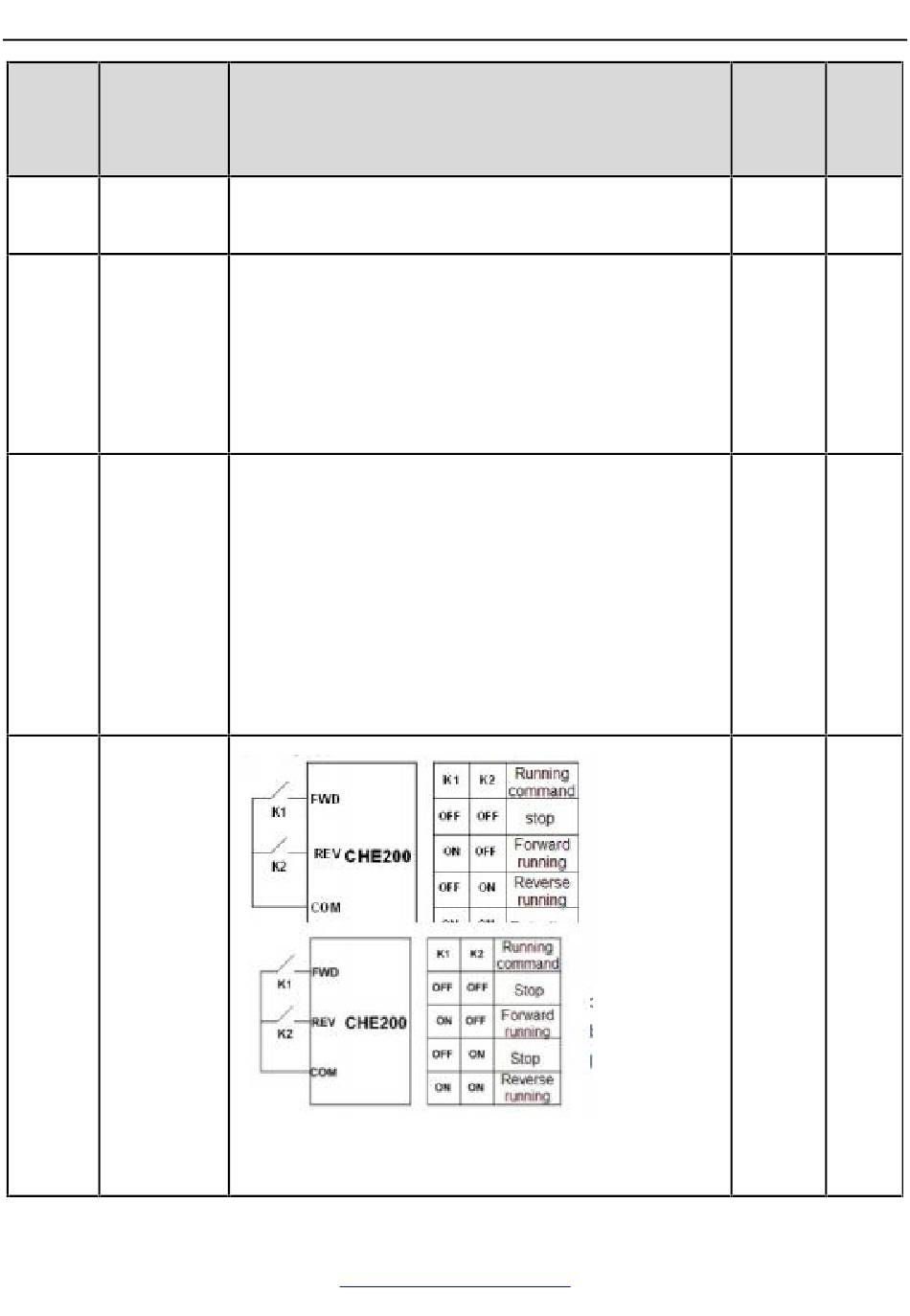

Set the operation mode of the terminals control
0:2-wire control 1, comply the enable with the direction. This
mode is widely used. It determines the rotation direction by
the defined FWD and REV terminals command.
1:2-wire control 2；Separate the enable from the direction.
FWD defined by this mode is the enabling ones. The
direction depends on the state of the defined REV.
2:3-wire control 1; Sin is the enabling terminal on this mode,
and the running command is caused by FWD and the
