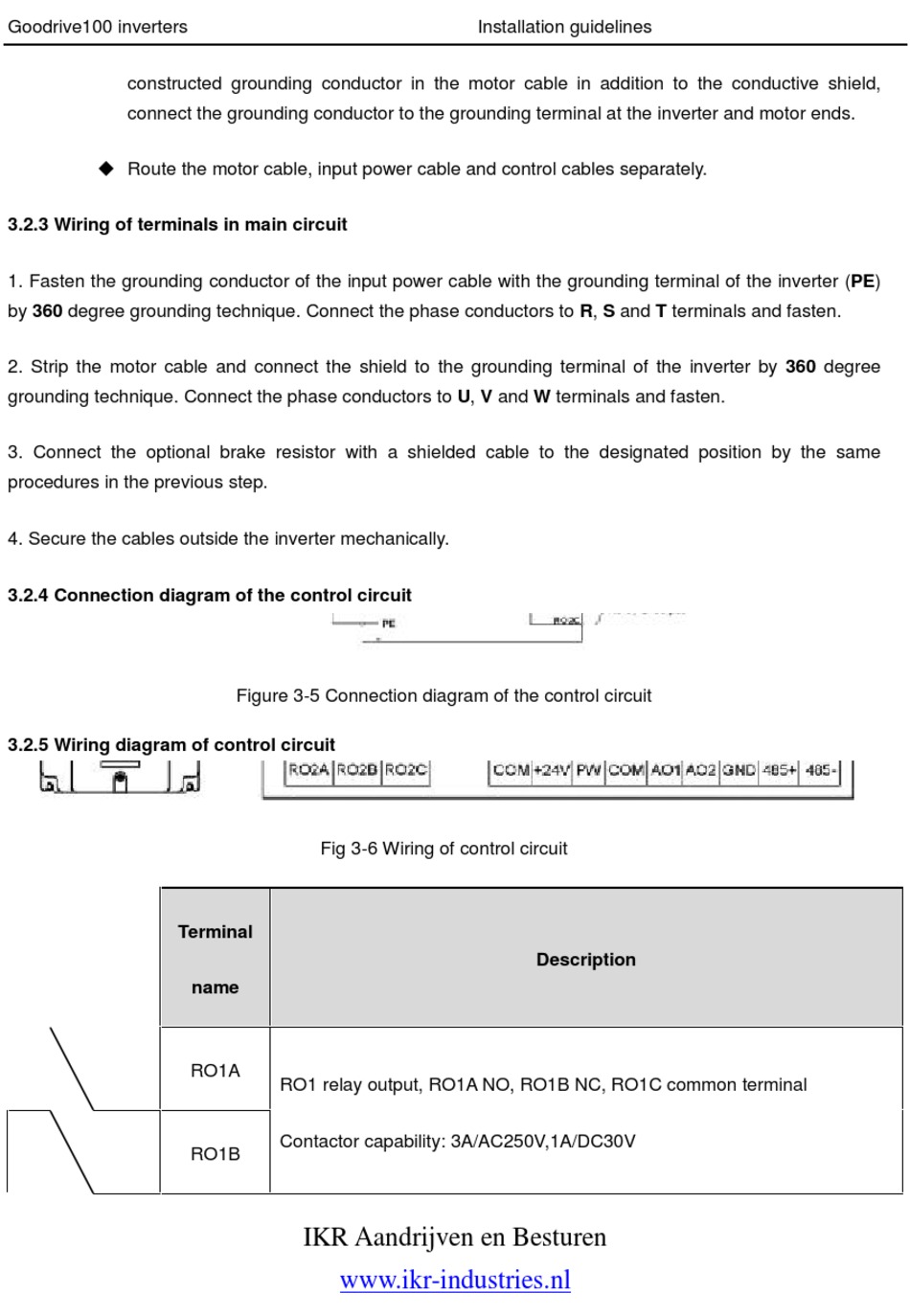

Goodrive100 inverters
constructed grounding conductor in the motor cable in addition to the conductive shield,
connect the grounding conductor to the grounding terminal at the inverter and motor ends.
 Route the motor cable, input power cable and control cables separately.

3.2.3 Wiring of terminals in main circuit

1. Fasten the grounding conductor of the input power cable with the grounding terminal of the inverter (PE)
by 360 degree grounding technique. Connect the phase conductors to R, S and T terminals and fasten.
2. Strip the motor cable and connect the shield to the grounding terminal of the inverter by 360 degree
grounding technique. Connect the phase conductors to U, V and W terminals and fasten.
3. Connect the optional brake resistor with a shielded cable to the designated position by the same
procedures in the previous step.
4. Secure the cables outside the inverter mechanically.

3.2.4 Connection diagram of the control circuit

3.2.5 Wiring diagram of control circuit

Terminal
Figure 3-5 Connection diagram of the control circuit
Fig 3-6 Wiring of control circuit
name
RO1A
RO1 relay output, RO1A NO, RO1B NC, RO1C common terminal
Contactor capability: 3A/AC250V,1A/DC30V
RO1B
IKR Aandrijven en Besturen
www.ikr-industries.nl
Installation guidelines
Description
