INVT Goodrive100 Series Instruction Manual page 53

Goodrive100 inverters
Function
Name
code
DC braking
P01.11
current
DC braking
P01.12
time
Dead time of
P01.13 FWD/REV
rotation

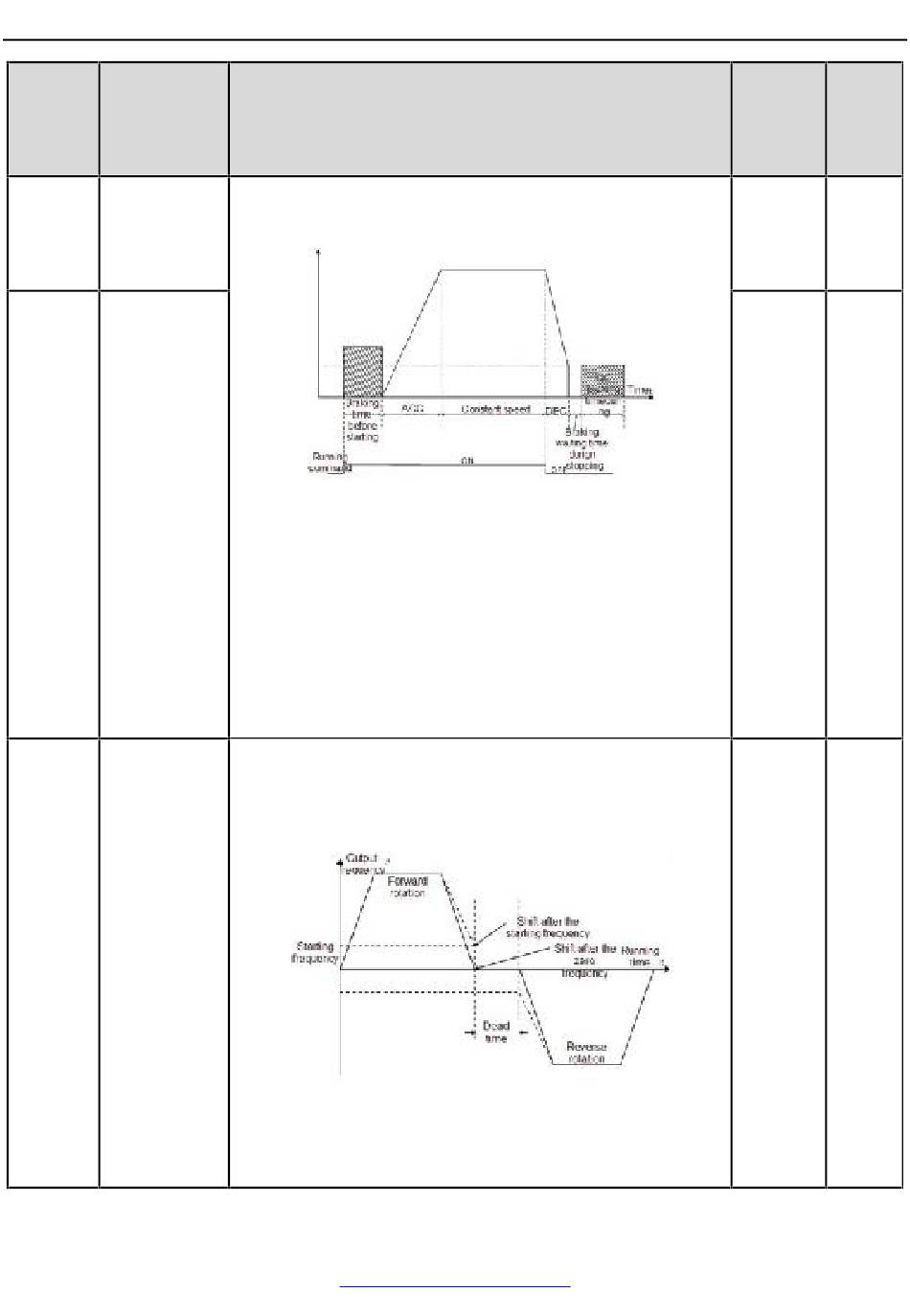

Detailed instruction of parameters
caused by DC braking at high speed.
DC braking current：The value of P01.11 is the percentage
of rated current of inverter. The bigger the DC braking current
is, the greater the braking torque is.
DC braking time: The retention time of DC brake. If the time
is 0, the DC brake is invalid. The inverter will stop at the set
deceleration time.
Setting range of P01.09: 0.00~P00.03 (the Max. frequency)
Setting range of P01.10: 0.0~50.0s
Setting range of P01.11: 0.0~150.0%
Setting range of P01.12: 0.0~50.0s
During the procedure of switching FWD/REV rotation, set the
threshold by P01.14, which is as the table below:
Setting range: 0.0~3600.0s
