INVT Goodrive100 Series Instruction Manual page 102

Goodrive100 inverters
Function
Name
code
Setting
P08.25
counting value
Given counting
P08.26
value
Detailed instruction of parameters
The declining time of the traverse frequency: The time from
the highest point to the lowest one.
The setting range of P08.15: 0.0~100.0%(relative to the set
frequency)
The setting range of P08.16: 0.0~50.0%(relative to the
traverse range)
The setting range of P08.17: 0.1~3600.0s
The setting range of P08.18: 0.1~3600.0s
The counter works by the input pulse signals of the HDI
terminals.
When the counter achieves a fixed number, the multi-function
output terminals will output the signal of "fixed counting
number arrival" and the counter go on working; when the
counter achieves a setting number, the multi-function output
terminals will output the signal of "setting counting number
arrival", the counter will clear all numbers and stop to recount
before the next pulse.
The setting counting value P08.26 should be no more than
the setting counting value P08.25.

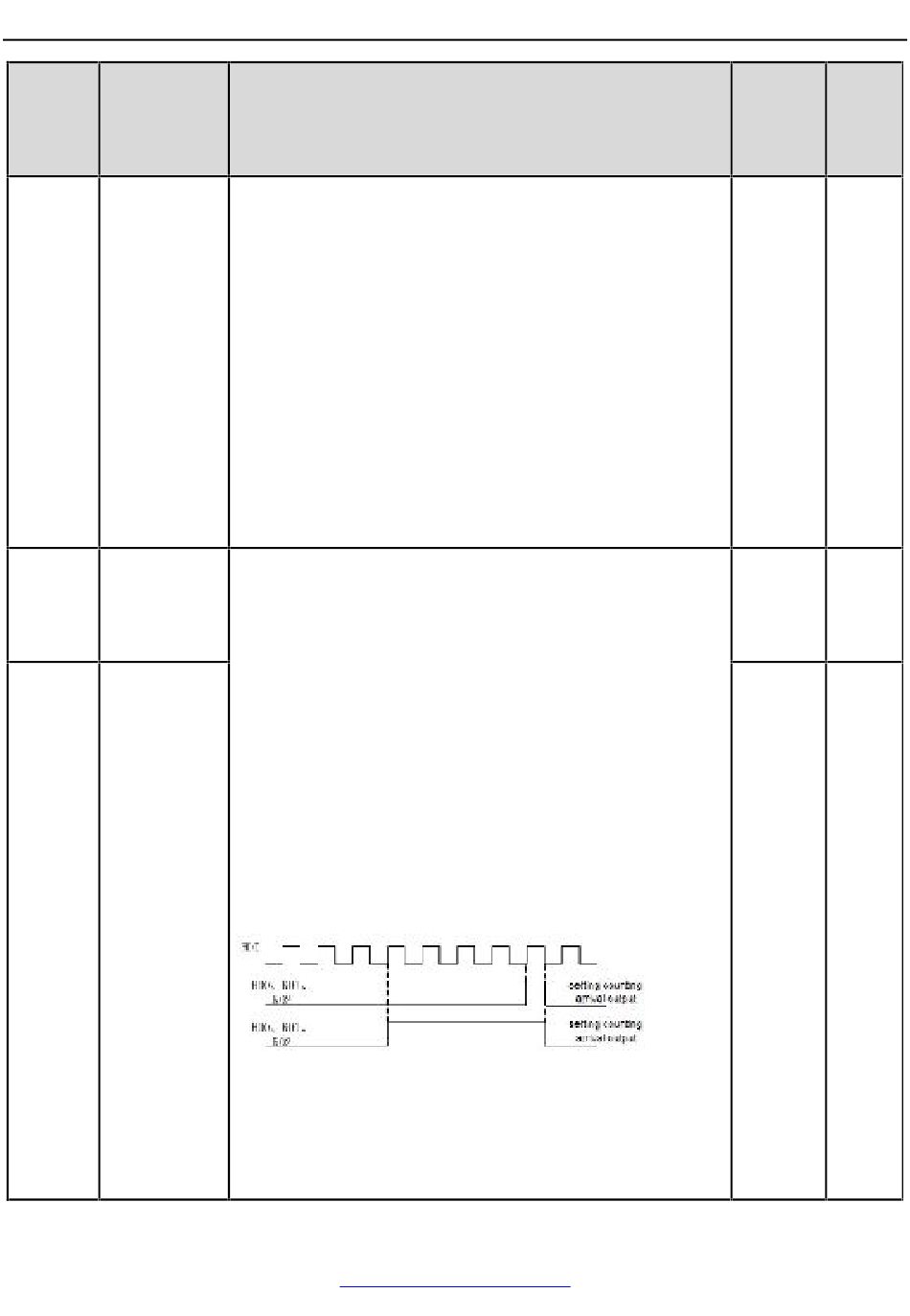

The function is illustrated as below:
Setting range of P08.25:P08.26~65535
Setting range of P08.26:0~P08.25
IKR Aandrijven en Besturen
www.ikr-industries.nl
Keypad operation procedure
Default
Modify
value
○
0
○
0
