TMS800E13 OPERATOR MANUAL
8. Remove tag line before operating crane.
NOTE: Reeve the hoist cable as described under rigging
and unrigging procedure in this section.

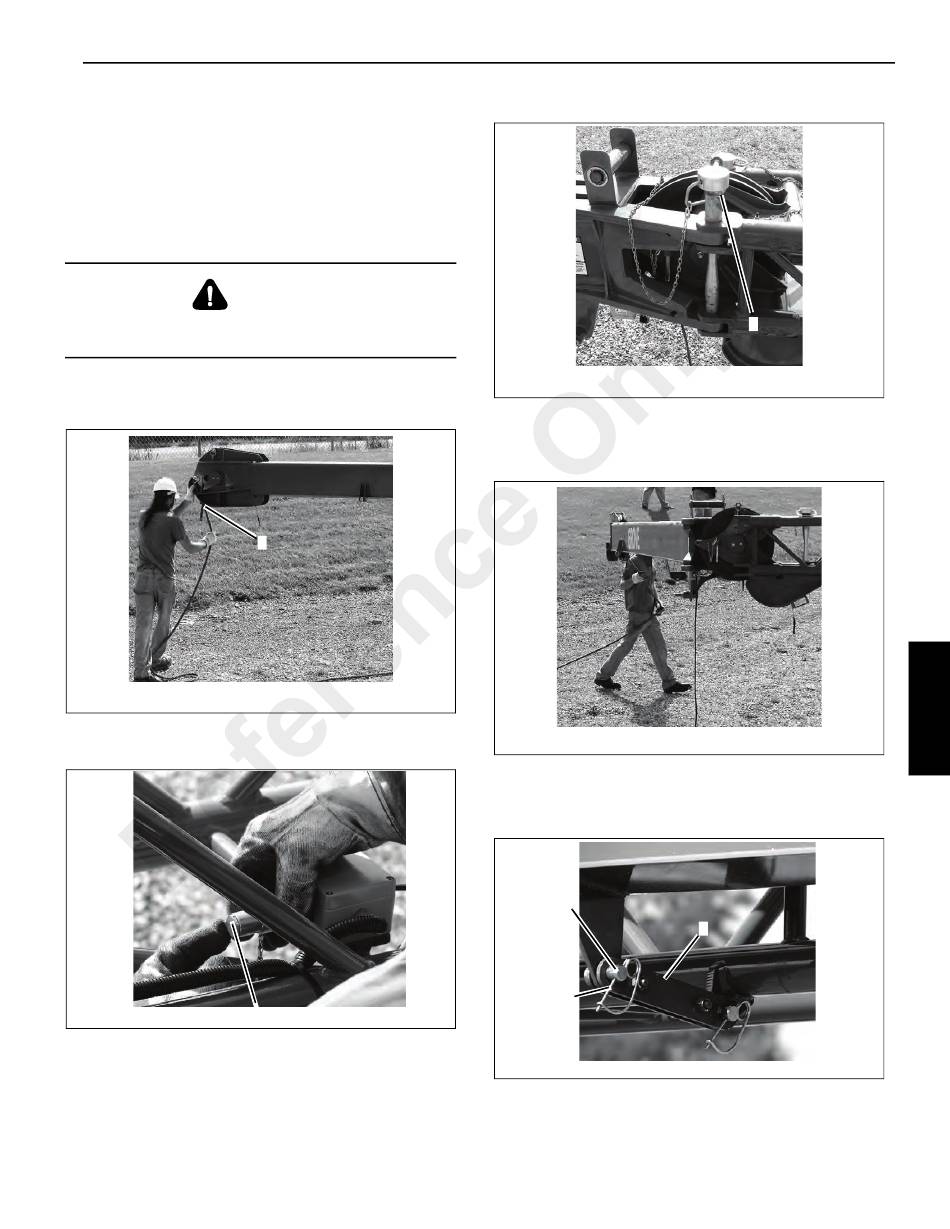

Stowing Procedure

17.1 m (56 ft) Jib
WARNING
To prevent serious injury or death, do not stand on
decking until extensions are secure.
1. Lower boom below horizontal.
2. Attach tag line to stinger nose Figure 4-36.
6642-23
3. Disconnect RCL connection (1, Figure 4-37). Stow the
cable in the 23 ft (7 m) section.
6642-28
4. Remove retainer clip and remove the left side stinger
retaining pin (1, Figure 4-38). Place pin in holder.
GROVE
1
FIGURE 4-36
1
FIGURE 4-37
Published 02-06-2014, Control # 495-00
SET-UP AND INSTALLATION
6642-26
5. Raise boom to slightly above horizontal.
6. Using tag line to control movement of stinger, swing
stinger into stowed position Figure 4-39.
6642-29
7. Raise boom slightly above horizontal.
8. Connect stowage link (1, Figure 4-40) to stinger using
pin (2) and retainer clip (3).
2
3
6642-24
9. Remove tag line from stinger.
1
FIGURE 4-38
FIGURE 4-39
1
FIGURE 4-40
4
