Load Presets Screen

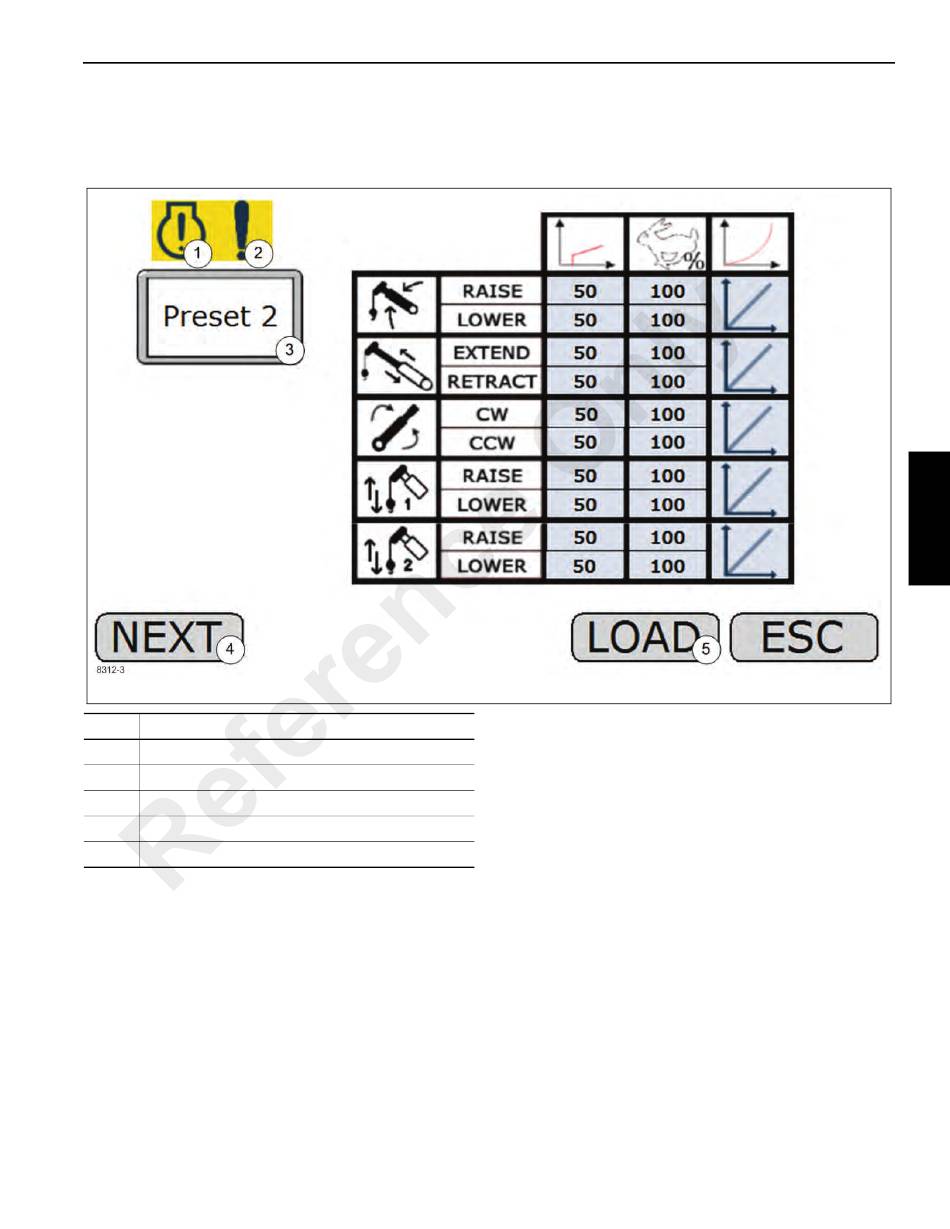

The load presets screen (Figure 3-6) allows the operator to
view/load from three different presets (labeled Preset 1,
Preset 2, and Preset 3) or to load the "No Preset" option,
Item
1 Engine Fault Active Indicator
2 System Fault Active Indicator
3 Current Visible Preset Selection
4 Display Next Preset Button
5 Load Current Preset Button
Engine Fault Active Indicator (1) (Figure 3-6)
This indicator will become visible whenever there is an active
engine fault. The operator should return to the fault screen to
view the active fault(s).
GROVE
Description
Published 02-06-2014, Control # 495-00
OPERATING CONTROLS AND PROCEDURES
which is the set of default values. If the ESC button is
pressed at any time, no preset will be loaded and the
operator will be returned to the menu screen.
System Fault Active Indicator (2)
This indicator will become visible whenever there is an active
system fault. The operator should return to the fault screen to
view the active fault(s).
Current Visible Preset Selection (3)
Displays the name of the presets shown on-screen. Values
can be Preset 1, Preset 2, Preset 3, or No Preset.
Display Next Preset Button (4)
Pressing this button cycles through the presets.
Load Current Preset Button (5)
Pressing this button will load the currently visible preset into
memory and then return the operator to the main screen.
This preset will be active until another preset (or the default)
is loaded.
