Rigging In Working Position - Manitowoc Grove TMS800E13 Operator's Manual

SET-UP AND INSTALLATION
1
2
4

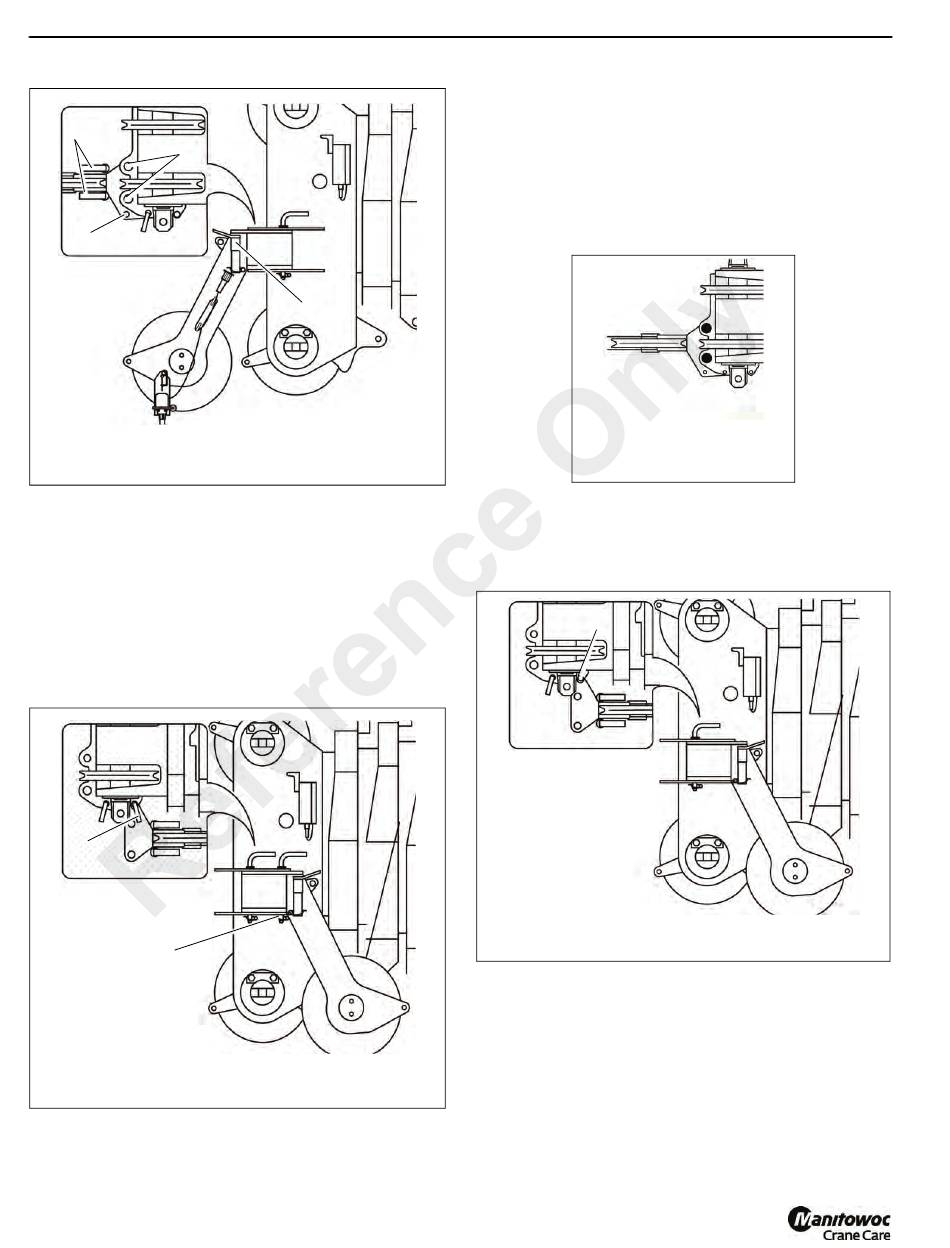

1. Remove the retaining pins and take both pins (1) out of
the bearing points (2) at the front of the main boom head
(Figure 4-72).
2. Insert both pins into the holders (3) and secure them
with retaining pins.
3. Release the retaining pin and remove the thin pin from
the bearing point (4).
4. Rotate the auxiliary boom nose to the side of the main
boom head.
1
2
34
5.
6.
7.

Rigging in Working Position

3
w2725a
FIGURE 4-72
On the left side of the main boom head, there is a holding
device. In working position, the auxiliary single-sheave boom
nose is attached to the main boom head at both bore holes
(Figure 4-74).
1.
2.
w2726a
FIGURE 4-73
Published 02-06-2014, Control # 495-00
TMS800E13 OPERATOR MANUAL
Using the thin pin (1), fasten the auxiliary single-sheave
boom nose to the bearing point (2) (Figure 4-73).
Secure the pin with a retaining pin.
The auxiliary single-sheave boom nose is now in
transport position.
FIGURE 4-74
1
Release the retaining pin and remove the thin pin from
the bearing point (Figure 4-75).
Swing the auxiliary single-sheave boom nose in front of
the main boom head.
w2466a
w2727a
FIGURE 4-75
