OPERATING CONTROLS AND PROCEDURES
3. Place a miracle pointer level, carpenter level, or similar
type device on a machined surface such as the turntable
bearing or bearing mounting surfaces.
4. Using the outriggers, level the crane as indicated on the
leveling device used in step 3.
5. Using the bubble level indicator mounting screws, adjust
the bubble level indicator to show level.
Outrigger Monitoring System (OMS) (Optional—
Standard in North America)
The Outrigger Monitoring System (OMS) aids the operator in
accurately programming the Rated Capacity Limiter (RCL)
by automatically identifying the horizontal position of each
outrigger beam. The OMS uses four sensors, one per
outrigger beam, to identify when an outrigger beam is
positioned to one of three pre-defined locations, including
fully retracted, mid-extend, and fully extended.
Set up of the outriggers is the same for cranes equipped with
OMS; refer to "Setting the Outriggers" on page 3-46. The
RCL only indicates the horizontal position of the outrigger
beam and should not be used to deploy the beam.
If the crane is setup on outriggers and "On Outriggers" is
chosen when programming the RCL, then the OMS indicates
to the RCL the horizontal position of each of the four
outrigger beams. Based on this information, the RCL will
choose the most conservative outrigger beam configuration
(that is, if three outriggers are fully extended and one is
retracted, the RCL will select retracted as the outrigger
configuration). A confirmation of this outrigger configuration
is all that is needed. Refer to the Rated Capacity Limiter
Operator's Handbook for detailed instructions.

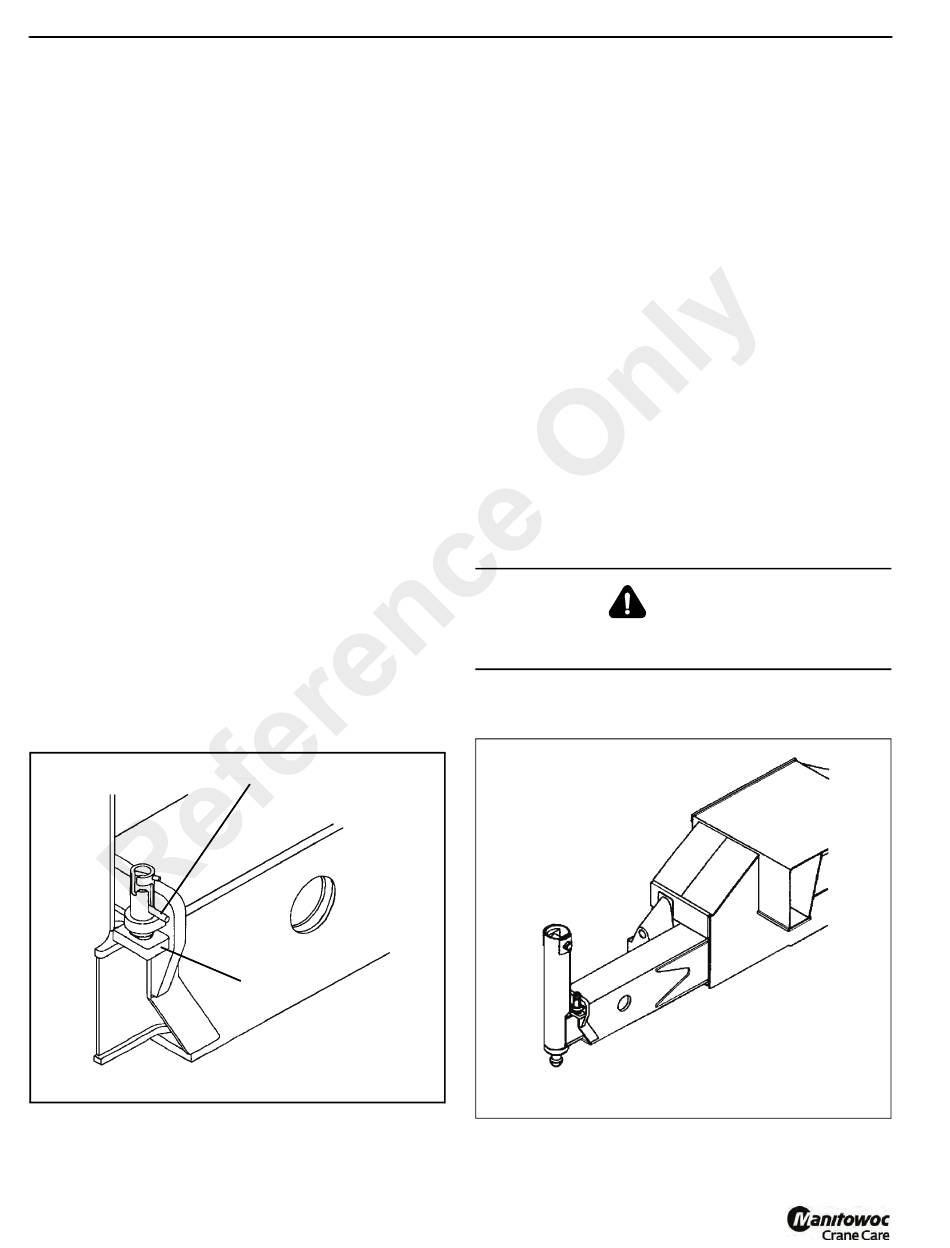

Engaging the Mid Extend Lock Pin
3-48
Locking Pin
Lug
4907-1
FIGURE 3-20
Published 02-06-2014, Control # 495-00
TMS800E13 OPERATOR MANUAL
1. Turn the locking pin (Figure 3-20) 90° from its stowed
position and allow the pin to rest on top of the outrigger
beam.
NOTE: It may be necessary to jog the outrigger extension/
retraction switch slightly to ensure proper pin
engagement.
2. Slowly extend or retract the outrigger beam, allowing the
locking pin to drop into the hole in the top of the outrigger
beam, engaging the outrigger beam at the desired
length.
Stowing the Outriggers
1. Position the rear Outrigger Selector switches to
STABILIZER and position the Outrigger Extension/
Retraction switch to RETRACT until the rear stabilizers
have retracted several inches.
2. Position the front outrigger selector switches to
STABILIZER and position the Outrigger Extension/
Retraction switch to RETRACT until the front stabilizers
have retracted several inches.
3. Repeat steps 1 and 2 until the crane is resting on all four
wheels and the stabilizer floats are several inches off the
ground.
Keep feet and hands clear of floats when unlocking the
floats from the stabilizers.
4. Release the locking levers and allow the floats to drop to
the ground.
CAUTION
4741
FIGURE 3-21
