TMS800E13 OPERATOR MANUAL
6645-5
NOTE:
Step 8 is with the 7 m (23 ft) section stowed on
boom. If stowing the 7 m (23 ft) section and 10.1 m
(33 ft) section together, proceed to step 10.
8.

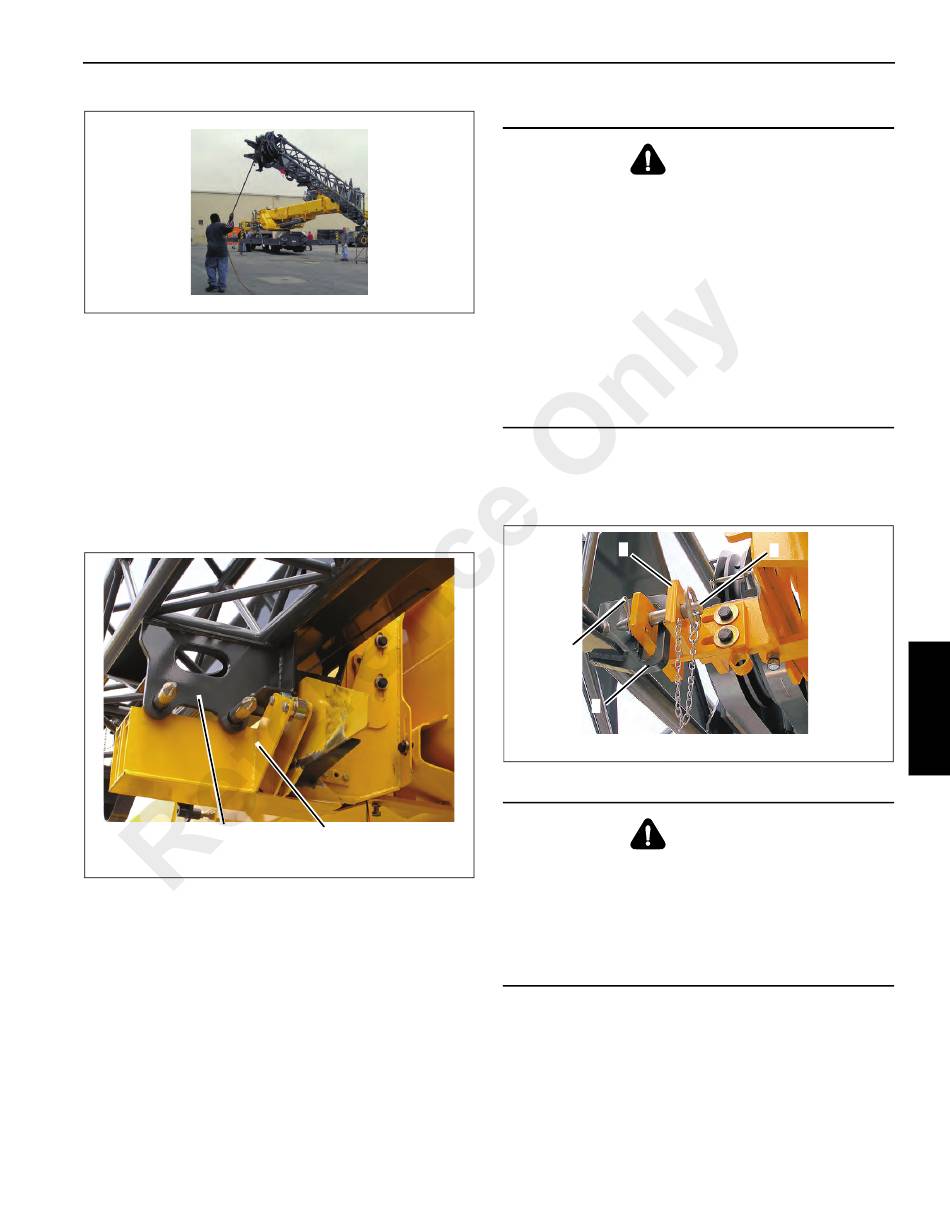

Use the tag line to maintain control of the jib
(Figure 4-46), and swing the extension into stowed
position until tag line can be attached to superstructure.
9.
Raise the boom to ensure wear pad rests against
bumper plate on ramp (Figure 4-47).
10. Completely retract boom so that the jib (1, Figure 4-47)
stows on the ramp (2) and front stowage brackets.
1
6642-47
11. Lower the boom.
GROVE
FIGURE 4-46
2
FIGURE 4-47
Published 02-06-2014, Control # 495-00
SET-UP AND INSTALLATION
If the 10.1 m (33 ft) lattice extension (1, Figure 4-47) does
not engage the ramp (2, Figure 4-47) correctly or does not
align with the front stowage bracket (2, Figure 4-48)
correctly, STOP. DO NOT continue to stow the jibs until
they are properly secured at these two points.
DO NOT climb onto decking or walk under jibs.
Severe injury or death may occur if the front stowage
bracket and ramp are not properly attached to the jibs; the
jibs may fall or swing away from the main boom stowage
brackets.
Contact Manitowoc Crane Care for correct adjustments if
unable to align the lattice extension with the stowage
brackets.
12. Remove the stowage pin from the holder at the front
mount. Secure the lattice extension (1, Figure 4-48) to
boom front stowage bracket (2) using stowage pin (3)
and clip pin (4).
2
4
1
6642-46
Never remove the stowage pins from the right side boom
nose lugs (1, Figure 4-49) until the 10.1 m (33 ft) lattice
extension has been properly secured to the stowage
ramp (2, Figure 4-47) and front stowage bracket (2,
Figure 4-48).
Severe injury or death may occur, jibs will fall from the
main boom if not secured properly.
13. Remove pins from right side boom nose lugs (1,
Figure 4-49). Stow the pins in pin holders (2) on jib and
install retainer clips.
a.
If the 7 m (23 ft) section was left stowed, use
controller to pivot jib in towards boom so that the
lugs on 10.1 m (33 ft) section align with 7 m (23 ft)
section.
DANGER
3
FIGURE 4-48
DANGER
4
21
