TMS800E13 OPERATOR MANUAL
24
23
64
25
22
36
35
20
19
21
31

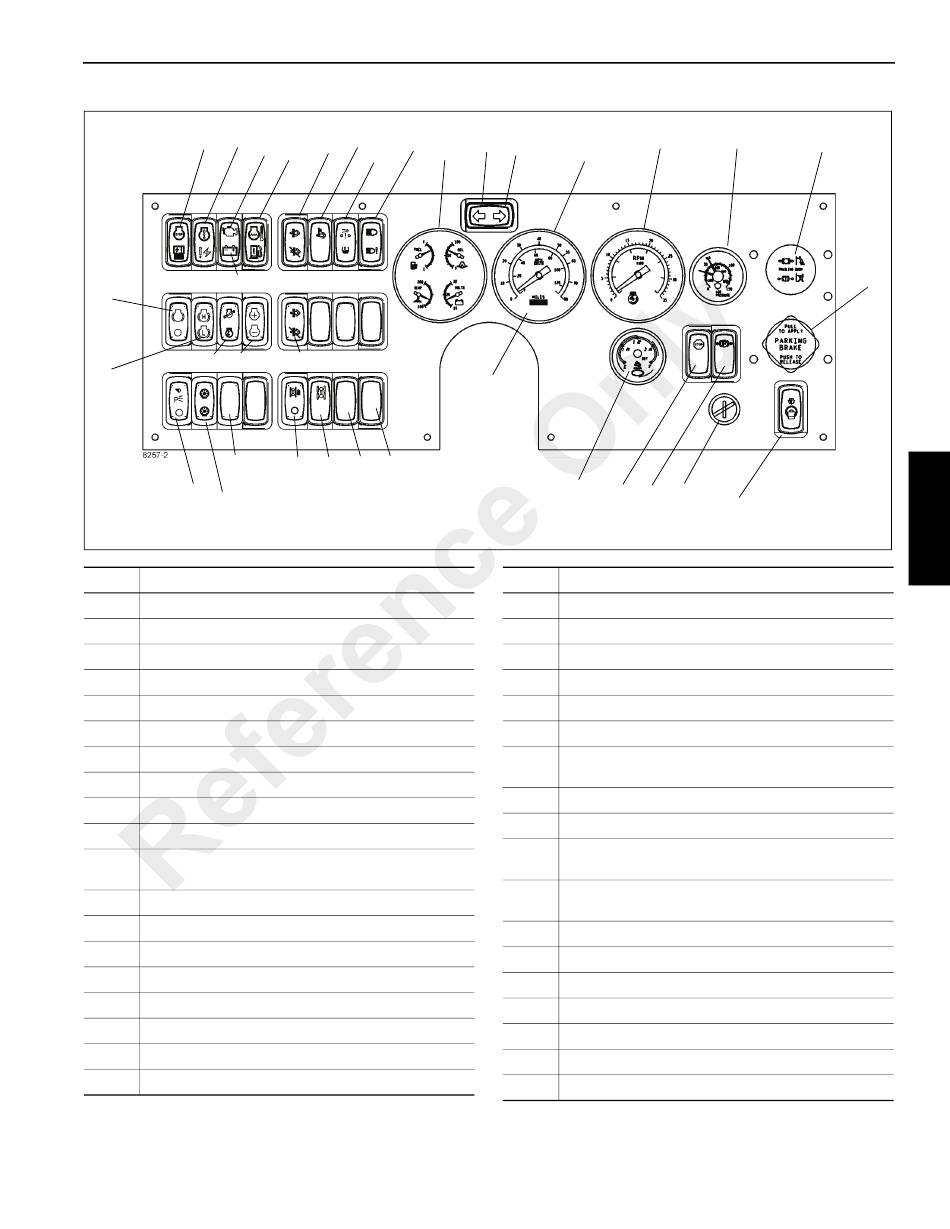

Item
1
Dual Air Pressure Gauge
2
Tachometer
3
Left Turn Signal Indicator
4
Speedometer
5
Gauge Cluster (fuel, temperature, oil, volts)
6
Right Turn Signal Indicator
7
Heater On/Off Switch
8
Heater/Air Conditioner Fan Switch
9
12 Volt Accessory Outlet
10
Air Conditioner Switch (Optional)
Trailing Boom Trailer Emergency Brake Control
11
(Optional)
12
Parking Brake Control
13
Windshield Wiper/Washer Switch
14
Ignition Switch
15
Inter-Axle Differential Lock Switch
16
Odometer
17
Cross-Axle Differential Lock Switch (Optional)
18
Tire Inflation Switch
19
Beacon Light Switch (Optional)
GROVE
58 61
28
30
5
27
60
26
32
17
15
Description
Published 02-06-2014, Control # 495-00
OPERATING CONTROLS AND PROCEDURES
2
3
6
4
16
59
57
29
View A
Item
20
Engine Brake High-Low Switch
21
Headlights Switch
22
Engine Brake On/Off Switch
23
Engine Stop/Module Off Line Indicator
24
Engine Warning/Electrical Diagnostic Indicator
25
Alternator Charge Indicator
Cross-Axle Differential Locked Indicator
26
(Optional)
27
Low Air Pressure/Tire Inflation On Indicator
28
High Beam/Lamp Malfunction Indicator
Park Brake Engaged/Swing Brake Engaged
29
Indicator (swing brake may be optional)
Engine Coolant Temperature/Low Fuel Level
30
Indicator
31
Dimmer Switch
32
Inter-Axle Differential Lock Indicator
33
Suspension Deflated Indicator
34
Suspension Inflation Control Switch
35
Engine Increment/Decrement Switch
36
Engine Diagnostic/Idle RPM Switch
37
Brake Pedal
1
11
14
13
FIGURE 3-1 continued
Description
12
3
3-7
