Faults Screen (Figure 3-11)
All active faults (whether engine or crane system related) will
be available to view from this screen while the operator is
running the crane from the superstructure cab. The fault
Item
1 Active Engine Fault
2 Current Active Engine Fault Code
Current Active Engine Fault Code Occurrence
3
Count
4 Active Crane System Fault
5 Active Crane System Fault Information
6 Toggle Between Fault Types
7 Cycle Up Through Active Faults
8 Cycle Down Through Active Faults
Active Engine Fault (1) (Figure 3-11)
The currently visible fault and the total number of faults will
be displayed here (in this case the operator is looking at fault
1 of 7 total faults).
Current Active Engine Fault Code (2)
The fault code number broadcasted by the engine ECM over
the J1939 CAN bus circuit.
GROVE
Description
Published 02-06-2014, Control # 495-00
OPERATING CONTROLS AND PROCEDURES
indication on the left side of the screen will be highlighted
green to designate the faults the operator can currently cycle
through.
Current Active Engine Fault Code Occurrence Count
(3)
The number of times this fault has been logged by the engine
ECM.
Active Crane System Fault (4)
The currently visible fault and the total number of faults will
be displayed here (in this case the operator is looking at fault
2 of 2 total faults).
Active Crane System Fault Information (5)
The active fault is displayed as a four number combination
that will be used to look up the fault information in a table.
The four numbers a re a s follows from le ft to right:
Component, Error, Device, and Pin Number.
Component - The part or sub-system experiencing the error.
Error - The error type occurring.
Device - The module in the control system where an output is
connected to the component in error.
Pin Number - The physical pin on the module in the control
system of the output connected to the component.
3

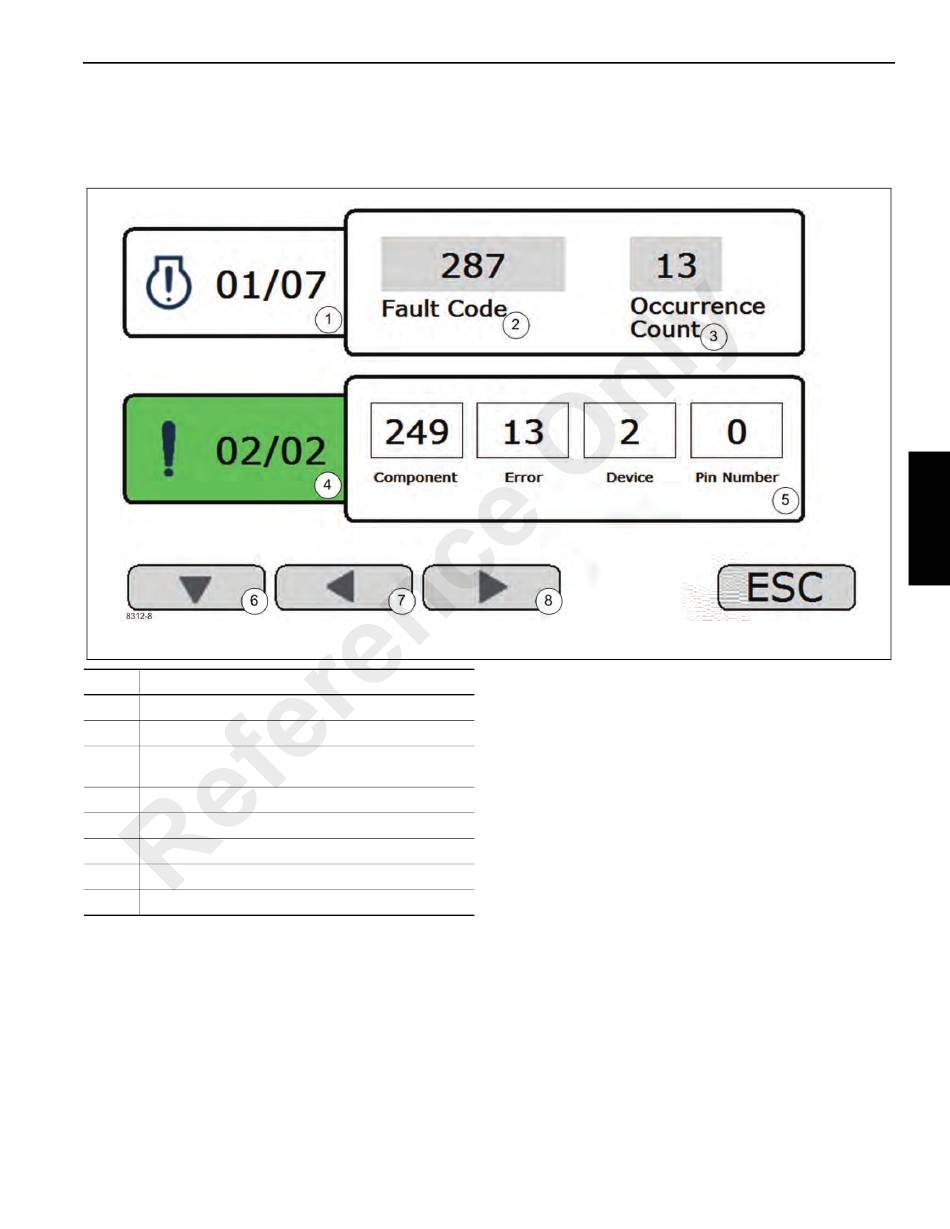

FIGURE 3-11
