TMS800E13 OPERATOR MANUAL
•
Press the top push-button to raise the lattice extension
(1).
•
Press the bottom push-button to lower the lattice
extension (2).
During Operation
During operation the lattice extension is raised or lowered
from the crane cab. The lattice extension can be raised or
lowered, only when the power for the lattice extension is
switched on.
When the power is switched on:
-
The indicator lamp in the on/off rocker switch on the
lattice extension lights up brightly.
-
Activation of the power is shown on the RCL display.
•
If necessary, switch on the power of the lattice
extension, by pressing the lattice extension on/off rocker
switch.
To raise, press the switch to the rear.
To lower, press the switch to the front.
Transportation on a Separate Vehicle
Risk of accidents from a falling lattice extension.
Only attach the lattice extension in such a way that it is
positioned in the center of gravity and always use lifting
gear with sufficient lifting capacity. This prevents the
lattice extension from falling and injuring people while
loading.
•
Check if all the required connections for transport
condition are established.
•
For transportation, place the lattice extension on the skid
at the front and onto the lower cross strut at the rear of
the 10.1 m (33 ft) section.
•
Always secure the lattice extension on the separate
vehicle with belts to prevent slipping and overturning.
CAUTION
Risk of damaging the lattice extension.
Always secure the lattice extension by tying it down with
suitable belts when it is transported on the separate
vehicle. This prevents the two-stage swingaway lattice
extension tipping and becoming damaged during
transportation.
GROVE
DANGER
Published 02-06-2014, Control # 495-00
SET-UP AND INSTALLATION
Lifting Limit Switch on the Lattice Extension
The functions raise hoist, extend main boom and lower main
boom are monitored during operation with the lattice
extension by the lifting switch on the lattice extension and
are switched off when the lifting limit switch is actuated.
NOTE:
The same lifting limit switch is used for lattice
extension and main boom.
Overriding Connection on Main Boom
For operation with the lattice extension you must remove the
lifting limit switch on the main boom and override the
connection.
•

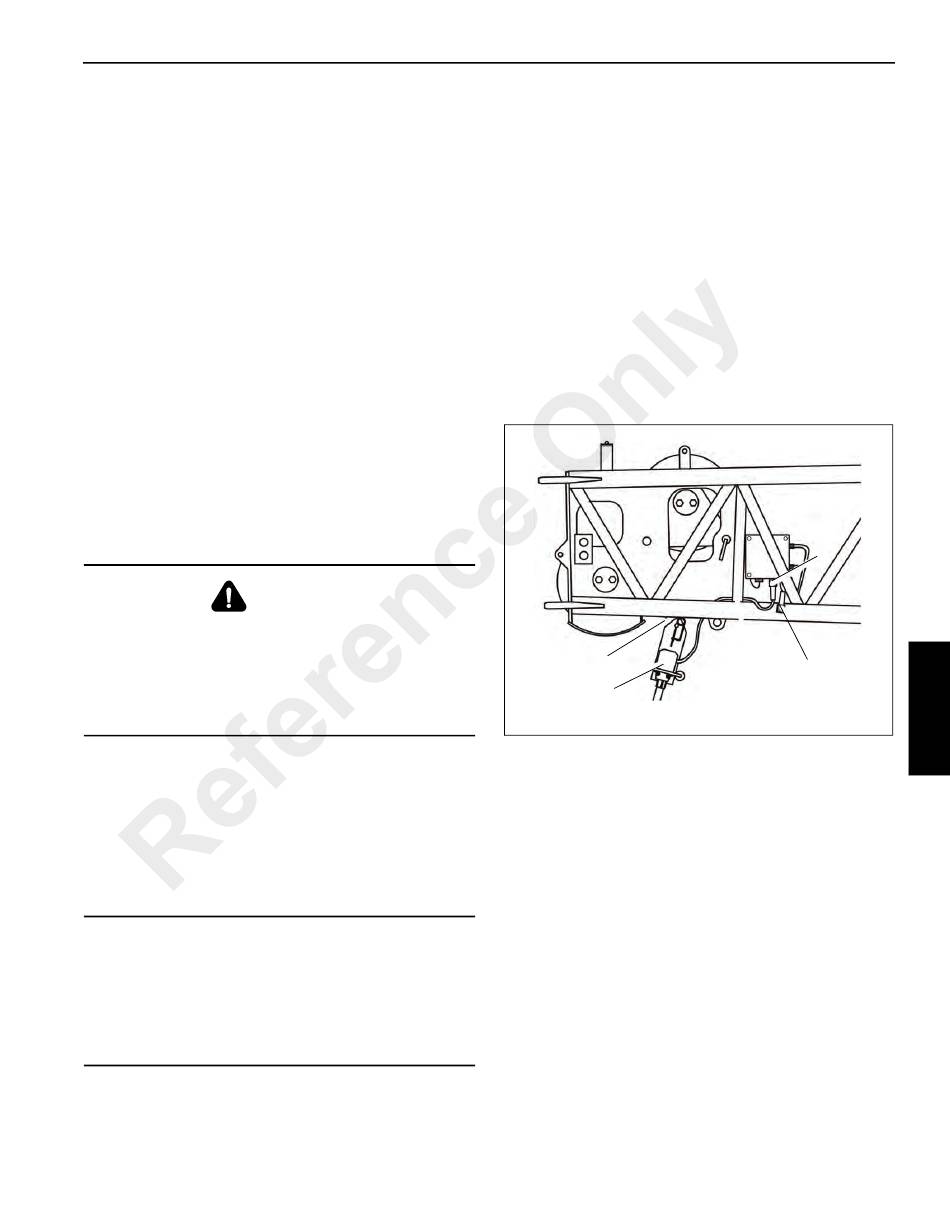

Insert the short-circuit plug (2) in the socket (1) for the
connection of the lifting limit switch Figure 4-53.
The connection is now overridden.
4
3
w1525a
On 10.1 m (33 ft) swingaway lattice extension
•
Attach the lifting limit switch (3) in the holder (4) and
secure it with a retaining pin. Figure 4-53
•
Remove the short-circuit plug (2) from the socket (1).
•
Connect the lifting limit switch on the socket (1).
•
When unrigging you must insert the short-circuit plug (2)
back in the socket (1).
1
2
4
FIGURE 4-53
23
