TMS800E13 OPERATOR MANUAL
2.
Use an auxiliary crane to couple the holding device to
the connection eyes (3) on the auxiliary boom nose and
lift it to the left onto the main boom head.
3.
Align the auxiliary single-sheave boom nose so that the
bearing point (2) lines up to the front bore holes in the
holding device.
4.
Secure the auxiliary single-sheave boom nose to the
holding device using a pin (1).
5.
Secure the pin (1) with a retaining pin (4).
6.
Depending on the application, bring the auxiliary single-
sheave boom nose into transport position or working
position.
Removing the Auxiliary Single-Sheave
Boom Nose
In the working position, the auxiliary single-sheave boom
nose is positioned in front of the main boom head and is
fastened with three pins (1) Figure 4-69.
In the transport position, the auxiliary single-sheave boom
nose is positioned to the side of the main boom head and is
fastened with two pins.
GROVE
1.
2.
3.
4.
5.
1
6.

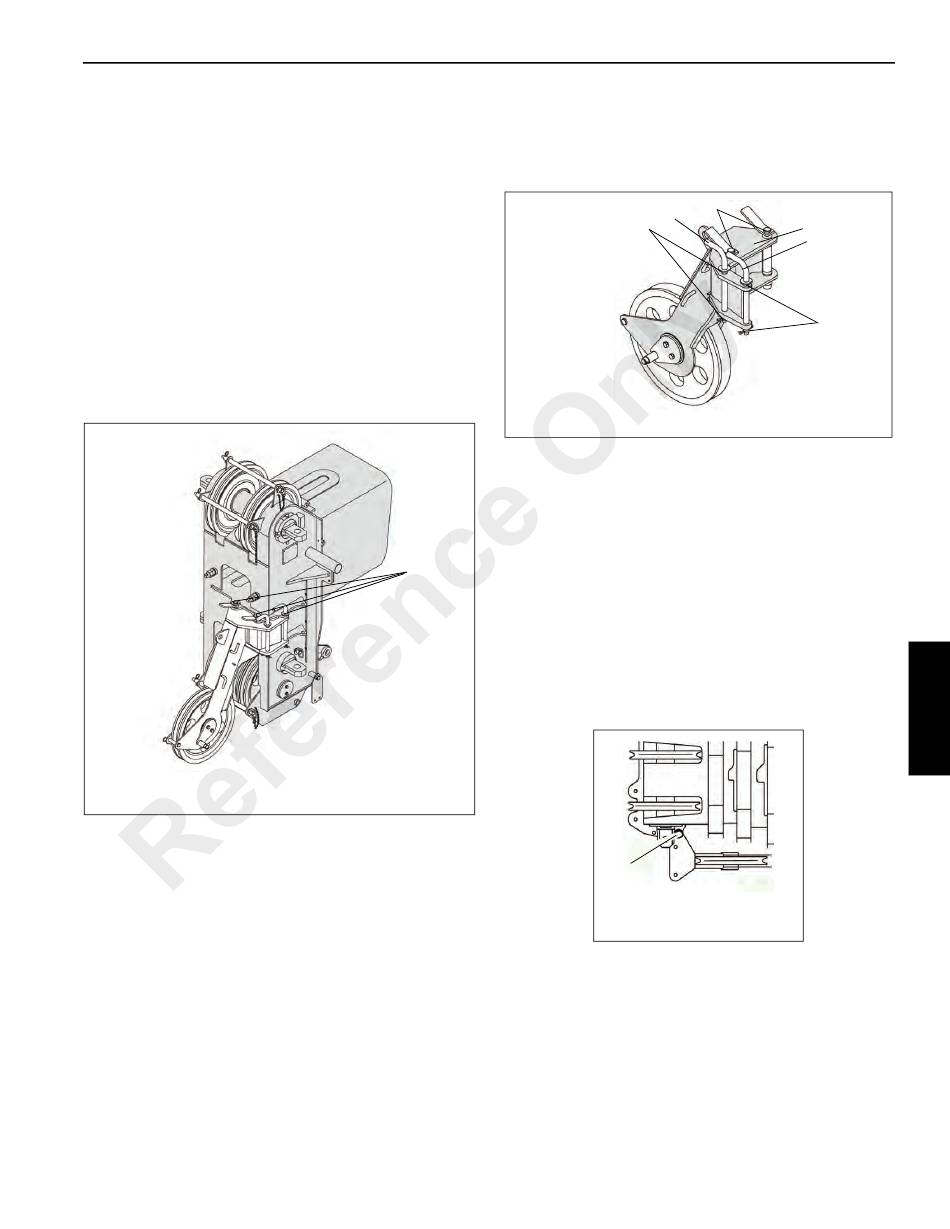

RIGGING THE AUXILIARY SINGLE-SHEAVE
BOOM NOSE
Rigging in Transport Position
6435
FIGURE 4-69
On the left side of the main boom head there is a holding
device. In transport position, the boom nose is connected to
the rear bore holes on the holding device (Figure 4-71).
Published 02-06-2014, Control # 495-00
SET-UP AND INSTALLATION
Attach an auxiliary crane to the connection eyes of the
boom nose.
Remove the retaining pins and remove all the pins out of
the bores and bearing points.
5
1
2
Lift the auxiliary single-sheave boom nose from the head
of the main boom.
Insert the two thin pins (1) and (3) into the bearing points
(2) and (4) on the auxiliary single-sheave boom nose
(Figure 4-70).
Insert the two pins (5) into the mounting brackets (6) in
front on the auxiliary single-sheave boom nose.
Secure all pins using retainer pins.
1
FIGURE 4-71
6
3
4
6435-2
FIGURE 4-70
w2465a
33
4
