SET-UP AND INSTALLATION
Traveling with Manually Offsettable Jib and/
or Inserts Erected
10.1 m (33 ft)/17.1 m (56 ft) Extension Plus 4.9 m (16 ft)
or 10 m (32 ft) Inserts
Travel is permissible under the following conditions:
1.
The 10.1 m (33 ft) or 17.1 m (56 ft) jib shall be erected at
minimum offset.
2.
Jobsite travel only on firm, level surface.
3.
Main boom shall be fully retracted.
4.
Main boom angle: 0 degrees minimum, 40 degrees
maximum.
5.
Maximum travel speed: 4 km/h (2.5 mph).
6.
Counterweight shall be installed.
7.
The boom shall be over the front.
8.
Swing lock and pin shall be engaged.
9.
Hookblock must be removed from main boom nose.
10. Headache ball may be reeved over jib, hanging 0.9 m (3
ft) below sheave.
11. The tires shall be properly inflated.
12. The suspension air bags shall be properly inflated.

AUXILIARY SINGLE-SHEAVE BOOM NOSE

(ADDITIONAL EQUIPMENT)

Identification

The auxiliary single-sheave boom nose is designed for the
crane it was delivered with.
CAUTION
Operate the crane only with the auxiliary single-sheave
boom nose that has the identical serial number.
If you wish to use the auxiliary single-sheave boom nose on
several Manitowoc/Grove cranes, it needs to be adapted to
the corresponding crane and marked with all the serial
numbers.
CAUTION
The auxiliary single-sheave boom nose should only be
adjusted by Manitowoc Crane Care at the particular
location.
32

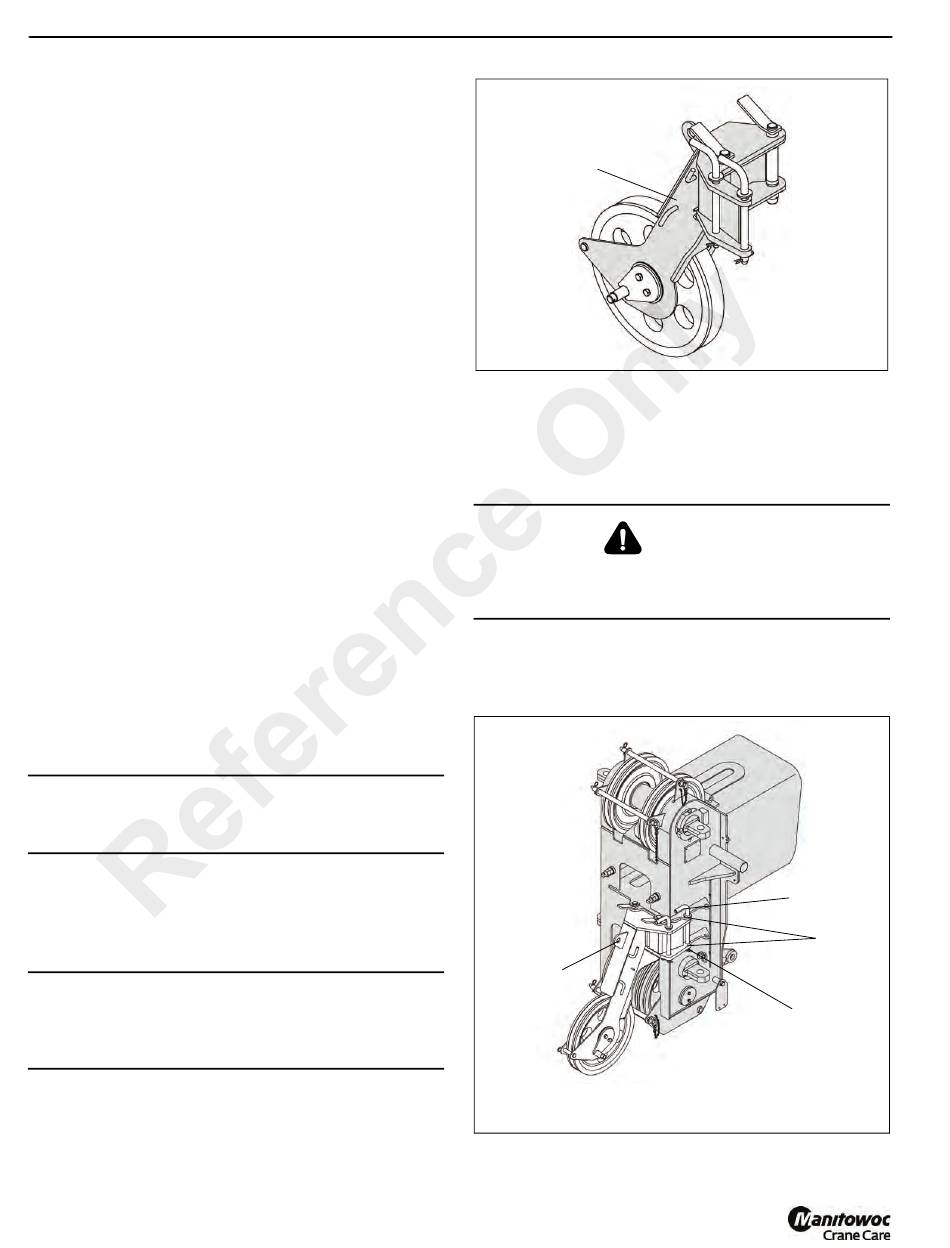

The serial number (1) is on a plate, in the front on the
auxiliary single-sheave boom nose (Figure 4-67).
Installing/Removing Auxiliary Single-Sheave
Boom Nose
Risk of accidents if boom nose should fall off! During
ins tallation and remo val, a lways us e t he prop er
equipment with sufficient load bearing capacities.
Installing Auxiliary Single-Sheave Boom Nose
1.
Published 02-06-2014, Control # 495-00
TMS800E13 OPERATOR MANUAL
1
WARNING
Loosen the retaining pin (4) and remove the pins (1)
from the bearing point (2) (Figure 4-68).
3
6435-2
FIGURE 4-67
1
2
4
6435
FIGURE 4-68
