SET-UP AND INSTALLATION
1
6642-22

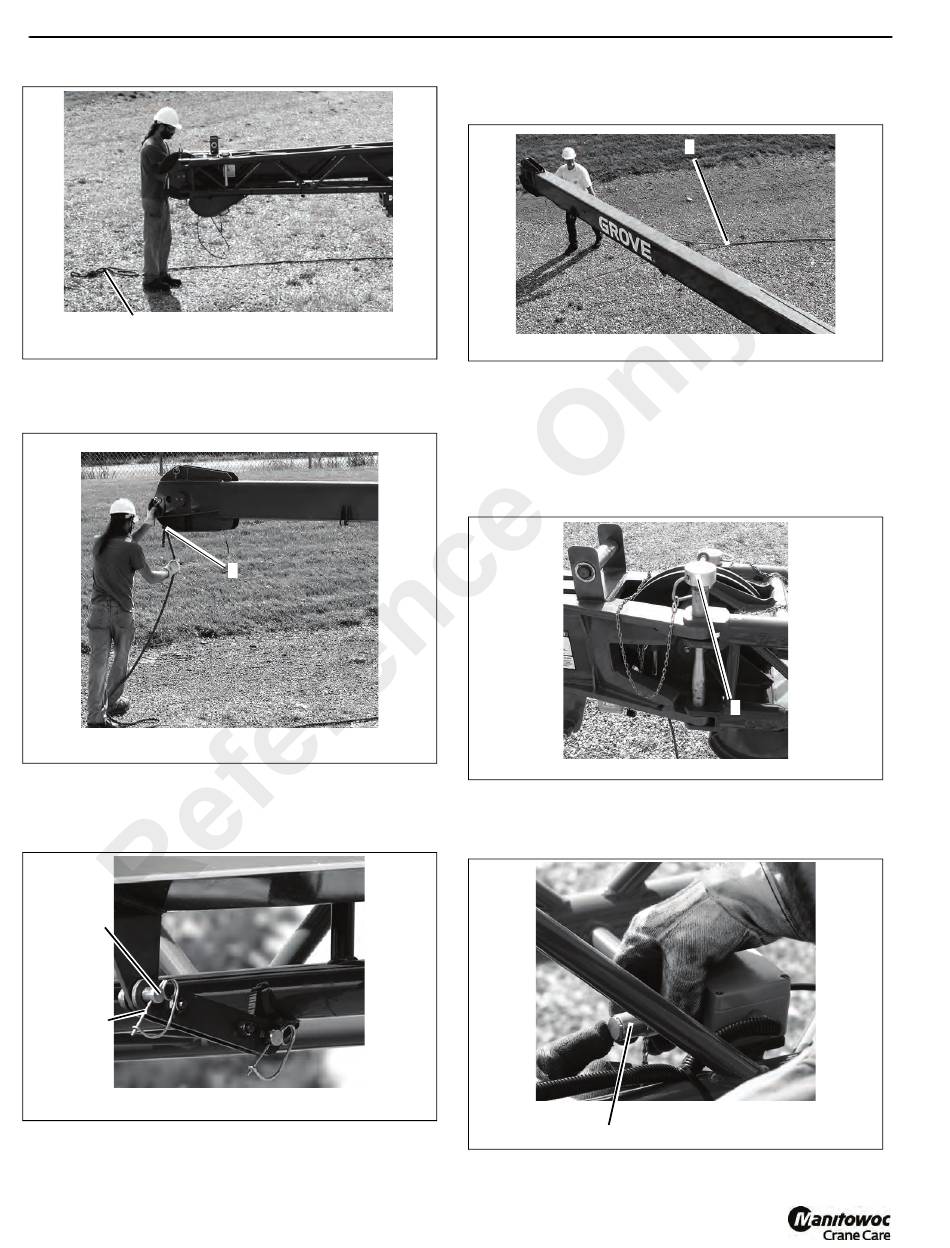

17.1 m (56 ft) Jib
1. Secure tag line to (1, Figure 4-31) bi-fold nose.
6642-23
2. Raise boom slightly above horizontal.
3. Remove retainer clip (1, Figure 4-32) and remove bi-fold
stowage pin (2).
2
1
6642-24
18
FIGURE 4-30
1
FIGURE 4-31
FIGURE 4-32
Published 02-06-2014, Control # 495-00
TMS800E13 OPERATOR MANUAL
4. Using the tag line (1, Figure 4-33) to maintain control of
the bi-fold (stinger), swing stinger into erected position.
6642-25
NOTE: Do not lower boom until stinger has been
completely swung in front of the 10.1 m (33 ft)
section.
5. Lower the boom.
6. Remove pin (1, Figure 4-34) from swingaway. Install pin
in stinger and retain with clip pin.
6642-26
7. Connect RCL connector (1, Figure 4-35) to RCL
connection box. The cable is stowed in the 7m (23 ft)
section.
6642-27
1
1
FIGURE 4-33
1
FIGURE 4-34
FIGURE 4-35
