TMS800E13 OPERATOR MANUAL

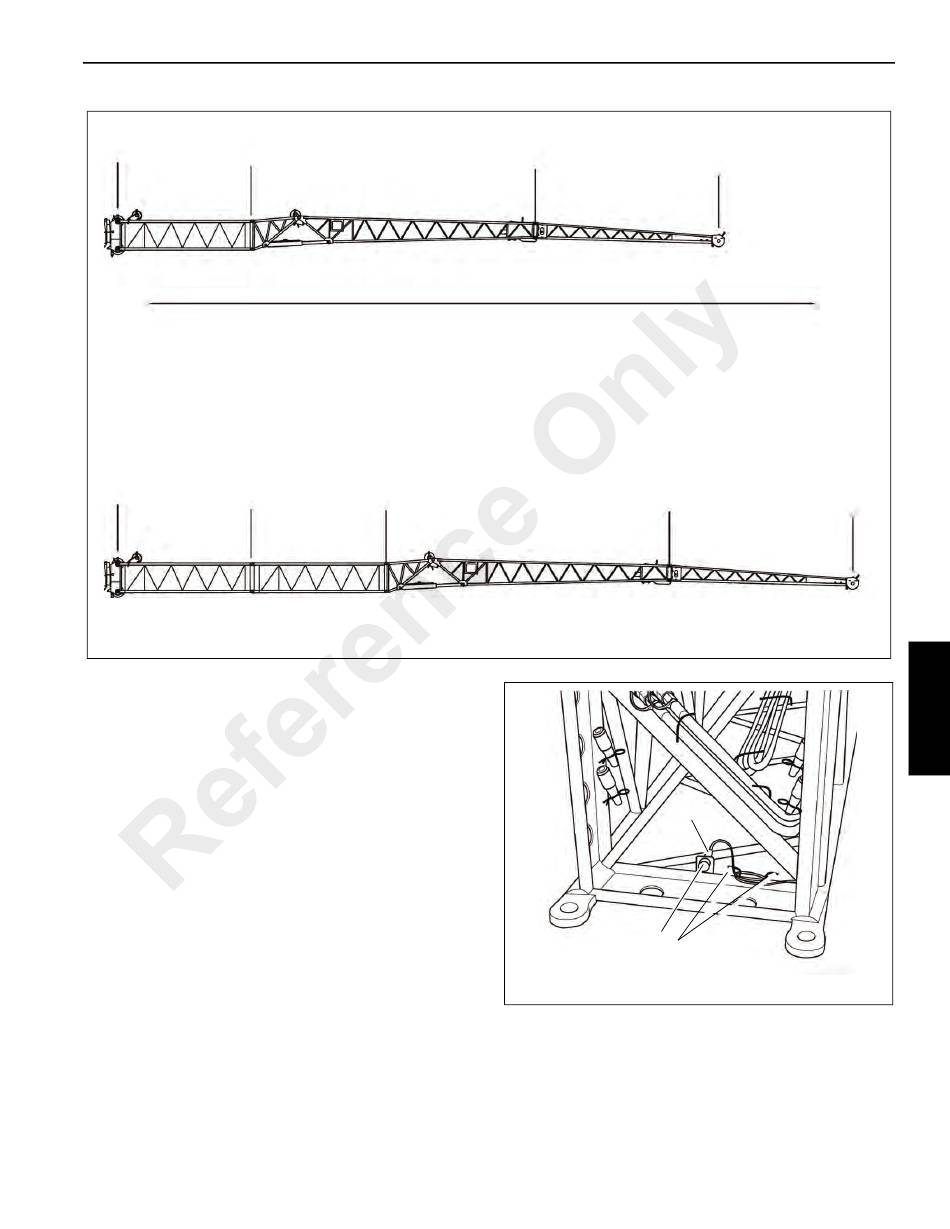

The designation 10.1 m (33 ft) section, 7 m (23 ft)
section, and 4.9 m (16 ft) section have been
adjusted to these lengths. The total length of the
individual sections is greater or smaller.
Electrical Connection at the Jib
The following describes the electrical connections at the 4.9
m (16 ft) sections. Establish the electrical connection at the
bi-fold swingaway lattice extension per the following
procedures
Transport Condition of the Connection
For transport, bring the electrical connections into the
following condition.
There is a cable with a plug (3) at the rear of the 4.9 m (16 ft)
sections Figure 4-62.
For transport, the cable is wound around the holders (1) and
the plug is inserted in the dummy socket (2).
GROVE
w3367a
Published 02-06-2014, Control # 495-00
SET-UP AND INSTALLATION
w3351a
FIGURE 4-61
3
2
1
FIGURE 4-62
4
29
