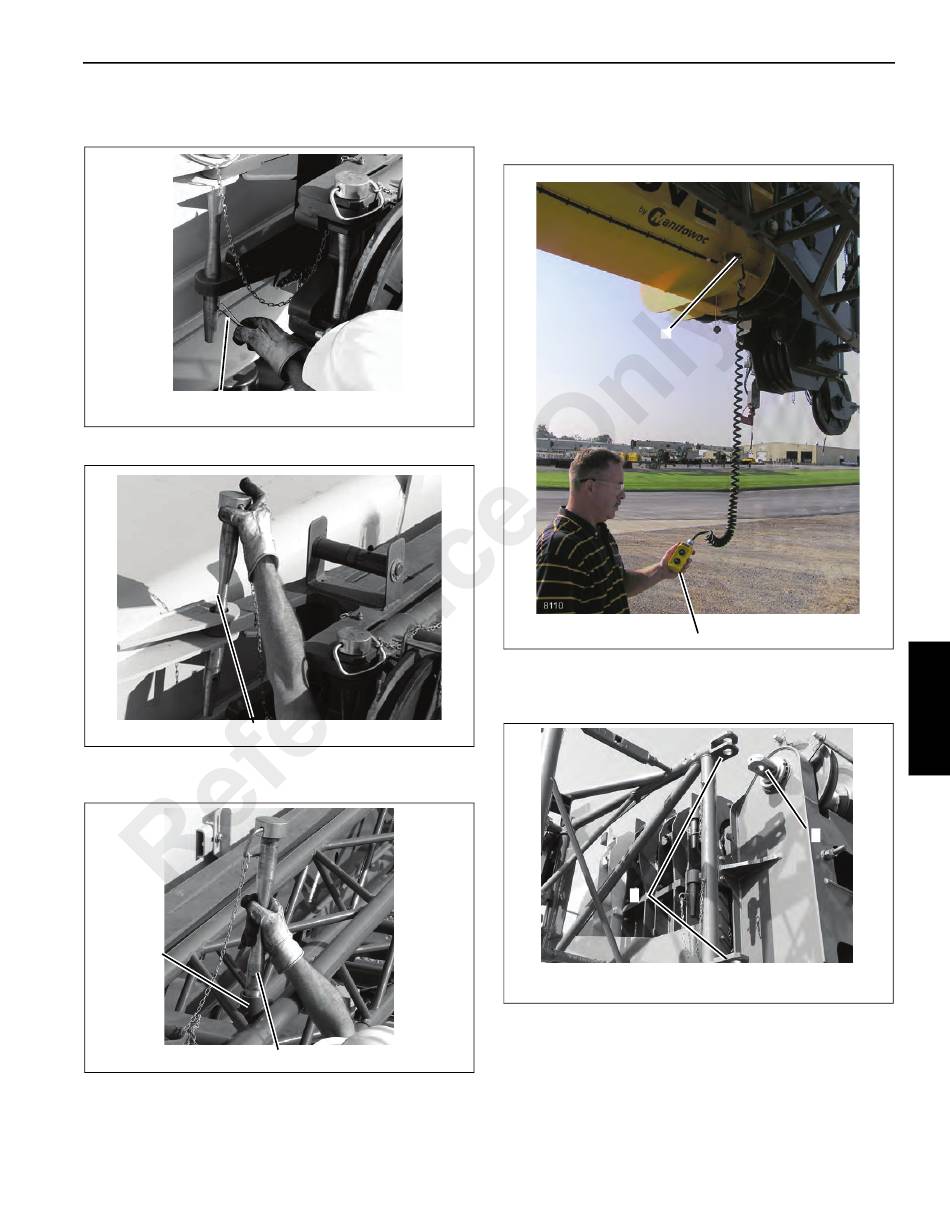

6. Remove retainer clip (1, Figure 4-16) from the pin
attaching the 7m (23 ft) section to the base section.
.
1
6642-5
7. Remove the stowage pin (1, Figure 4-17).
1
6642-6
8. Stow the pin (1, Figure 4-18) in pin holder (2) provided
on the swingaway extension.
2
6642-7
GROVE
FIGURE 4-16
FIGURE 4-17
FIGURE 4-18
1
Published 02-06-2014, Control # 495-00
SET-UP AND INSTALLATION
9. Remove the jib stowage controller (1, Figure 4-19) from
behind the seat in the superstructure cab and connect it
to the electrical plug (2) near the boom nose.
2
10. Use the controller to pivot the jib so that lugs (1,
Figure 4-20) on jib align with the holes in the lugs (2) on
the boom nose.
1
6642-11
11. Remove pins (1, Figure 4-21) stowed in extension and
install in holes (right side of boom nose) and secure with
retainer clips (2).
