OPERATING CONTROLS AND PROCEDURES
Item
1 Engine RPM
Engine Coolant Temperature and High Coolant
2
Temperature Indicator
3 Battery Voltage and Charge Indicator
4 Fuel Level and Low Fuel Indicator
Engine Oil Pressure and Low Oil Pressure
5
Indicator
6 DEF Level and Indicator
7 Operator Presets Loaded Indicator
Hydraulic Oil Temperature and High Oil
8
Temperature Indicator
9 Engine Stop Indicator
10 Engine Warning Indicator
11 Engine MIL (Malfunction Indicator Lamp)
12 High Exhaust System Temperature Indicator
13 Engine Regen Needed Indicator
3-14
Description
Published 02-06-2014, Control # 495-00
TMS800E13 OPERATOR MANUAL
Item
14 Engine Regen Inhibit Indicator
15 Park Brake Indicator
16 Swing Brake Engaged Indicator
17 Emergency Stop (E-Stop) Indicator
18 Menu Selection Button
19 Fault Screen Shortcut Button
20 Hydraulic Pump Engaged Indicator
21 Low Air Pressure Indicator
22 Center Front Stabilizer Overload Indicator
23 Module Offline Indicator
24 Electrical Diagnostic Indicator
25 Crane Control Status Indicators
Engine RPM (1) (Figure 3-4)
The current speed of the engine as broadcasted by the
Engine ECM.

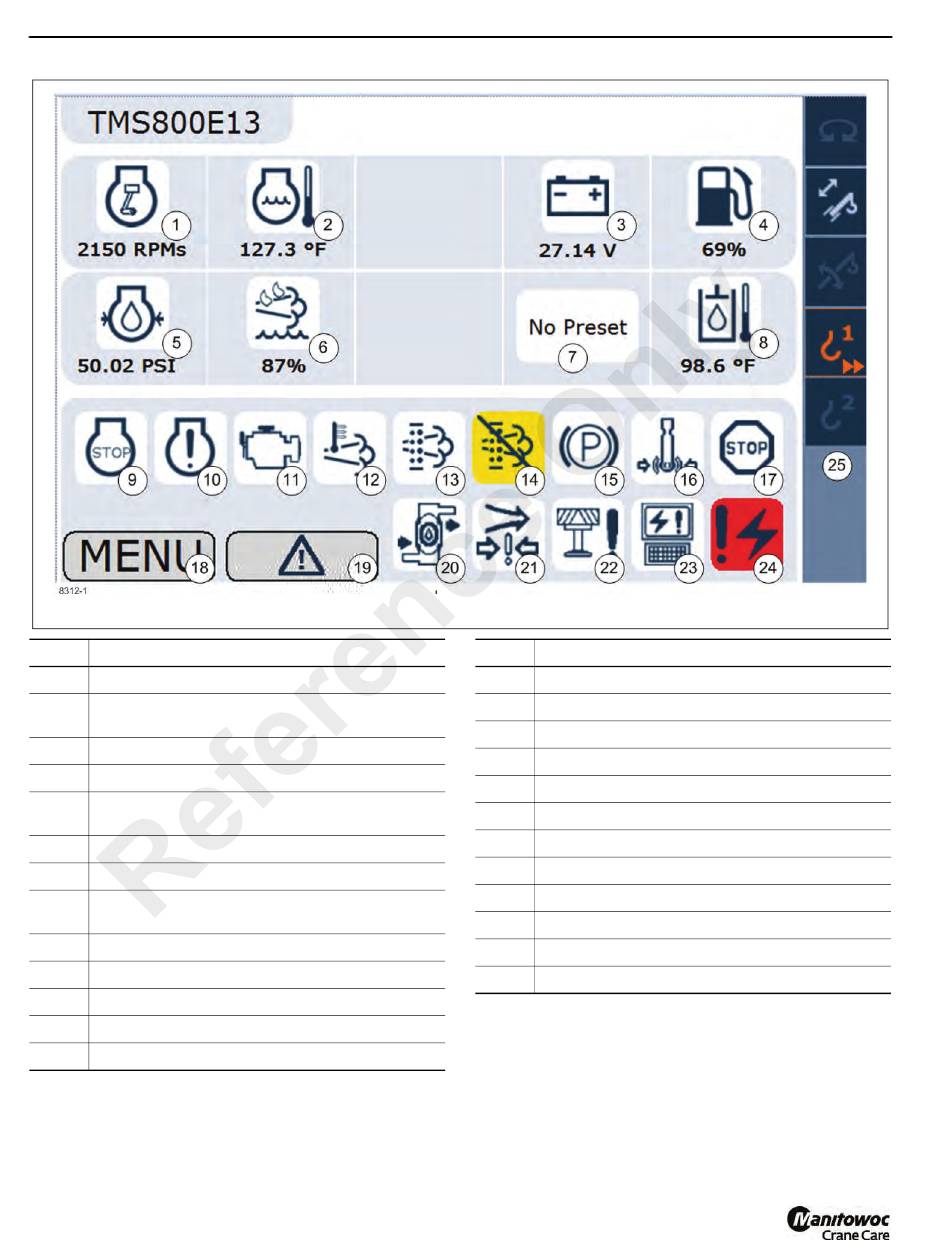

FIGURE 3-4
Description
