OPERATING CONTROLS AND PROCEDURES
Modify Presets Screens
The modify presets screens allows the operator to modify or
reset, then save the currently loaded preset. The presets are
arranged in tabular format and are defined from top to
bottom as: boom raise/lower, tele extend/retract, swing
Item
1
Engine Fault Active Indicator
2
System Fault Active Indicator
3
Currently Loaded Preset
4
Crane Function Threshold Offset
5
Crane Function Max Percent Output
6
Crane Function Curve Response
7
Edit Currently Loaded Presets
8
Reset Currently Loaded Presets
9
Save Currently Loaded Presets
10
Escape
Engine Fault Active Indicator (1) (Figure 3-7)
This indicator will become visible whenever there is an active
engine fault. The operator should return to the fault screen to
view the active fault(s).
3-20
Description
Published 02-06-2014, Control # 495-00
TMS800E13 OPERATOR MANUAL
clockwise (right)/counter-clockwise (left), main hoist raise/
lower, and aux hoist raise/lower (NOTE: the aux hoist will
only be visible if Aux Hoist is enabled in the crane control
EEPROMs).

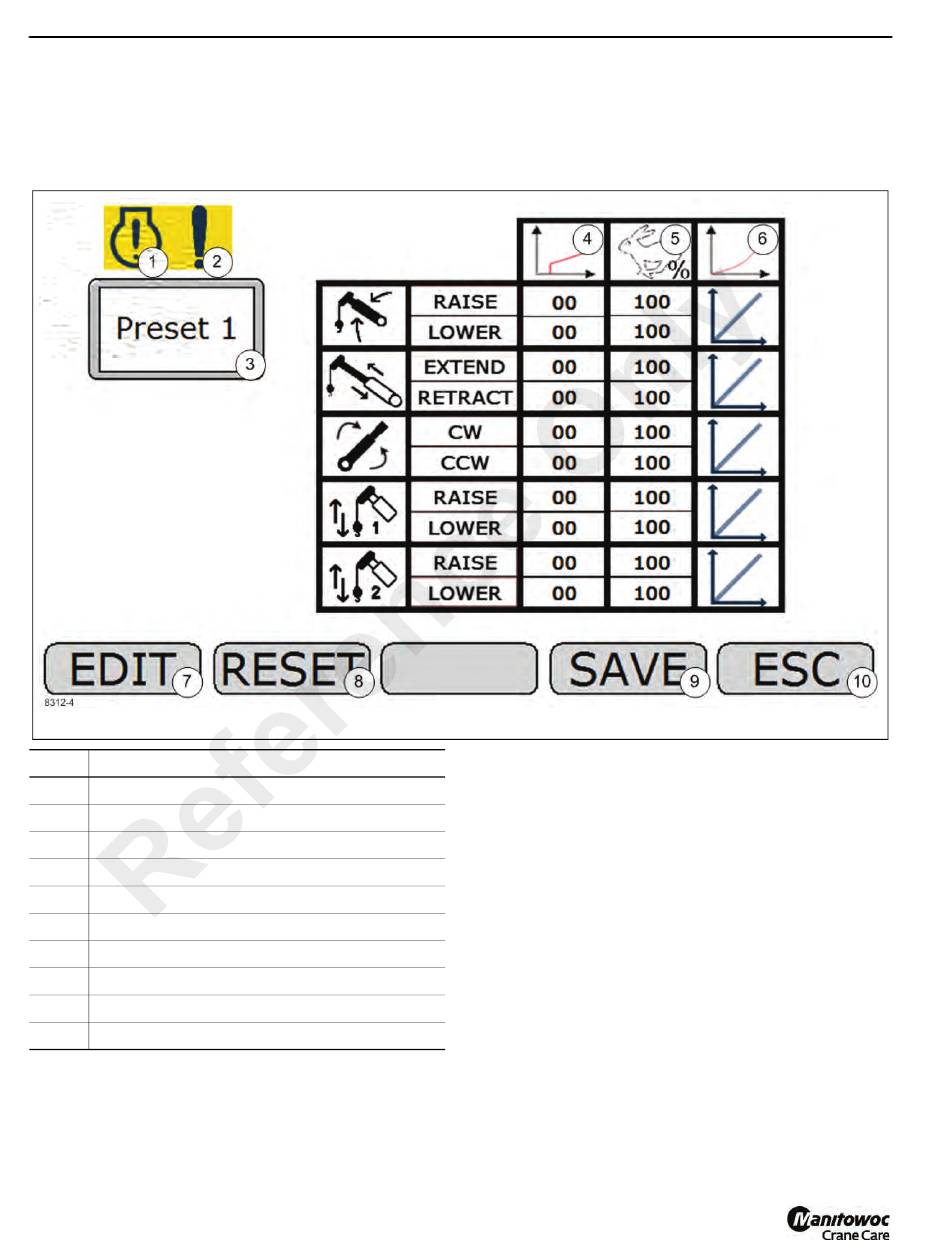

Modify Presets Screen 1 (Figure 3-7)
System Fault Active Indicator (2)
This indicator will become visible whenever there is an active
system fault. The operator should return to the fault screen to
view the active fault(s).
Currently Loaded Preset (3)
The loaded presets that can be modified.
Crane Function Threshold Offset (4)
The threshold value is the point in joystick/pedal movement
where the crane function starts moving. The range of this
preset is from -50 to 50 with 0 being the default. A more
negative number will result in the threshold value being
achieved with more joystick/pedal movement while a more
positive number will result in the opposite effect.
Crane Function Max Percent Output (5)
The maximum output percentage is 100% at full joystick/
pedal deflection. The range of this preset is from 0 to 100%.
Reduction of this preset results in the overall reduction in
speed of the crane function.
FIGURE 3-7
