SET-UP AND INSTALLATION
Install cable on the hoist drum in accordance with the
following procedure.
1. Position the cable over the boom nose sheave and route
to the hoist drum.
2. Position the hoist drum with the cable anchor slot on top.
3. Insert the cable through the slot and position around the
anchor wedge Figure 4-1.
NOTE: The end of the cable should be even with the
bottom of the anchor wedge.
4. Position the anchor wedge in the drum slot; pull firmly on
the free end of the cable to secure the wedge.
NOTE: If the wedge does not seat securely in the slot,
carefully tap the top of the wedge with a mallet.
5. Slowly rotate the drum, ensuring the first layer of cable is
evenly wound onto the drum.
6. Install the remainder of the cable, as applicable.
Anchor
Wedge
3155a

CABLE REEVING

NOTE: There are two types of cable (wire rope) available
on this crane; 6 x 36 WS and 35 x 7 (non-rotating).
Within the limits of the load and range charts and permissible
line pull, multi-part lines allow the operator to raise a greater
load than can be raised with a single part line. Various cable
reeving (part line) is possible with the boom nose and hook
block Figure 4-6 and Figure 4-7. This reeving should be
accomplished by a qualified rigger using standard rigging
procedures.
2
Do not reeve Auxiliary Hoist rope through the rope grab.
Do reeve the Main Hoist rope through the rope grab. If
both Main & Auxiliary Hoists are being reeved, neither one
may be reeved trough the rope grab. Keep it in the down
position. Figure 4-2
NOTE:
To quick reeve the hook block without removing the wedge

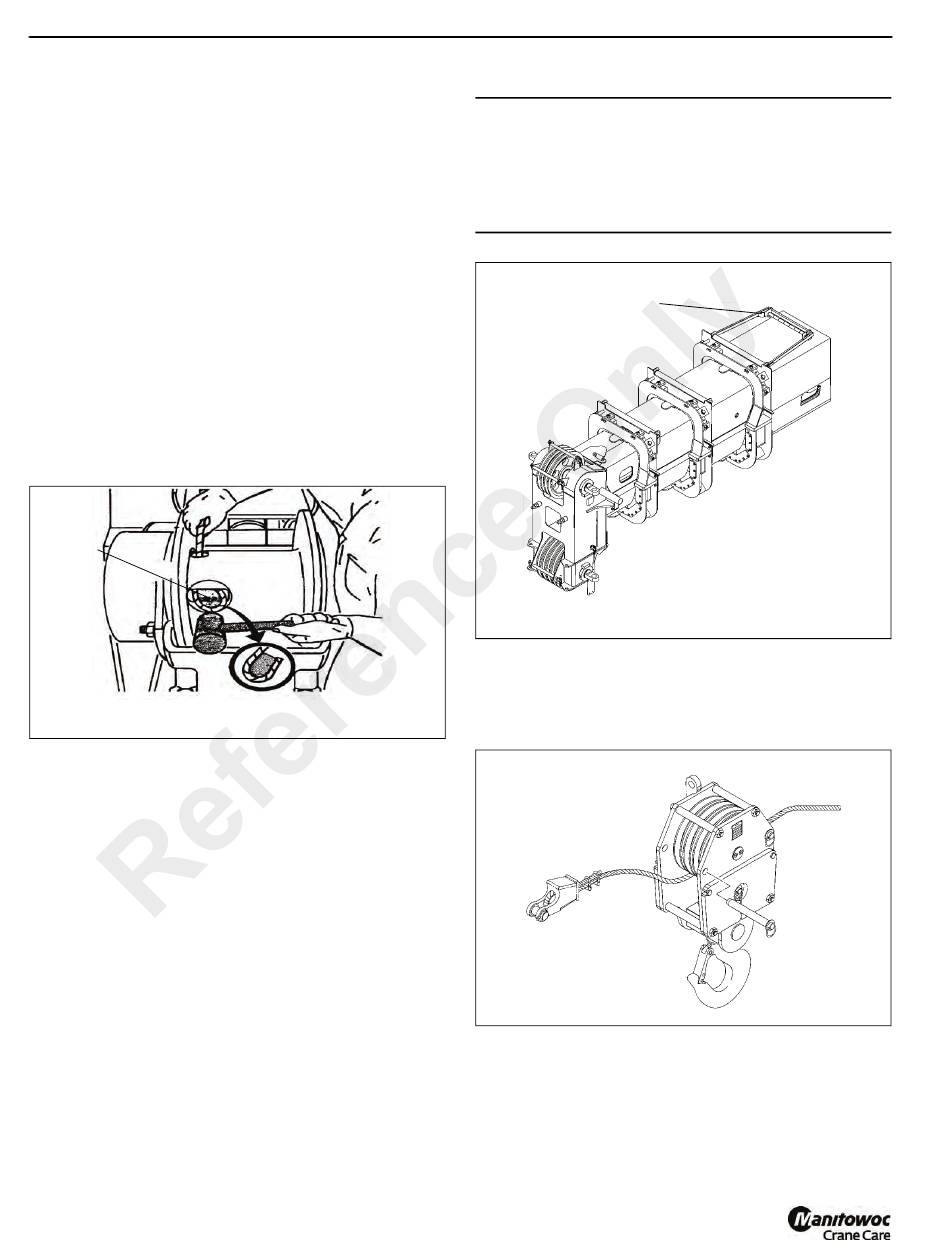

FIGURE 4-1
socket on the end of the cable refer to Figure 4-3.
Published 02-06-2014, Control # 495-00
TMS800E13 OPERATOR MANUAL
CAUTION
Rope Grab
Also use the rope grab when using the Main Hoist
with lattice extensions.
6769
FIGURE 4-2
FIGURE 4-3
