TMS800E13 OPERATOR MANUAL

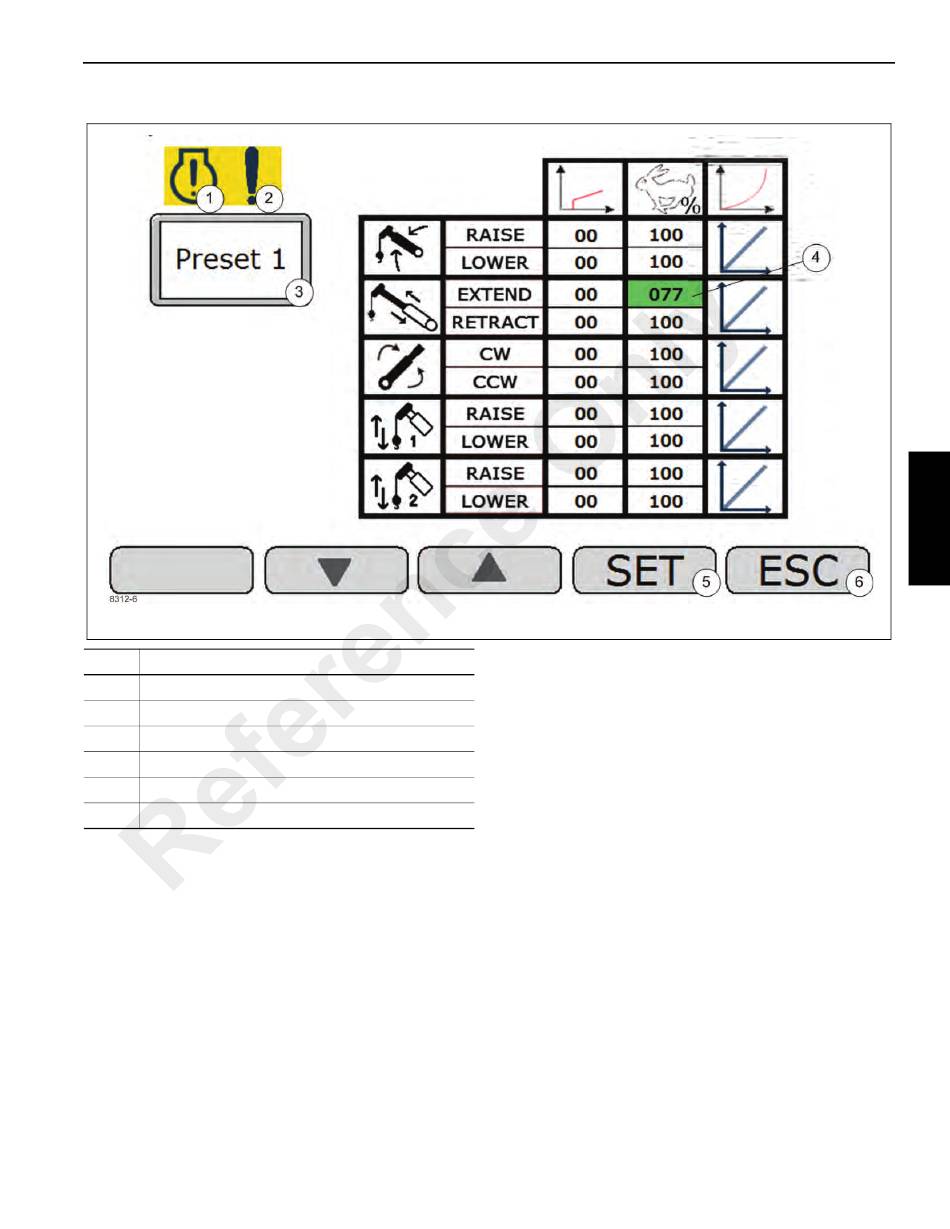

Modify Presets Screen 3 (Figure 3-9)
Item
1 Engine Fault Active Indicator
2 System Fault Active Indicator
3 Currently Loaded Preset
4 Select Currently Highlighted Parameter
5 Edit Currently Highlighted Parameter
6 Escape
Engine Fault Active Indicator (1) (Figure 3-9)
This indicator will become visible whenever there is an active
engine fault. The operator should return to the fault screen to
view the active fault(s).
System Fault Active Indicator (2)
This indicator will become visible whenever there is an active
system fault. The operator should return to the fault screen to
view the active fault(s).
GROVE
Description
Published 02-06-2014, Control # 495-00
OPERATING CONTROLS AND PROCEDURES
Currently Loaded Preset (3)
The loaded presets that can be modified.
Currently Highlighted Parameter (4)
The parameter being edited will be highlighted green. The
operator can modify the preset using the up and down arrow
buttons. Pressing and holding either of these buttons will
increase the rate the parameter value changes.
Set Currently Highlighted Parameter (5)
The modified parameter will be temporarily stored and the
screen will transition back to "Modify Presets Screen 2". The
operator will be able to continue modifying parameters in this
fashion until finished.
Cancel Parameter Edit (6)
Pressing the escape button at this point will ignore all
modifications made to a parameter and return the operator to
"Modify Presets Screen 2". The operator will be able to
continue modifying parameters in this fashion until finished.
3
FIGURE 3-9
3-23
