OPERATING CONTROLS AND PROCEDURES

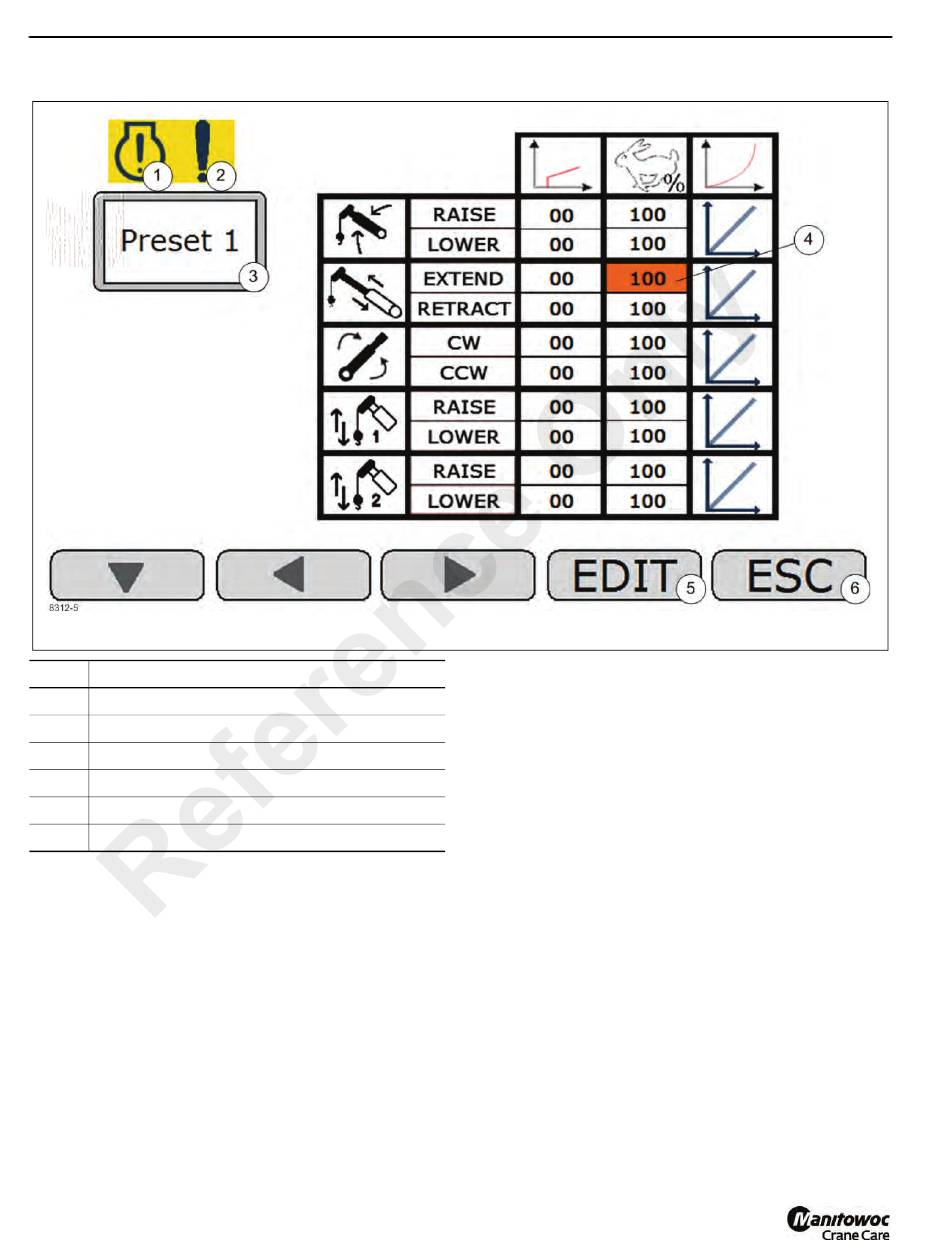

Modify Presets Screen 2 (Figure 3-8)
Item
1 Engine Fault Active Indicator
2 System Fault Active Indicator
3 Currently Loaded Preset
4 Select Currently Highlighted Parameter
5 Edit Currently Highlighted Parameter
6 Escape
Engine Fault Active Indicator (1) (Figure 3-8)
This indicator will become visible whenever there is an active
engine fault. The operator should return to the fault screen to
view the active fault(s).
System Fault Active Indicator (2)
This indicator will become visible whenever there is an active
system fault. The operator should return to the fault screen to
view the active fault(s).
3-22
Description
Published 02-06-2014, Control # 495-00
TMS800E13 OPERATOR MANUAL
Currently Loaded Preset (3)
The loaded presets that can be modified.
Select Currently Highlighted Parameter (4)
The parameter ready to be edited will be highlighted orange.
Only one parameter at a time will be active and able to be
edited. In this navigation mode, all parameters (threshold,
max, and curve response) can be edited.
Edit Currently Highlighted Parameter (5)
The operator will now be able modify the preset value. The
screen will transition to "Modify Presets Screen 3".
ESC (6)
Pressing the escape button at this point will return the
operator to the main preset modification screen ("Modify
Presets Screen 1"). No parameters will be highlighted and
the operator will have the options to edit, reset, save, or
escape to the menu screen.
FIGURE 3-8
