TMS800E13 OPERATOR MANUAL
4. Stow the upper attach pins in the bushings on the side of
the superstructure.
5. Push in, turn, and remove the long pins from the bottom
of the counterweight.
6. Using the switch panel, slowly lower the counterweight
onto the carrier stowage area.
1
10
16
6
GROVE
12
5
10
6
7
Published 02-06-2014, Control # 495-00
SET-UP AND INSTALLATION
7. Insert the long pins through the carrier lugs and
counterweight. Push in and turn to lock pin in the notch.
8. Remove the attach pins from the counterweight lugs and
cylinder ends. Raise the cylinders and stow the attach
pins in cylinder and insert retainer clip pins.
9. The carrier is now ready for highway travel with the
counterweight stowed.
13
11
1
6, 8
2, 3, 4
9
14
11
5
6533

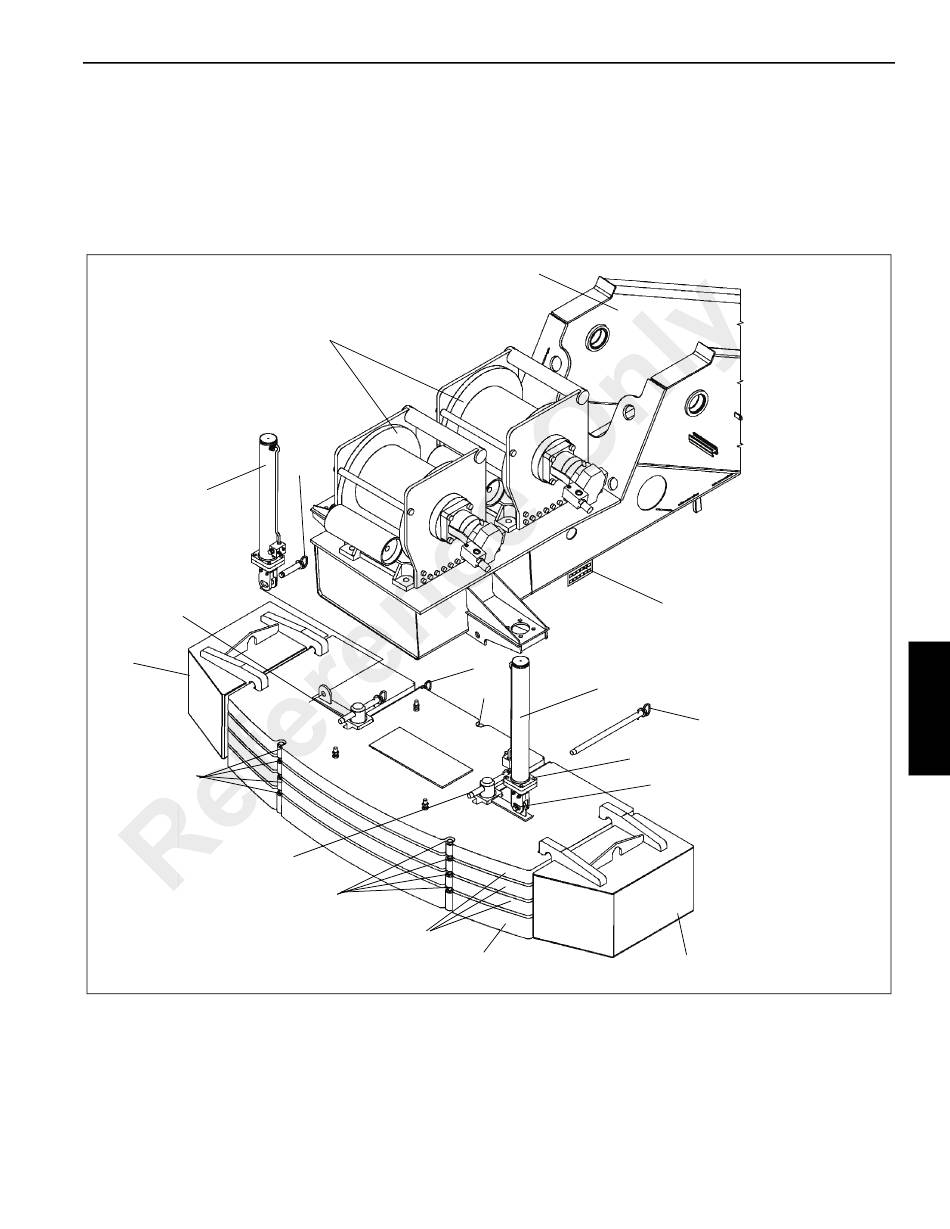

FIGURE 4-9
15
4
9
