Manitowoc Grove TMS800E13 Operator's Manual page 130

SET-UP AND INSTALLATION
10.1 m (33 ft) Jib

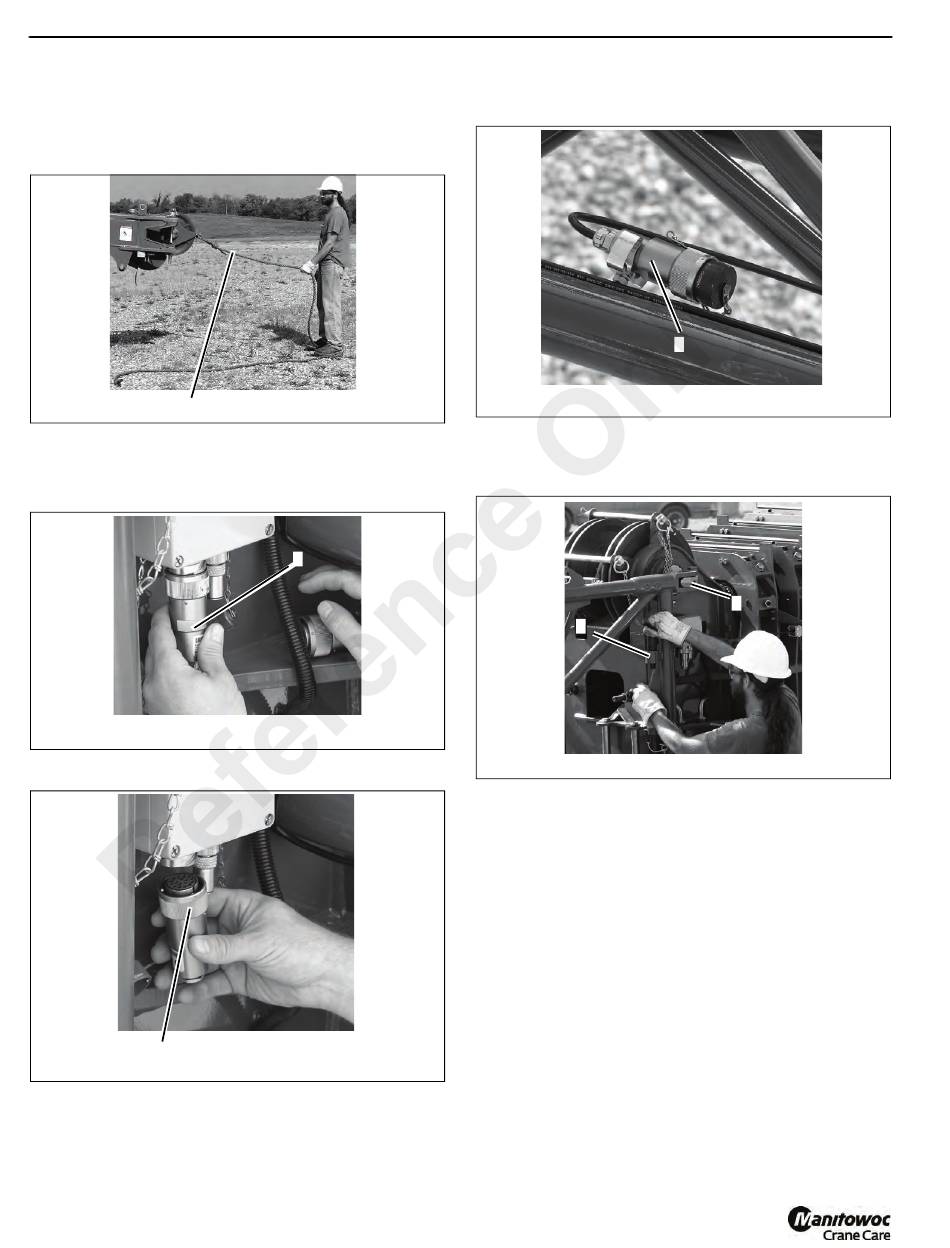

1. Lower boom and secure tag line (1, Figure 4-41) to tip of
jib. Figure 4-41 shows the 7 m (23 ft) and 10.1 m (33 ft)
extension together.
6642-30
1
2. Disconnect RCL Cable.
a. Remove connector (1, Figure 4-42) from junction
box on boom nose.
6642-21
b. Install dummy plug (1, Figure 4-43) on junction box.
1
6642-20
20
FIGURE 4-41
1
FIGURE 4-42
FIGURE 4-43
Published 02-06-2014, Control # 495-00
TMS800E13 OPERATOR MANUAL
c. Route cable through jib and stow connector (1,
Figure 4-44).
6642-19
3. Remove two pins attaching the jib to the left side of
boom nose (2, Figure 4-45). Stow the pins in the jib pin
holders (1) and install the retainer clips.
1
6642-31
4. Completely retract boom.
5. Extend boom approximately 60.9 cm (2 feet).
6. Raise boom above horizontal.
NOTE: Step 7 is stowing with the 7 m (23 ft) section and
10.1 m (33 ft) section together. If the 7 m (23 ft)
section remained on the boom, proceed to step 9.
7. Use the tag line to maintain control of the jib, and swing
the extension into the stowed position Figure 4-46.
1
FIGURE 4-44
2
FIGURE 4-45
