TMS800E13 OPERATOR MANUAL

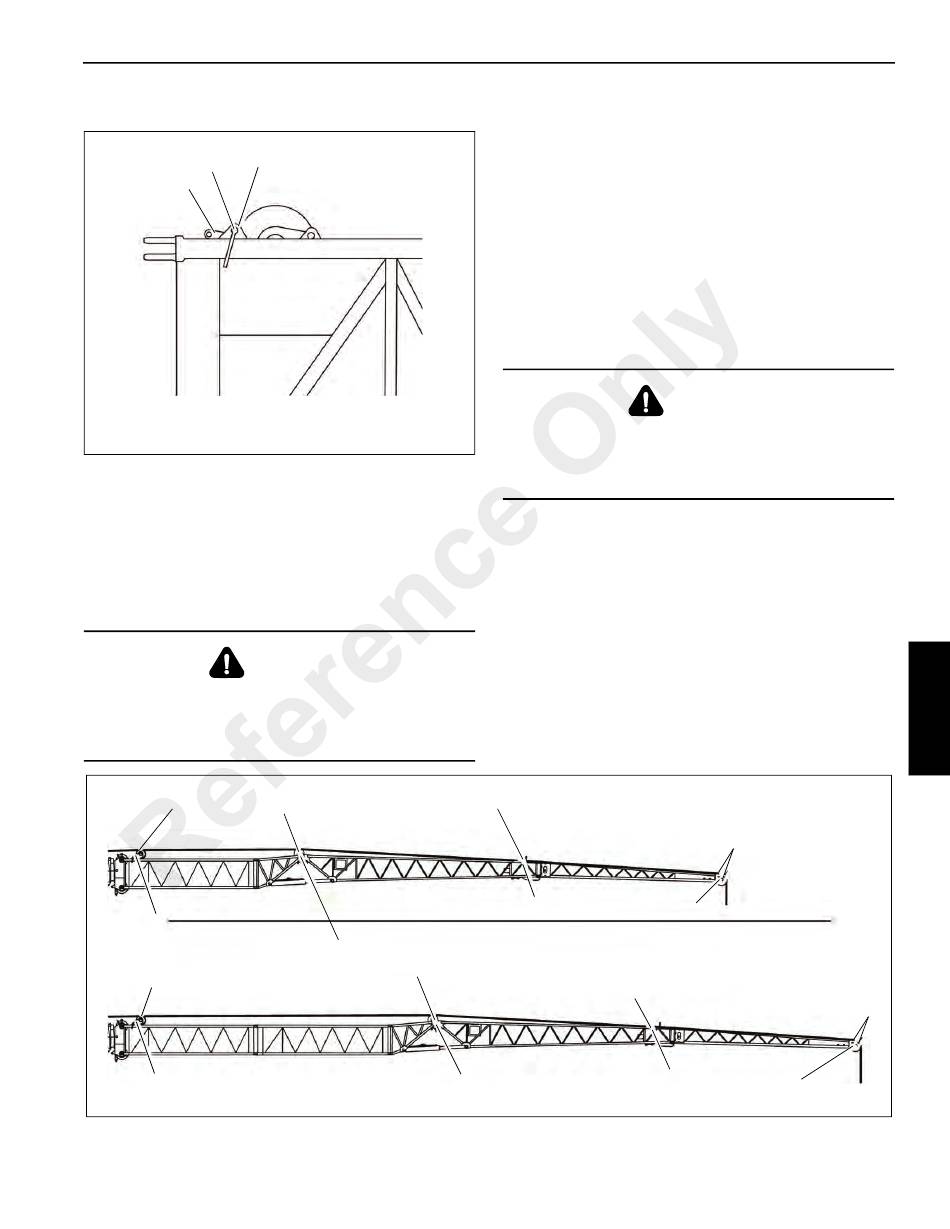

Folding In Deflection Sheave
3
2
1
1.
Hold the deflection sheave by the strut (1) and remove
the pin (3) from the bore (2) (Figure 4-65).
2.
Fold the deflection sheave down as far as possible.
3.
Insert the pin in the bore hole (3) and secure it with a
retaining clip.

Positioning/Removing the Hoist Cable

Risk of accidents due to falling parts.
Always secure the hoist cable holding rollers and rods
with retaining pins. This prevents elements from
becoming loose, falling down and injuring people.
1
5
1
5
w3359a
GROVE
w3353a
FIGURE 4-65
CAUTION
1
4
1
Published 02-06-2014, Control # 495-00
Positioning Hoist Cable
Remove the hoist rope holding rollers and rods (1)
(Figure 4-66).
Guide the hoist rope via the deflection sheaves (3) and
via the head sheave (2) on the 10.1 m (33 ft) section or
on the 7 m (23 ft) section. Put all hoist cable holding
rollers and rods back in place and secure these with
retaining pins.
Attach the overhaul ball.
Install the A2B weight assembly.
Removing Hoist Cable
Risk of accidents due to falling parts.
Always secure the hoist cable holding rollers and rods
with retaining pins. This prevents elements from
becoming loose, falling down and injuring people.
Unpin the overhaul ball.
Remove the hoist rope holding rollers and rods (1)
(Figure 4-66).
Take the hoist cable off the head sheave (2) and the
deflection sheaves (3) and place it onto the ground on
the left side.
Put all hoist cable holding rollers and rods back in place
and secure them with retaining pins.
1
3
1
4
SET-UP AND INSTALLATION
CAUTION
1
2
3
2
FIGURE 4-66
4
1
31
