OPERATING CONTROLS AND PROCEDURES

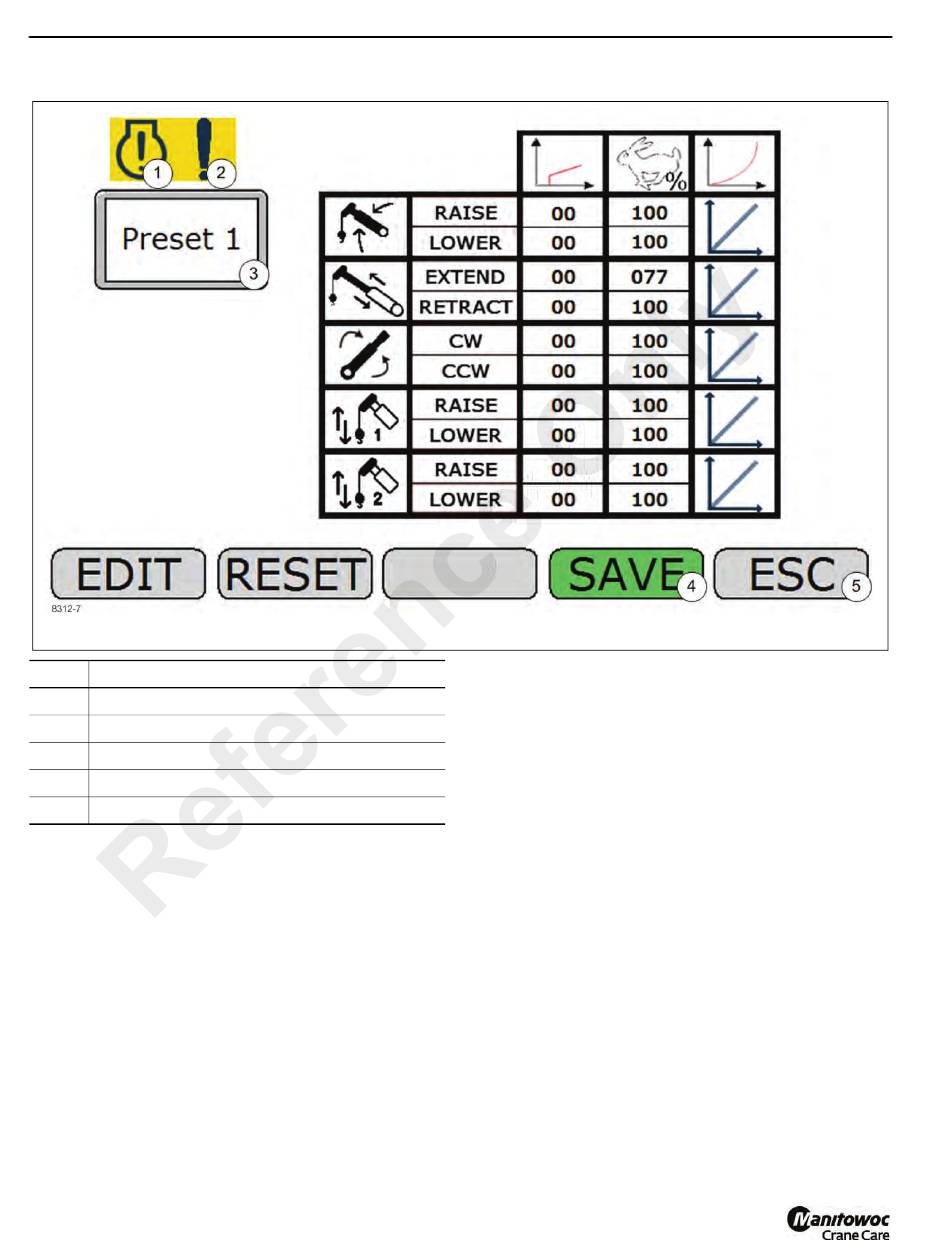

Modify Presets Screen 4 (Figure 3-10)
Item
1 Engine Fault Active Indicator
2 System Fault Active Indicator
3 Currently Loaded Preset
4 Select Currently Highlighted Parameter
5 Escape
Engine Fault Active Indicator (1) (Figure 3-10)
This indicator will become visible whenever there is an active
engine fault. The operator should return to the fault screen to
view the active fault(s).
System Fault Active Indicator (2)
This indicator will become visible whenever there is an active
system fault. The operator should return to the fault screen to
view the active fault(s).
3-24
Description
Published 02-06-2014, Control # 495-00
TMS800E13 OPERATOR MANUAL
Currently Loaded Preset (3)
The loaded presets that can be modified.
Save Modified Parameters (4)
Once the operator has pressed the save button (when on
"Modify Presets Screen 1"), all modified parameters will be
saved to their respective EEPROM locations and the button
will turn green to indicate the save is complete. The operator
now has the options to edit the parameters again, reset the
parameters, or escape back to the menu screen.
ESC (5)
Pressing the escape button at this point will return the
operator to the menu screen. If the save button was not
pressed prior to this button, any changes made to the
presets will be ignored.
FIGURE 3-10
