SET-UP AND INSTALLATION
On the 17.1 m (56 ft) Two-Stage Swingaway Lattice
Extension
3
NOTE: For operation with the 17.1 m (56 ft) two-stage
swingaway lattice extension the connection for the
lifting limit switch on the 10.1 m (33 ft) section must
be overridden with a short-circuit plug.

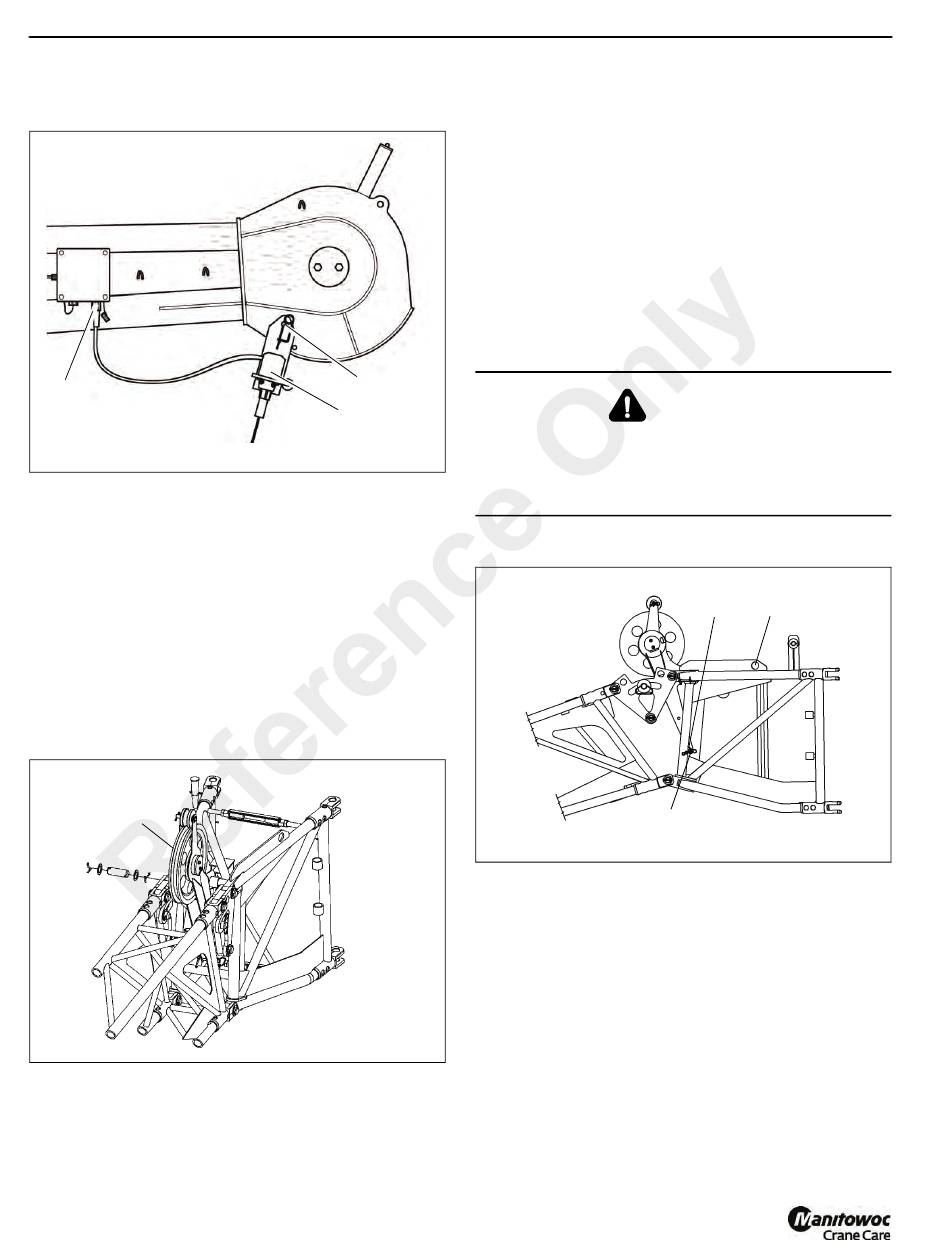

• Attach the lifting limit switch (2) on the shackle (1) and
secure it with a retaining pin (Figure 4-54).
• Connect the lifting limit switch on the socket (3).
• When stowing, close the socket (3) with the protective
cap.
Folding Out/In the Deflection Sheaves on the
10.1 m (33 ft) Section
1
To prevent the hoist rope dragging on the main boom or
lattice extension during operation with the lattice extension
or jib, the hoist rope is guided via deflection sheaves.
24
1
2
FIGURE 4-54
w1525a
6621
FIGURE 4-55
Published 02-06-2014, Control # 495-00
TMS800E13 OPERATOR MANUAL
On the 10.1 m (33 ft) section, there is a deflection sheave at
the rear (1, Figure 4-55). Fold out the deflection sheave if the
jib offset angle is 20° or 40°.
NOTE: For zero (0) degree offset, leave the mast
assembly in the stowed position.
The sheave must be folded out:
• for operation with the swingaway lattice extension,
• for operation with the 17.1 m (56 ft) two-stage
swingaway lattice extension.
For transportation the mast sheave must be folded in.
Folding Rear Deflection Sheave
Risk of crushing.
Always hold the deflection sheave by the handle, when
removing the pin. You might get your fingers crushed if
you hold the sheave by the side plates.
Folding Out Deflection Sheave
• Remove the pin (2) from the bore (1). Figure 4-56
• Fold the deflection sheave up and secure it with the pin
in the bore (3).
• Secure the pin with a retaining pin.
Folding In Deflection Sheave
• Remove the pin (2) from the bore (3).
• Fold the deflection sheave down and insert the pin in the
bore (1).
• Secure the pin with a retaining pin.
CAUTION
3
1
2
6568-4
FIGURE 4-56
