Matrix Editing

23.23
Product
Gateway 4
Gateway
8/16
The Matrix Editor in the codec allows any input to be routed to any output. Default routing settings
are configured for each program type and these default matrices can be edited, saved and recalled
as required. All saved custom matrices are available if a compatible program is loaded. If a matrix is
not compatible with a program type it will not be visible in the menu, e.g. a saved stereo matrix is not
visible when a mono program is loaded.
Custom matrices can be created, saved and then backed up with program and scheduler data. This
allows them to be copied between codecs by using the
Viewing the Matrix Editor
Open the HTML5 Toolbox Web-GUI and click Audio in the Menu Bar, then click Matrix Editor to
open the Matrix Editor panel. In the following image the default stereo matrix for the Gateway 8 is
loaded, as indicated at the top of the panel. The Gateway 4 codec will only display 4 inputs and
outputs only.
The Gateway codec supports more channels and these are displayed in an expanded matrix in the
panel. When a codec is
outputs, encoders and decoders as per the license upgrade.
© Tieline Research Pty. Ltd. 2021
Feature Notification
Matrix Editor The Gateway 4 codec supports 4 audio channels only and this
panel cannot be upgraded or expanded. 4 inputs and outputs are
displayed in the Gateway 4 Matrix Editor panel.
Matrix Editor The Gateway displays between 8 and 16 channels in the Matrix
panel Editor panel based on the number of channels purchased. If a
codec supports fewer than 16 channels, it can be upgraded to
support more channels by purchasing a channel license upgrade
from Tieline and installing it in the codec.

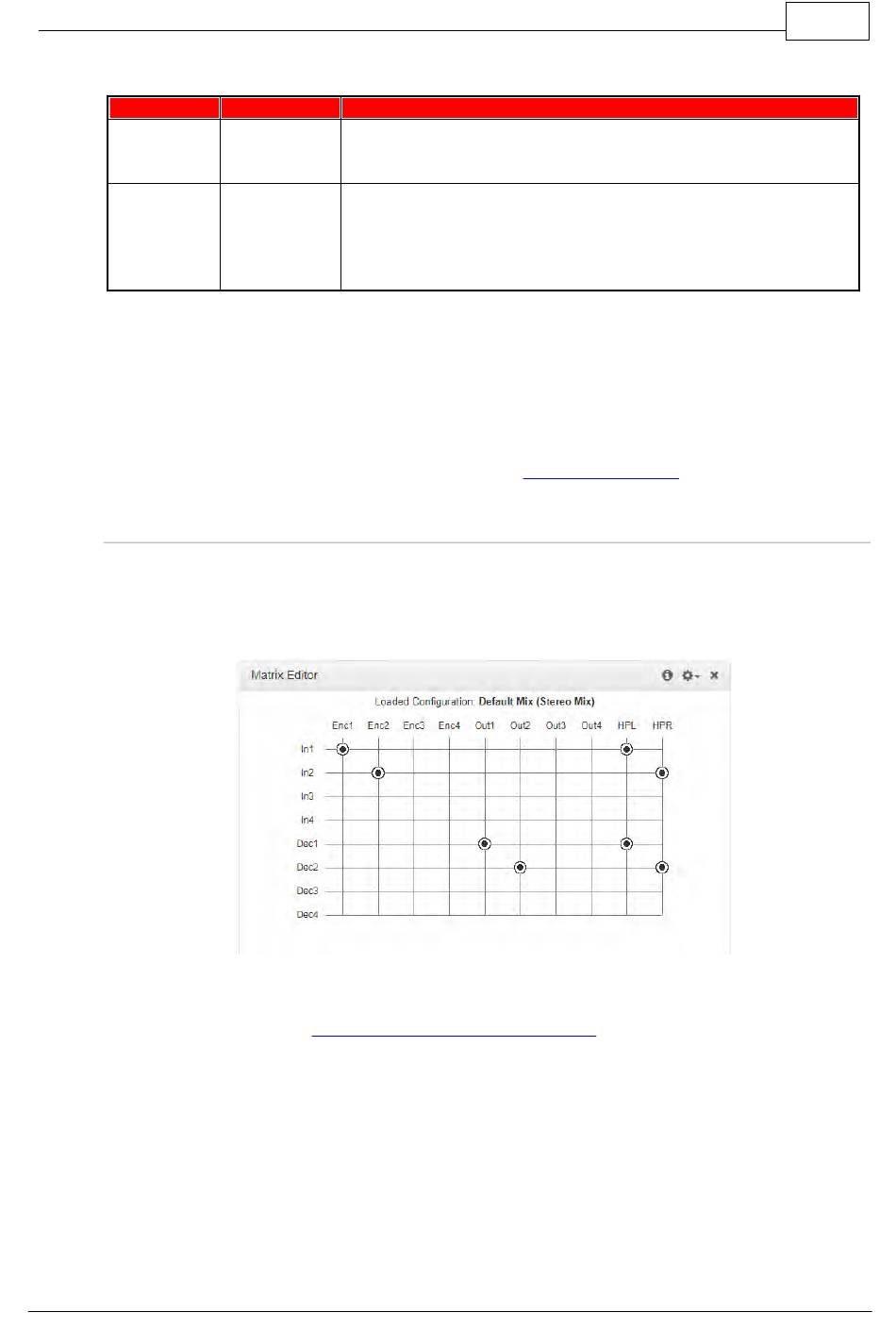

Default Stereo Matrix for Gateway-4 codec
upgraded to support more channels
Gateway and Gateway 4 Manual v1.2
Backup and Restore
the matrix displays more inputs,
179
