To enable or disable an interface select the Enable check-box when in Edit mode, then click Save.
LAN1 and LAN2 are enabled by default. Please note that the Status LED color indicates the status
of each network interface.
1. Any interface with a grey Status LED indication is disabled.
2. Any interface with a green Status LED indication is enabled and active.
3. Any interface with an amber Status LED indication is enabled and attempting to connect.
4. Any interface with a red Status LED indication is enabled and unavailable for some reason,
e.g:
· Ethernet cable is not connected.
· Incorrect configuration, e.g. VLAN Identifier not correct.
· Wi-Fi access point is not selected.

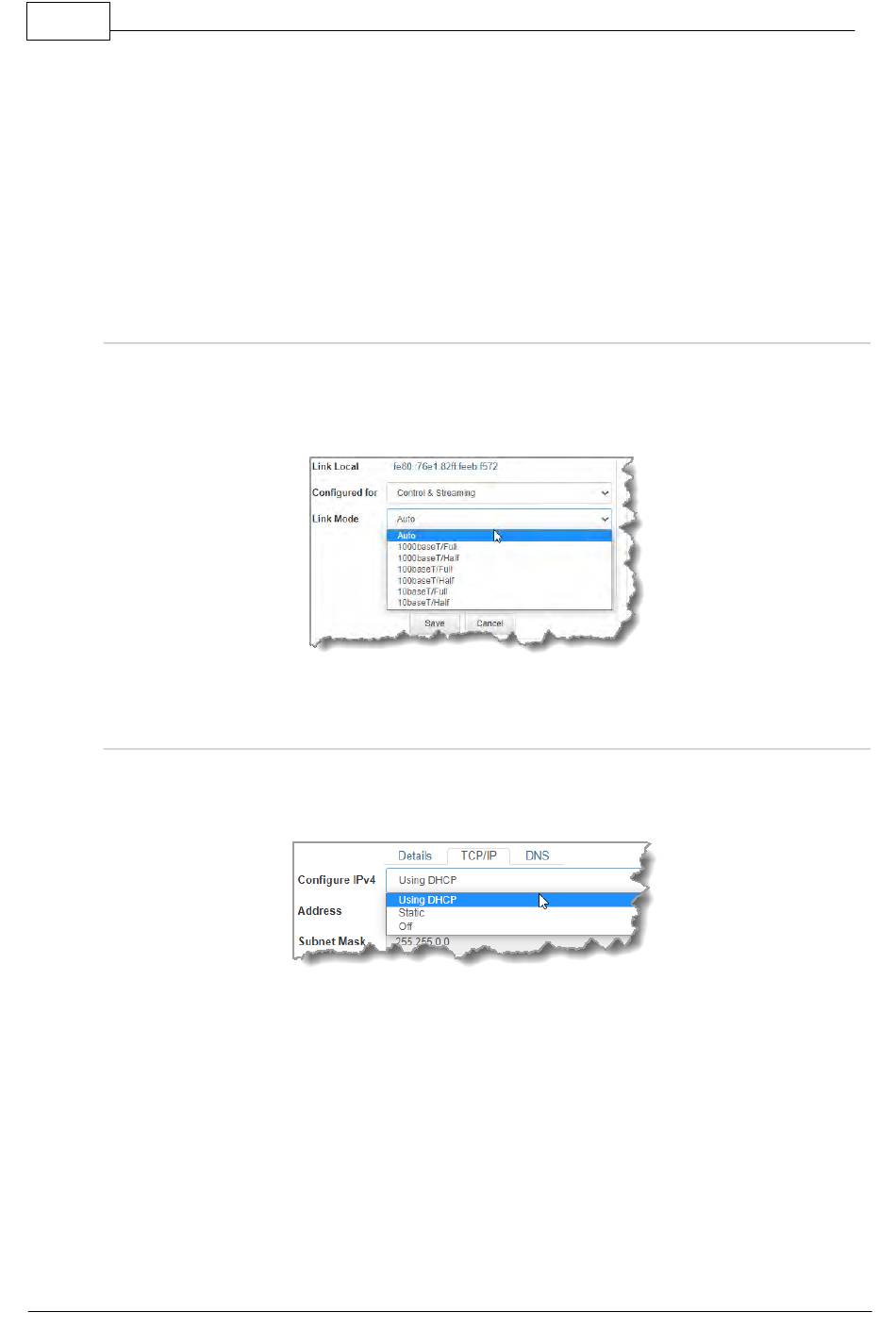

Configure Link Mode
It is possible to configure the Ethernet link speed (10/100/1000/Auto) and whether each available
interface operates in full-duplex or half-duplex modes.
1. Click the drop-down Link Mode arrow and select the preferred setting.
2. Click Save to store the new setting.
IPv4 Address Configuration
Click to select the TCP/IP tab in the Network panel to configure settings. The codec is capable of
automatic DHCP address assignment, or manually configured static IPv4 address configuration via
the Configure IPv4 drop-down menu. To ignore IPv4 settings select Off.
DHCP IP addresses are automatically assigned and can change each time you connect to your
Internet Service Provider, or to your own local area network (LAN). By default the codec is
configured for DHCP-assigned IP addresses.
