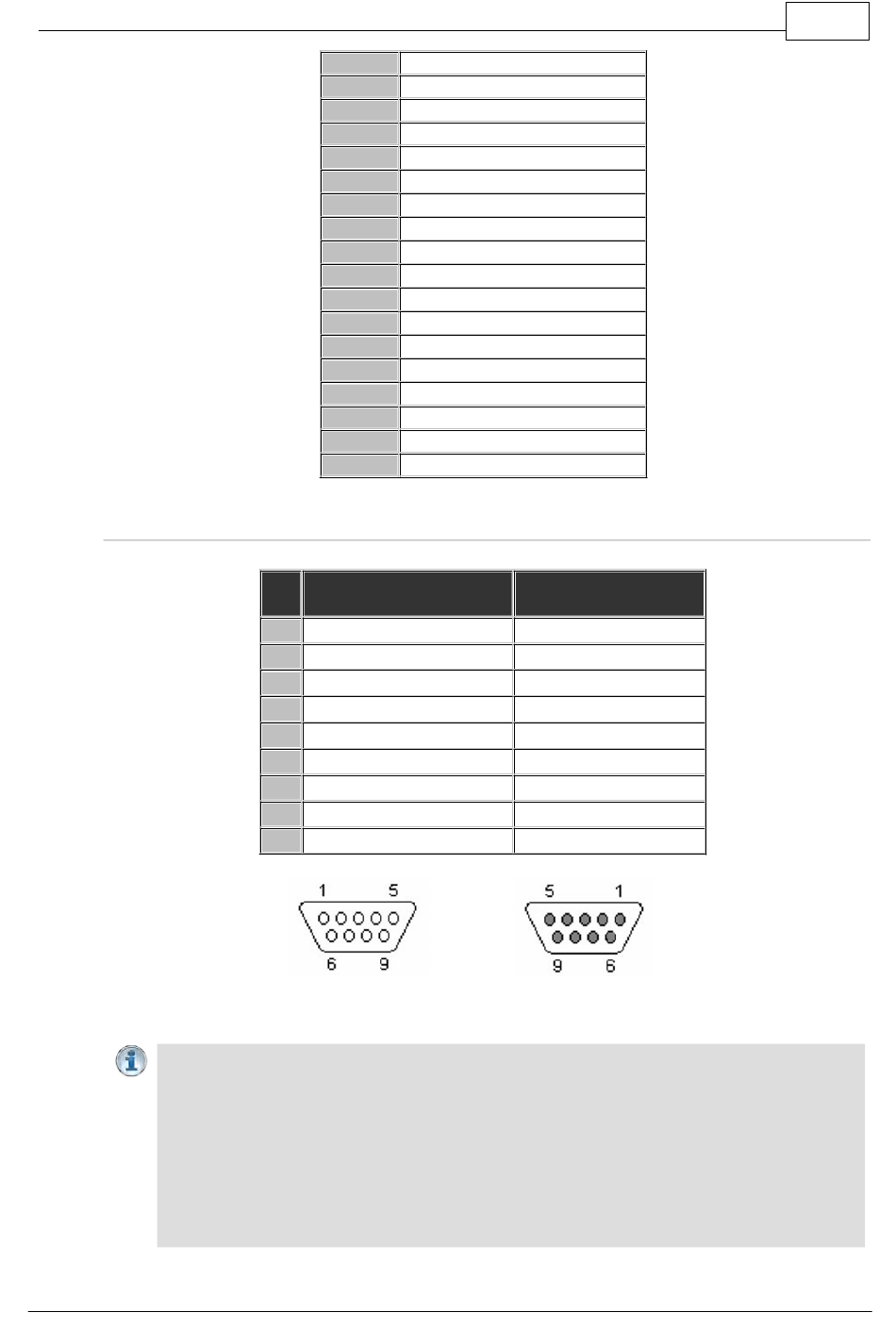

RS232 Pin-outs and Data Connections
Important Notes:
· It is important that you enable serial port flow control within the codec. Flow control
regulates the flow of data through the serial port. If disabled, data will flow unregulated and
some may be lost.
· Ensure you match the serial port baud rate to match the rate of the external device you are
connecting to. Ideally the settings on both codecs should match, or you could have data
overflow issues.
© Tieline Research Pty. Ltd. 2021
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Pin INTERFACE Female
DB9 (RS232) DCE
1 No Connection
2 TX Data
3 RX Data
4 No connection
5 Signal Ground
6 No Connection
7 CTS
8 RTS
9 No connection
DB9 Male
Connector Pins
Gateway and Gateway 4 Manual v1.2
Output 16
Input 9
Input 11
Input 13
Input 15
Ground
Output 9
Output 10
Output 11
Output 12
Output 13
Output 14
Output 15
Output 16
Input 10
Input 12
Input 14
Input 16
DATA Male DB9
(RS232) DTE
No connection
RX Data
TX Data
No connection
Signal Ground
No connection
RTS
CTS
No connection
DB9 Female
Connector Pins
