Important Notes: When you use an existing program as a template, the new program
inherits all the settings of the template program and you can adjust these settings as
required by continuing through the program wizard.

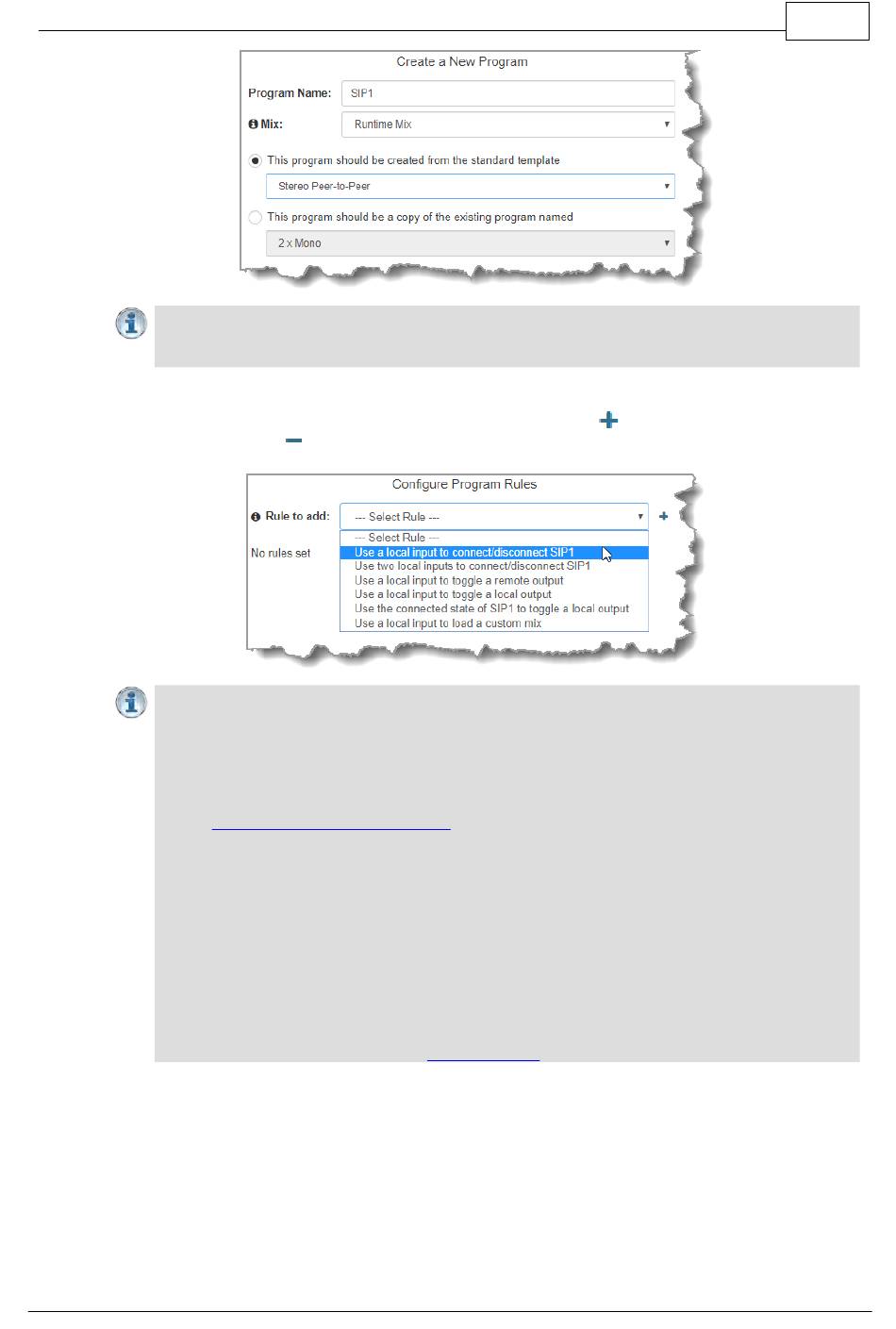

3. To configure new program level rules click the drop-down arrow and select the preferred
option from those available. Click the blue Plus symbol
Minus symbol
Important Notes for Rules:
· The Gateway 4 codec has 8 hardware GPIOs and 56 logical outputs, and the Gateway
8/16 has 16 hardware GPIOs and 48 logical outputs; both codecs also have 3 virtual
inputs, and 64 WheatNet Logic Inputs/Outputs. (WheatNet logic I/Os allow Tieline
WheatNet-IP enabled codecs to activate functions across a WheatNet-IP network.
WheatNet logical inputs are only available if a codec has a WheatNet-IP card installed).
See
· Virtual inputs 5-7 can be activated by pressing the F1 button and KEYPAD buttons 1-3.
· A non-WheatNet-IP Tieline codec can be configured to trigger a WheatNet LIO in a Tieline
WheatNet-IP codec.
· Tieline WheatNet-IP codecs require Wheatstone Razor firmware version 1.4.22 or later to
support WheatNet LIOs. In addition, the WheatNet-IP codec must have the WNet Enable
LIO checkbox selected in the Options panel of the HTML5 Toolbox Web-GUI.
· Relay reflection is not available for SIP and Multicast Client programs.
· Connection-related rules are not displayed in Answer only audio streams.
· Program level rules intended to activate dialing are not valid in Answer only programs or
audio streams.
· For more details about rules see
4. Enter the Stream Name and configure the codec to dial, answer or dial and answer. Then
click Next.
Note: The following example will display how to configure a dial and answer program. If you want the
codec to either dial or answer only, select the option and the wizard will automatically display
screens to allow you to configure the codec correctly. Please note that caller ID, dial routes,
