Configuring Output Settings

23.8
Product
Gateway 4
Gateway 4
Gateway
8/16
Gateway
8/16
The Outputs panel can be configured to support either analog or digital output types for outputs 1
to 4 (Gateway 4) or outputs 1 to 8 (Gateway 8/16). Configuration of the digital output type, either
AES3 or AES67, is global and is configured for all 16 Gateway outputs using the Audio Options
panel.
Selecting the Global Digital Output Type
To select the digital output type for all outputs:
1. Open the HTML5 Toolbox Web-GUI and click Audio in the Menu Bar, then click
2. Click the Digital Output Type drop-down menu and select either Audio Over IP
Feature Notification
Outputs Outputs 1-4 can be configured as analog or digital inputs (AES3 or
AES67) in pairs
Web-GUI 4 Outputs and PPMs displayed
Outputs panel
Outputs Inputs 1-8 can be configured as analog or digital inputs (AES3 or
AES67) in pairs
Web-GUI 8 - 16 Outputs and PPMs displayed (depending on codec
Outputs panel configuration purchased)
Audio Options to display the Audio Options panel.
(AES67) or AES3, then click Save.

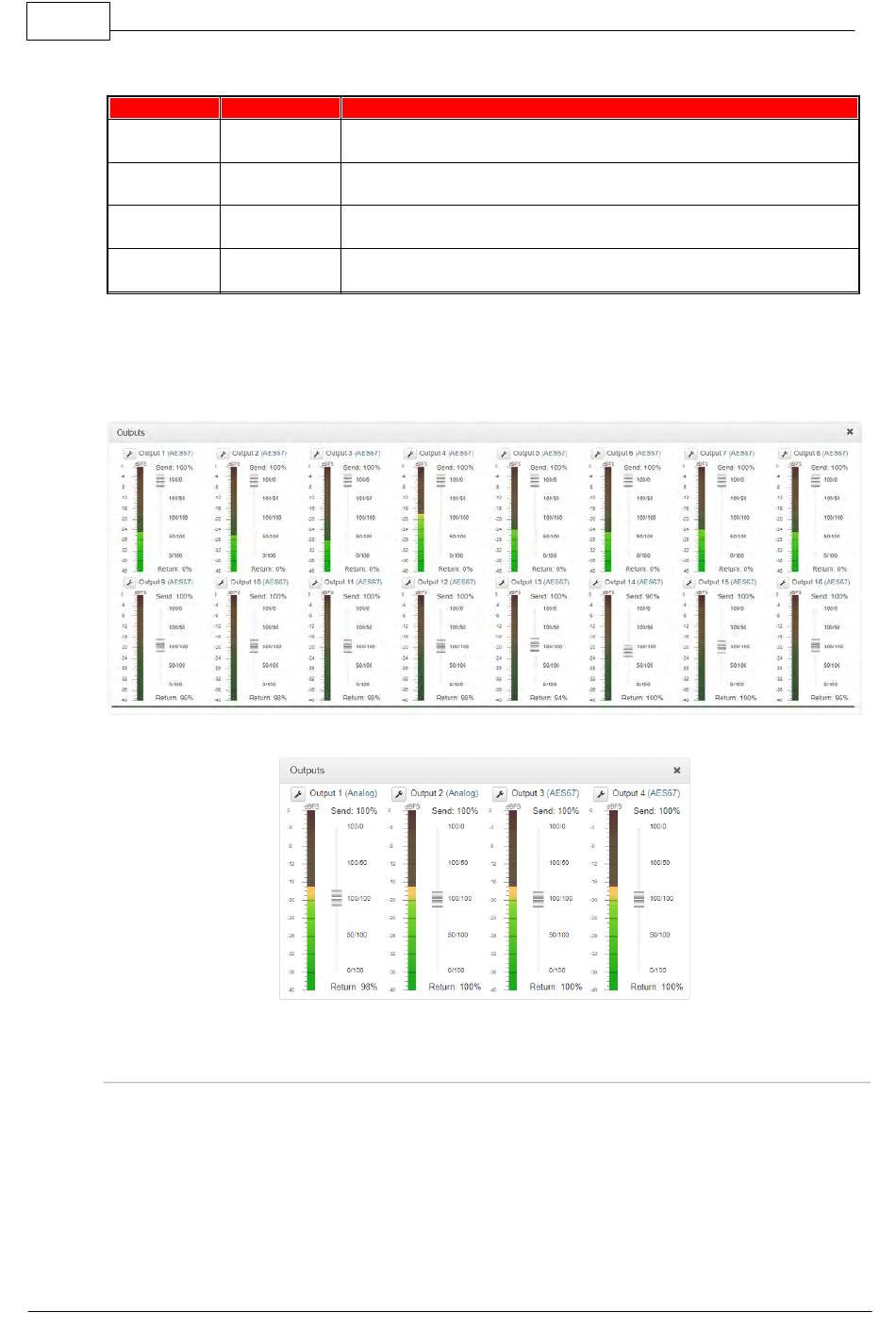

Gateway-16 Outputs panel
Gateway-4 Outputs panel
