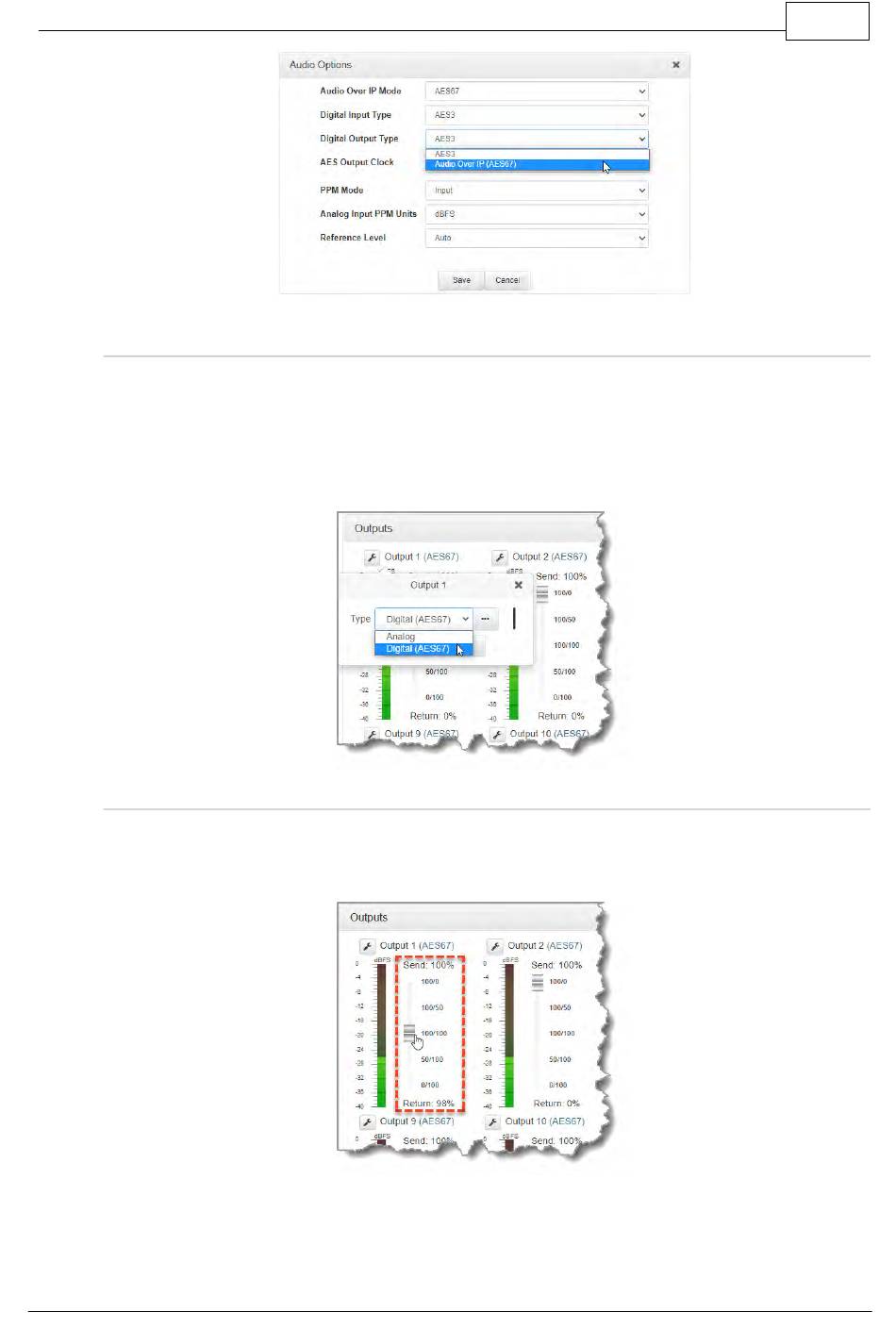

Select Output Type as Analog or Digital
To select either analog or digital output types for outputs 1 to 8 (in pairs):
1. Open the HTML5 Toolbox Web-GUI and click Audio in the Menu Bar, then click Outputs to
display the Outputs panel.
2. Click the Settings button.
3. Select from Analog or Digital.
Output Send / Return Balance
The balance between send and return audio signals fed to each output can be individually adjusted
using each output slider. This provides flexibility and the ability to feed input sources and decoded
incoming signals to outputs as required.
In many situations incoming Return decoder audio will be the only audio fed from an output,
however there may also be a requirement to mix input audio with return audio. Or input (Send) audio
may be fed directly to an output for AES67 streaming.
