Gateway and Gateway 4 Manual v1.2
31
Appendix C: Gateway 4 DB-25 Audio In/Out Pinout
Gateway 4 DB25 Analog and AES3 Audio Pinouts
In the following images:
· G = Ground
· C = Cold
· H = Hot

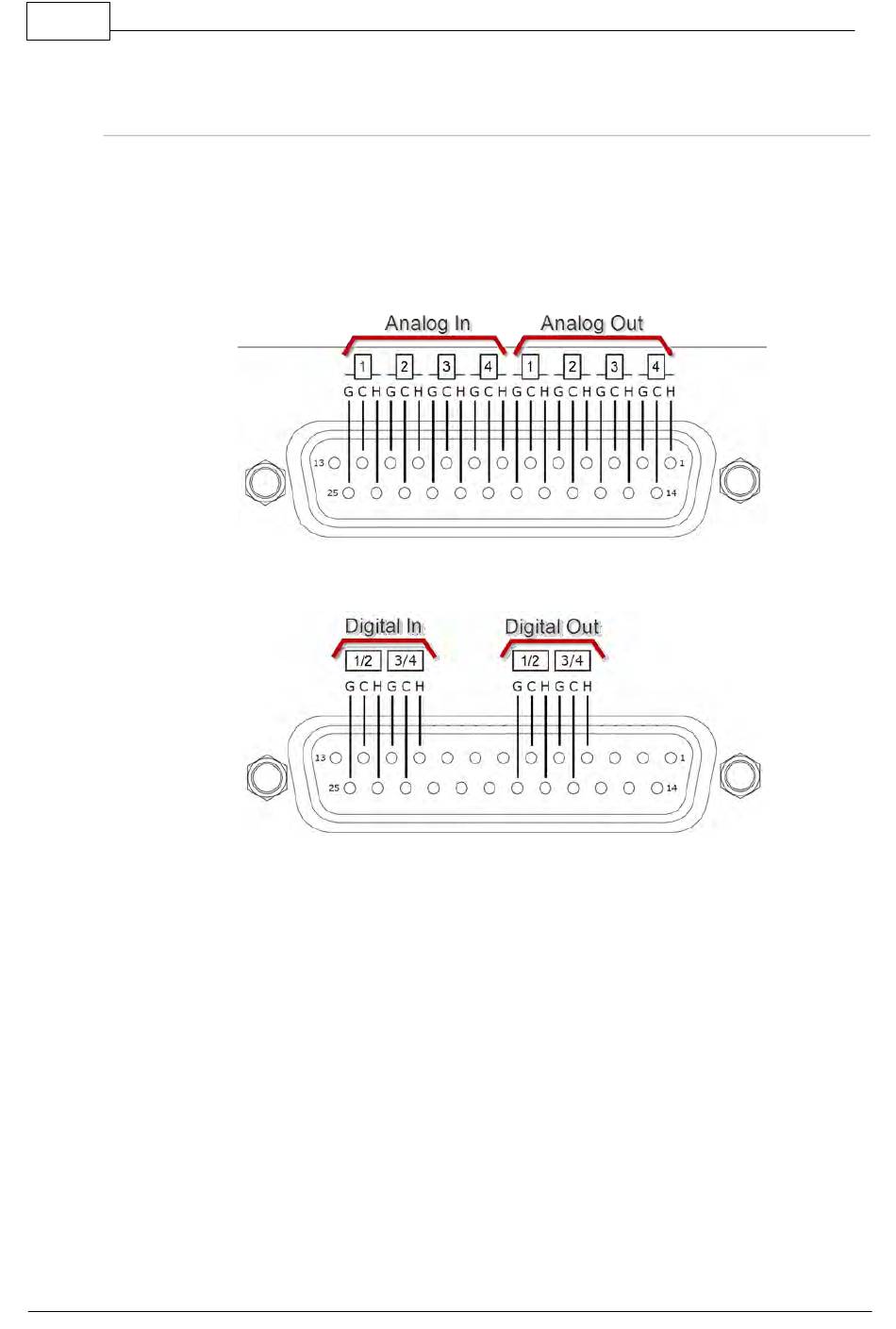

Balanced Analog DB-25 Wiring Pinouts
Digital AES3 (AES/EBU) DB-25 Wiring Pinouts
© Tieline Research Pty. Ltd. 2021
