At this point you can click Save Program and save the program with default algorithm and jitter
settings. Alternatively, click Next to confirm and specify algorithm and jitter settings for this
connection and configure backup audio settings (recommended).
Important Notes:
· The default UDP audio port when using SIP for a peer-to-peer connection is 5004 in
Tieline codecs. To contact a codec that is behind a firewall or NAT-enabled router, it is
essential that this and all other relevant ports are open and forwarded to the other device.
· Tieline codecs automatically add "sip:" to the address you enter in the Address field
when dialing, so it's not necessary to add this.

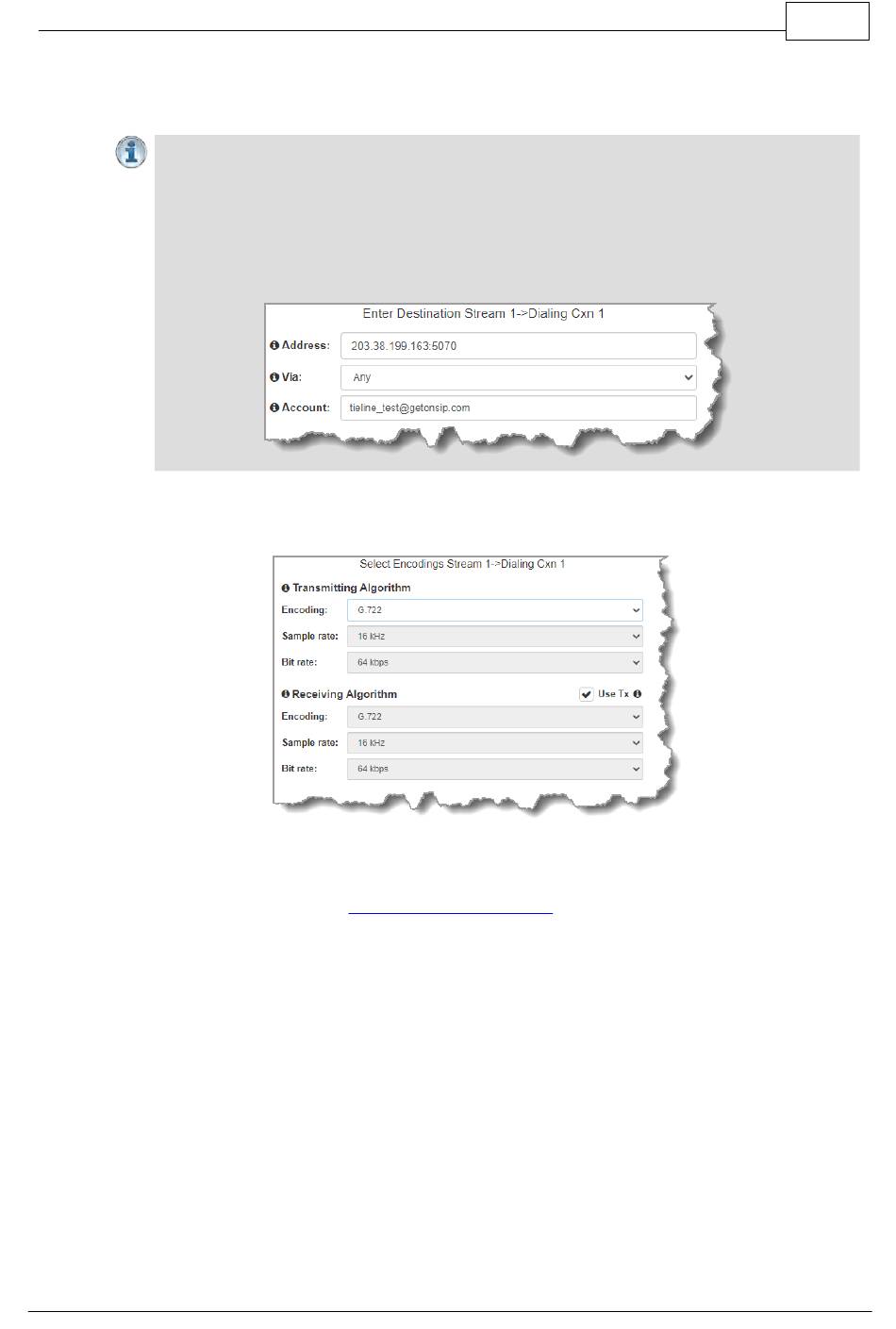

· Enter the IP address or SIP URI, then a full colon and the session port number to change
the session port from the default setting 5060.
8. Click the drop-down arrows on the right-hand side of each active drop-down menu to adjust
the Encoding, Sample rate or Bit rate parameters. Click Next to continue.
9. Click to configure:
· Auto Jitter Adapt and the preferred auto jitter setting using the drop-down arrow for Buffer
priority. It is also possible to configure the Minimum depth and Maximum depth of jitter
over the connection. See
· Alternatively, select a Fixed Buffer Level and enter the Jitter Depth, which must be
between 12ms and 5000ms depending on the algorithm you select.
· RFC-compliant FEC can also be configured if required and the percentage is configurable.
© Tieline Research Pty. Ltd. 2021
Gateway and Gateway 4 Manual v1.2
Configuring the Jitter Buffer
for more details.
167
