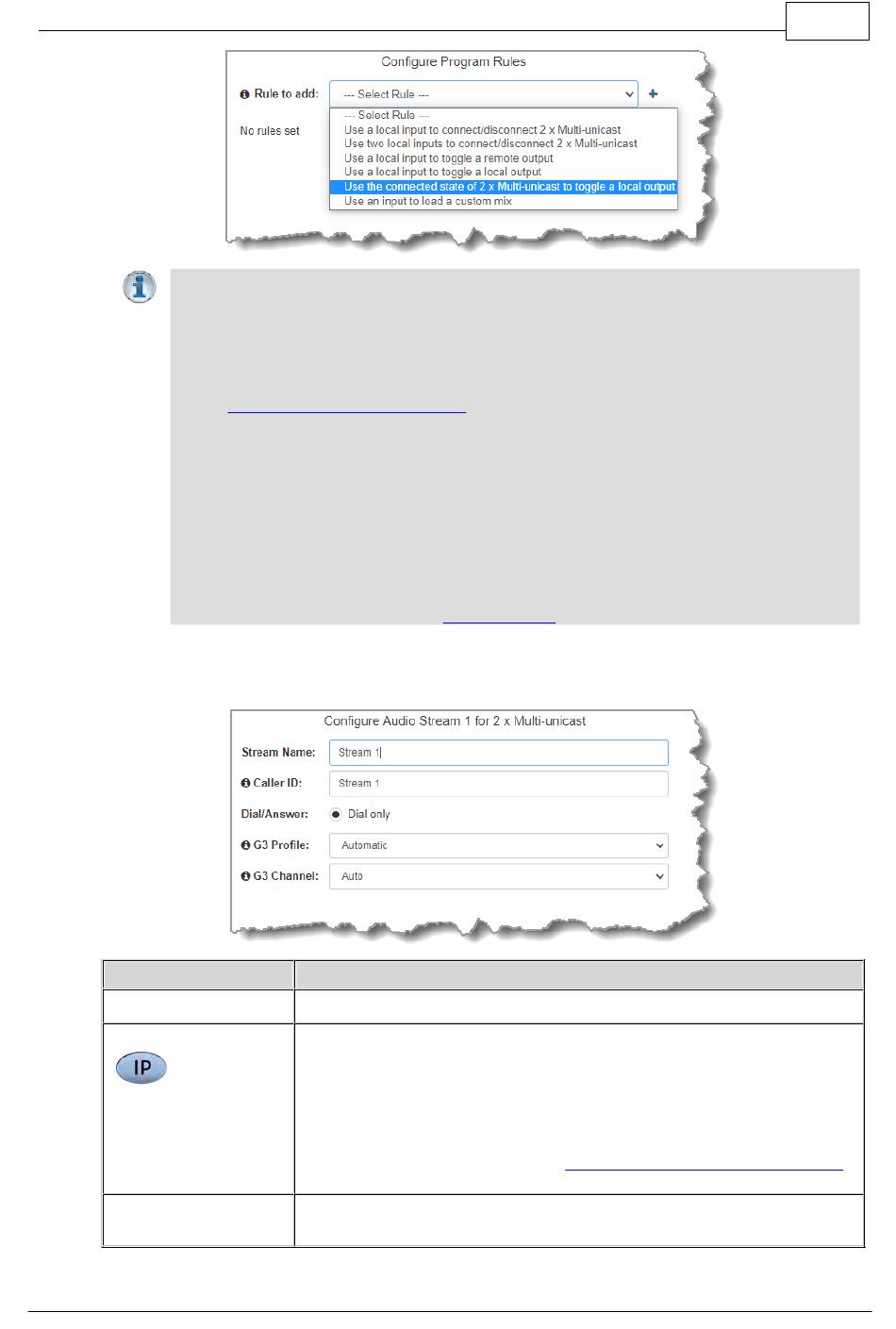

Important Notes for Rules:
· The Gateway 4 codec has 8 hardware GPIOs and 56 logical outputs, and the Gateway
8/16 has 16 hardware GPIOs and 48 logical outputs; both codecs also have 3 virtual
inputs, and 64 WheatNet Logic Inputs/Outputs. (WheatNet logic I/Os allow Tieline
WheatNet-IP enabled codecs to activate functions across a WheatNet-IP network.
WheatNet logical inputs are only available if a codec has a WheatNet-IP card installed).
See
· A non-WheatNet-IP Tieline codec can be configured to trigger a WheatNet LIO in a
Tieline WheatNet-IP codec.
· Tieline WheatNet-IP codecs require Wheatstone Razor firmware version 1.4.22 or later
to support WheatNet LIOs. In addition, the WheatNet-IP codec must have the WNet
Enable LIO checkbox selected in the Options panel of the HTML5 Toolbox Web-GUI.
· Relay reflection is not available for SIP and Multicast Client programs.
· Connection-related rules are not displayed in Answer only audio streams.
· Rules intended to activate dialing will not be valid in Answer only programs or audio
streams.
· For more details about rules see
4. Enter the Stream Name and add a caller ID. Then click Next. Note: The caller ID is used to
identify calls.
Routing Type Options:
Default
Deterministic
Line Hunt
© Tieline Research Pty. Ltd. 2021
Enabling Relays & RS232 Data
By default IP streams are routed using audio ports.
Use Answer Routes to configure deterministic routing of multiple audio
streams using SIP. Answer routes can be configured for up to 6 SIP
accounts or SIP interfaces. Then create a multiple stream answering
program and configure an Answer Route for each audio stream matching
the SIP Account or SIP Interface Answer Routes. A call received via a
particular account or interface is routed to the audio stream with a
matching audio answer route. See
calls for more information.
Create line hunt groups for multiple incoming callers on a first come, first
served basis. This is ideal for separating groups of inputs and outputs
Gateway and Gateway 4 Manual v1.2
for more info.
Creating Rules.
Answering Multiple SIP Peer-to-Peer
