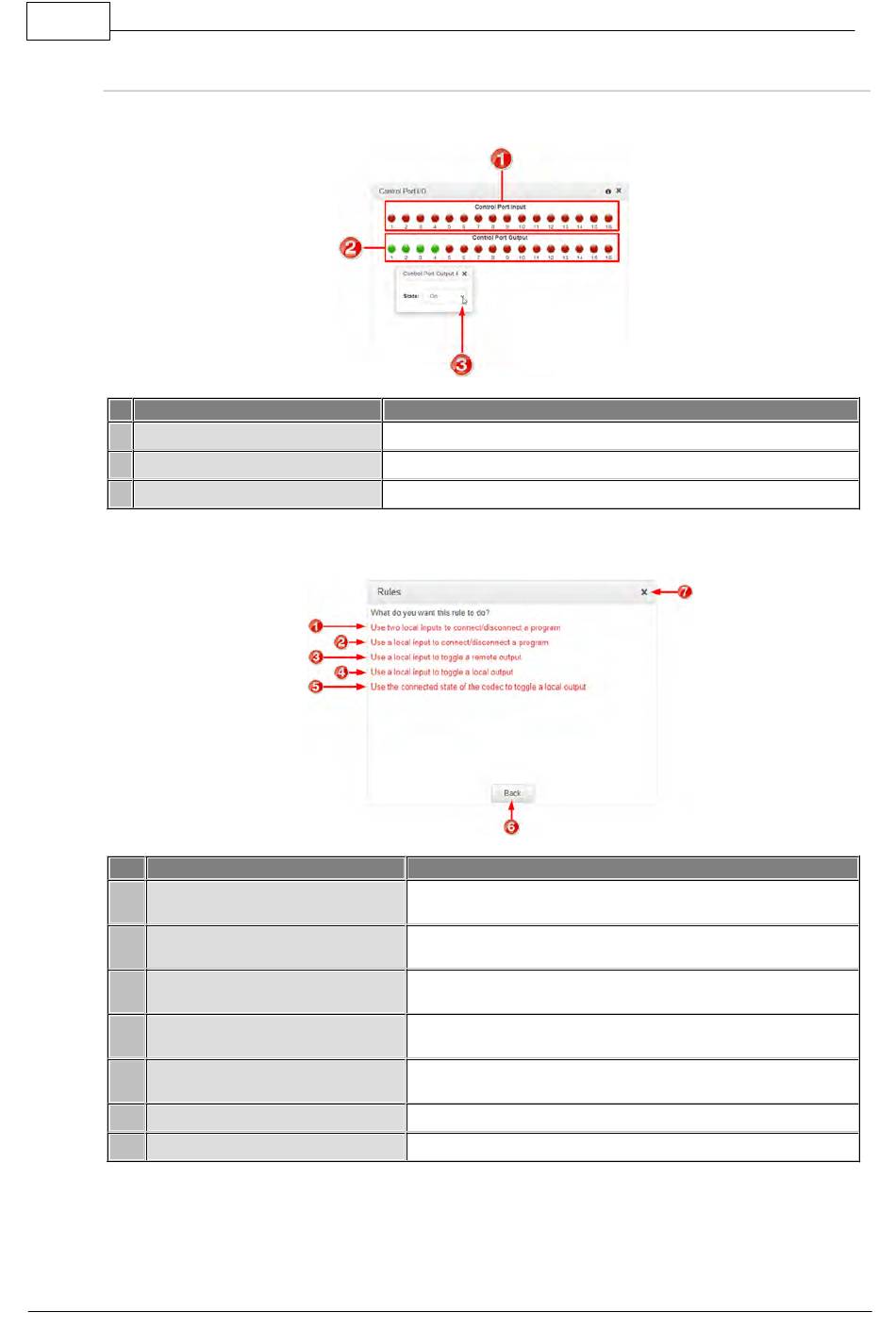

Control Menu
Control Port I/O
Feature
1 Control Port Input state
2 Control Port Output
3 State
Rules Panel
Rule
1 Use two
connect/disconnect a program
2 Use a
connect/disconnect a program
3 Use a local input to toggle a
remote output
4 Use a local input to toggle a
local output
5 Use the connected state of the
codec to toggle a local output
6 Back / Add New Rule button
7 Close button
Description
Displays the state of a control port input
Displays the state of a control port output
Click a Control Port Output to change the On/Off state
Description
local inputs to Click to configure connection and disconnection after
different relay inputs are switched ON.
local input to Click to configure connection and disconnection by
toggling an input.
Click to configure a local relay input to synchronize with
the state of a remote relay output.
Click to configure a local relay input to synchronize with
the state of a local relay output.
Click to configure a relay to toggle based on connection
status.
Click to add a new rule, or exit the rule creation function.
Click to close the panel.
