Any Tieline G5 codec dialing can display a designated Caller ID in the Connection panel. In the
following example, Remote1 has called into the codec using a specific caller ID, which is displayed
next to the Send and Return link quality connection.
23.7

Configuring Input Settings

Product
Gateway 4
Gateway 4
Gateway 4
Gateway 4
Gateway
8/16
Gateway
8/16
Gateway
8/16
Gateway
8/16

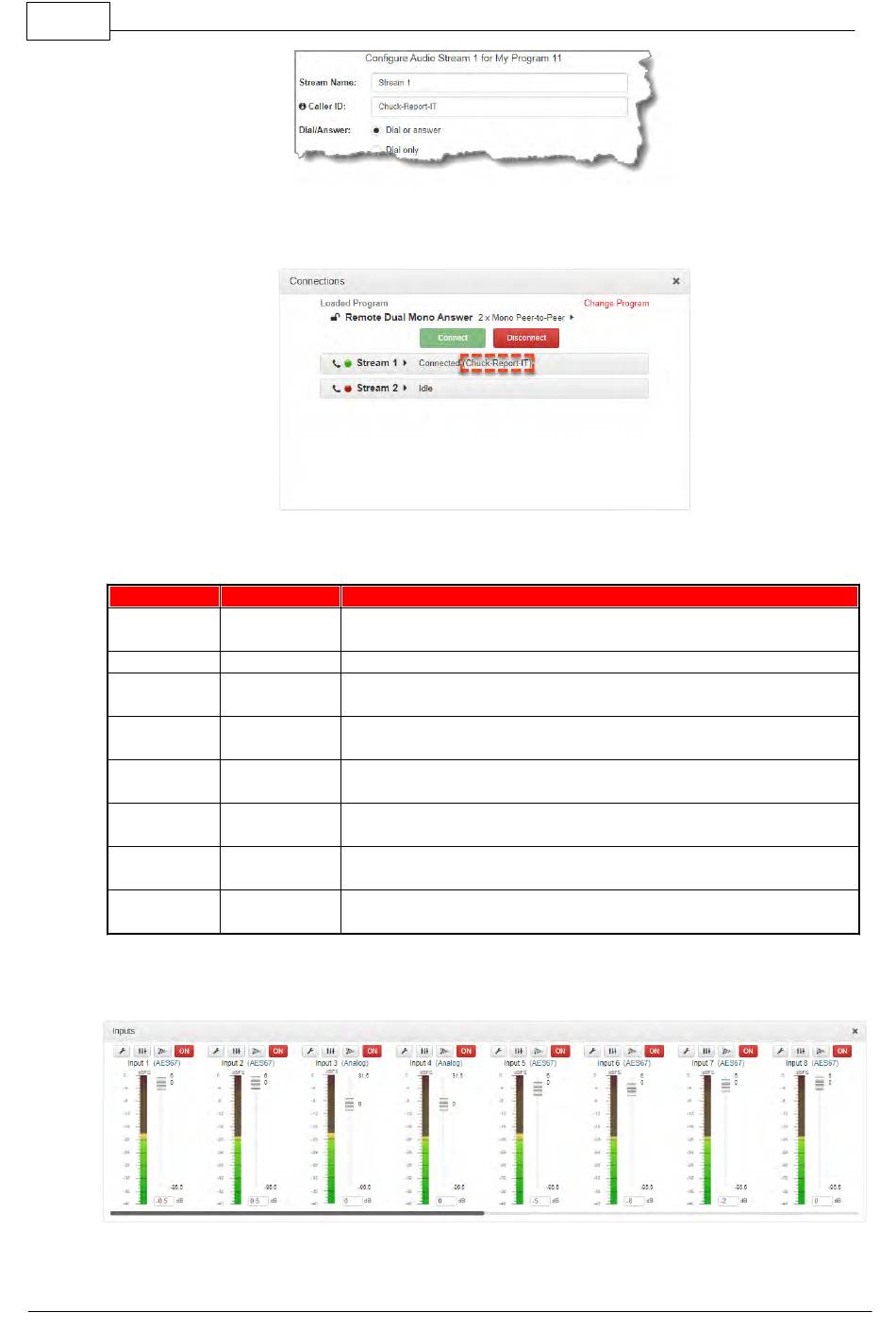

Open the HTML5 Toolbox Web-GUI and click Audio in the Menu Bar, then click Inputs to display
the Inputs panel.
Feature Notification
PPM Meters 8 PPMs on front panel display 4 channel inputs/outputs or
encoders/decoders
Inputs 4 Channels in/out
Inputs Inputs 1-4 can be configured as analog or digital inputs (AES3 or
AES67) in pairs
Web-GUI 4 inputs and PPMs displayed
Inputs panel
PPM Meters 16
inputs/outputs/encoders/decoders
Inputs 8-16
purchased)
Inputs Inputs 1-8 can be configured as analog or digital inputs (AES3 or
AES67) in pairs
Web-GUI 8 - 16 inputs and PPMs displayed (depending on codec
Inputs panel configuration purchased)
Gateway (8/16) input panel
PPMs on front
Channels In/Out (depending
panel can display
on codec configuration
